QPRO Modem
Services: Iridium Short Burst Data® (SBD®)
-
Dual Mode LTE CatM1 Global Cellular & Iridium Short Burst Data® Modem
-
Fully Programmable & Customizable
-
Integrated GNSS / GPS
-
Rugged Industrial Design – IP67 Rated for Outdoor Use
QPRO Modem
Manufacturer : Quake Global Inc.
Model : QPRO
Services: Iridium Short Burst Data® (SBD®)
-
Dual Mode LTE CatM1 Global Cellular & Iridium Short Burst Data® Modem
-
Fully Programmable & Customizable
-
Integrated GNSS / GPS
-
Rugged Industrial Design – IP67 Rated for Outdoor Use

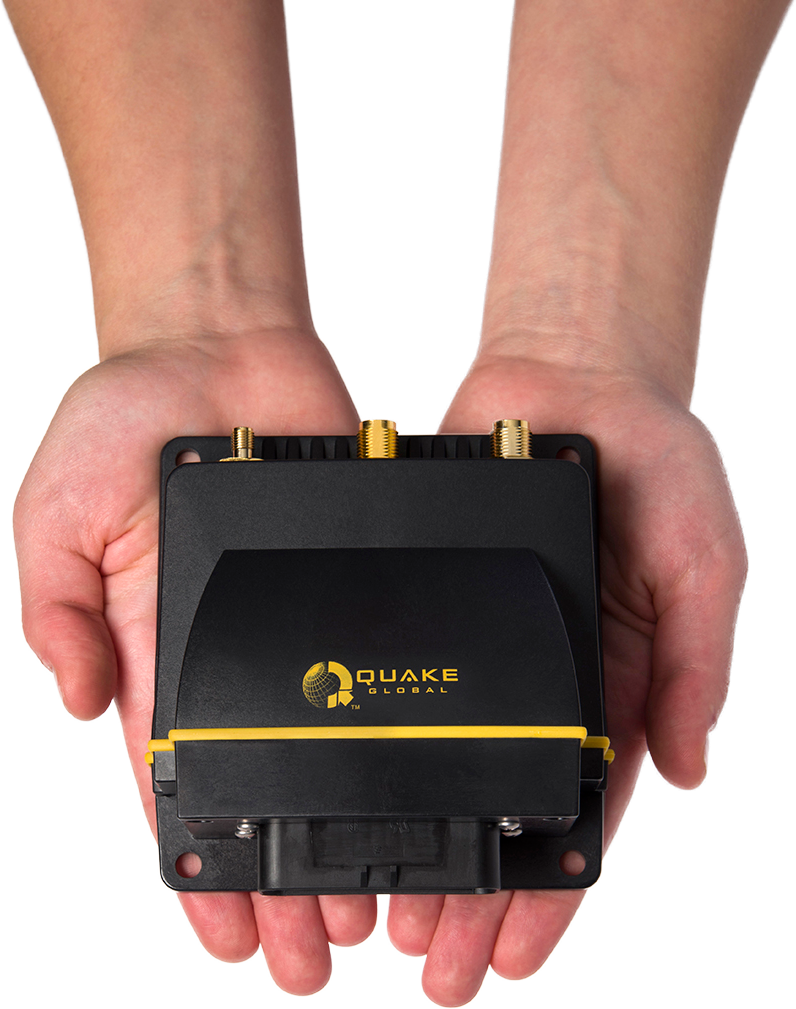

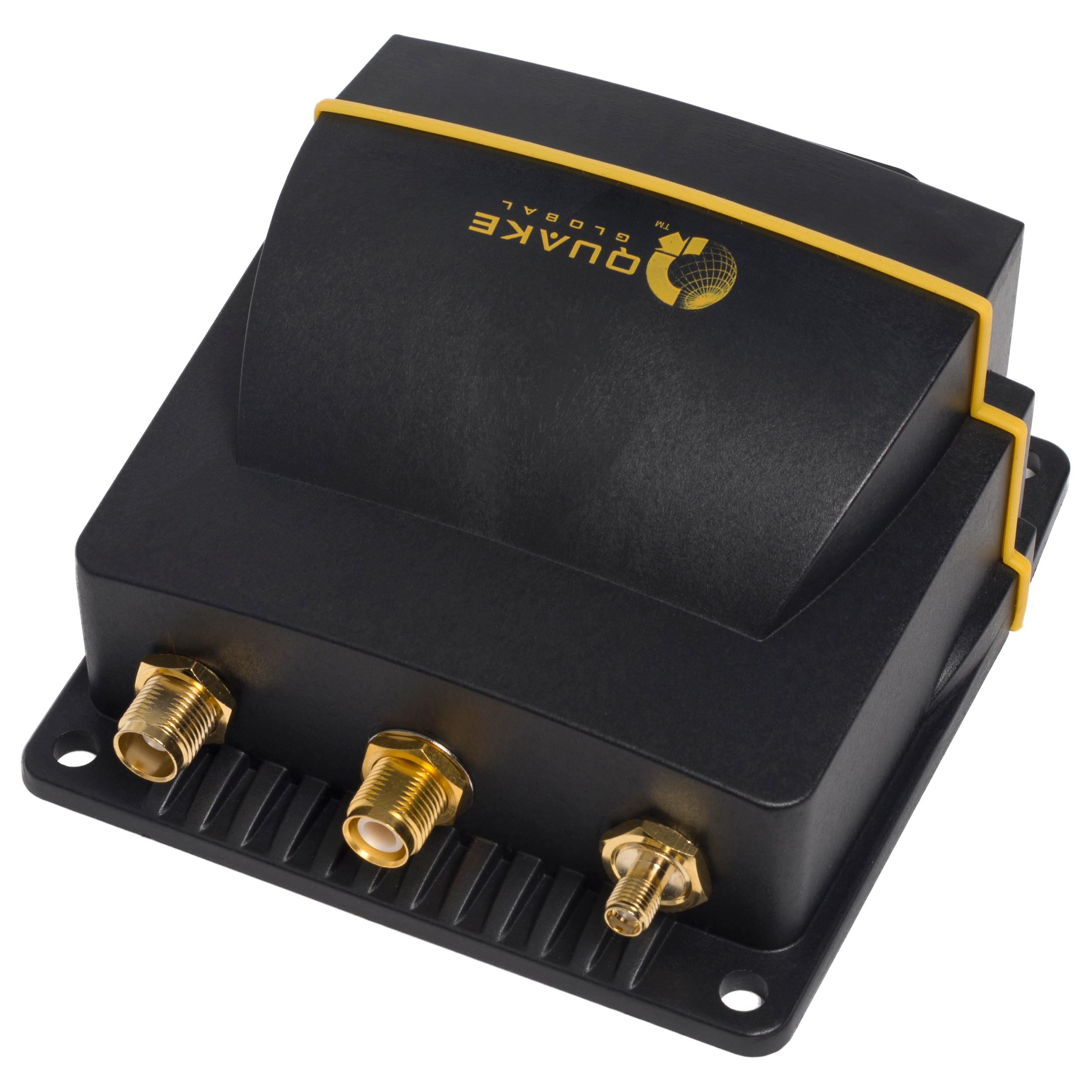

QPRO Ruggedized Dual Model Satellite & LTE Cellular Modem
The industrial-grade QPRO features cellular (LTE CatM1 Global) and satellite dual-mode network configurations and is fully programmable with onboard applications in a rugged IP67 rated enclosure.
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 119.4mm x 119.7mm x 61.9mm |
| Weight | 386 g |
| Environmental | |
| Operating Temperature Range | -40 to +85 ℃ |
| Durability Standard | J1455 |
| Ingress Protection | IP67 |
| Antenna | |
| Antenna Design | Flexible - External Antenna |
| GPS | |
| Accuracy, Positional | Rated 2.5, Practical Use 1 m |
| Accuracy, Timing | Integrated RTC (Set from Network) ns |
| Power | |
| Input Voltage Range | 9 to 32V |
| Network | |
| Satellite Coverage | Iridium® |
| Additional Networks | 2G, 3G LTE (Cat1, Cat M1/NB-IoT) |
| Streaming Data | LTE CatM1 Global |
- FCC
- PTCRB
- CE Mark
