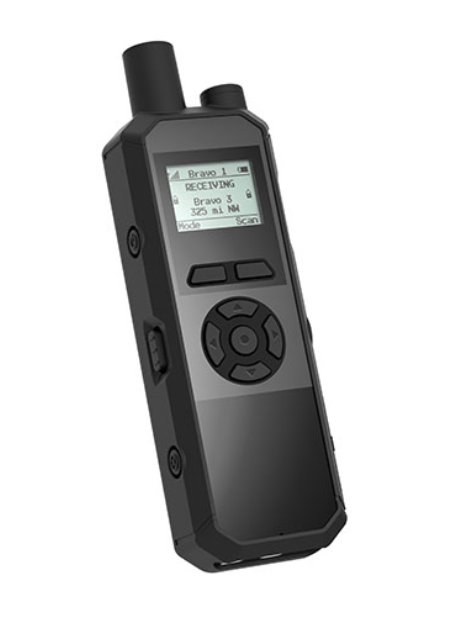

Bracer™ Tactical SatCom Radio

Manufacturer : QinetiQ Limited

  • Extreme Resilience
  • Superior Security
  • High Availability
  • Compact Carrying
  • Third Party Integration

Bracer™ Tactical SatCom Radio


Manufacturer : QinetiQ Limited

  • Extreme Resilience
  • Superior Security
  • High Availability
  • Compact Carrying
  • Third Party Integration

Built For Harsh Environments

Designed for discretion and engineered to operate in the planet’s harshest environments, it is a robust, effective and reliable commercial TacSat solution. Powered by Iridium® satellite technology, the 100% BLOS, Push-To-Talk device keeps you connected through a highly-resilient network, while end-to-end encryption protects your information and allows you to operate without constraints.

Dependable and Real-Time Communication

Encrypted GPS-based position location information offers real-time situational awareness and supports rapid decision-making.

  • Instant C2
  • Configure global coverage in seconds, so that when time is of the essence securing communication lines is simple
  • Real-Time Situational Awareness
  • GPS-based position location information offers real-time situational awareness and supports rapid decision-making
  • Emergency Alerting
  • Asset Tracking is also supported with an emergency alert function that is received in seconds by all handsets in the Talkgroup – Reducing reaction times
  • Affordability
  • Elite functionality at a fraction of the cost of military alternatives

Product Specifications and Certifications

Technical Specifications

Bracer™ Tactical SatCom Radio
Mechanical
Dimensions (L x W x H) 170mm x 76mm x 33mm
Weight 400 g
Bracer™ Tactical SatCom Radio
Environmental
Operating Temperature Range -10 to +55 ℃
Storage Temperature Range -40 to +60 ℃
Ingress Protection IP66, IP67 to 1m Immersion, IEC/EN 60529
Vibration Standard Tested to MIL-STD-810G / Def Stan 00-035 for Wheeled/Tracked Operation and Helicopter Transportation
Bracer™ Tactical SatCom Radio
Antenna
Type SMA Connection for External Iridium Antenna
Bracer™ Tactical SatCom Radio
RF Interface
Frequency Range 1616 - 1626.5 MHz
Bracer™ Tactical SatCom Radio
Battery
Capacity 600 mAh
Battery Type Lithium Ion
Charge Time 3 hr
Bracer™ Tactical SatCom Radio
Power
Power Supply Internal Rechargeable Li-ion Battery Pack
Bracer™ Tactical SatCom Radio
User Experience
Screen LCD Display, Variable LED Backlight

Certifications

  • CE
  • FCC
  • UL

Bracer™ Tactical SatCom Radio

Encrypted GPS-based position location information offers real-time situational awareness and supports rapid decision-making.
