SHOUT Nano
Manufacturer : NAL Research
Model : 433-92681-001
-
Small Form Factor
-
Ultra-Low Power Consumption
-
Two-Way Communication
-
Real-Time Reporting

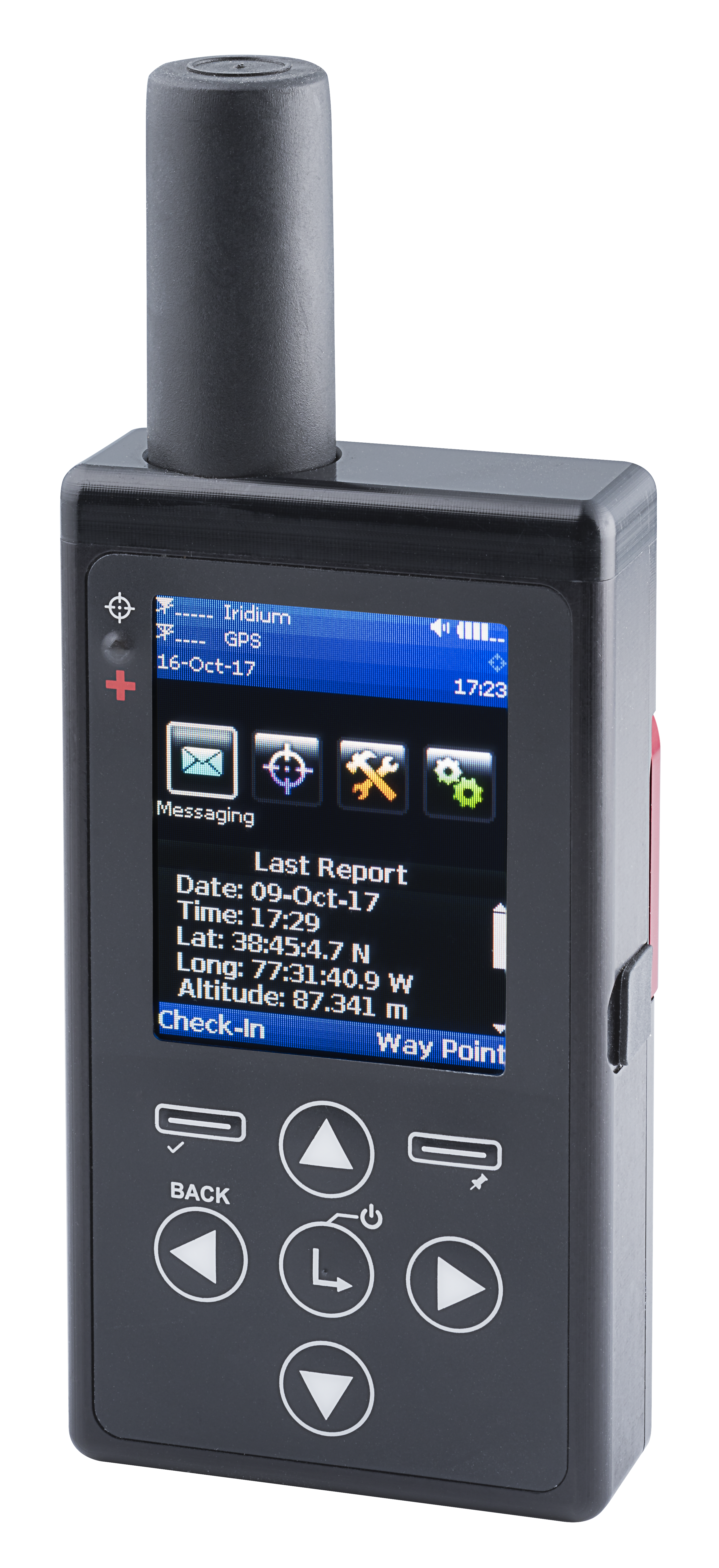

Pocket-Sized, Self-Contained Satellite Tracker
The SHOUT Nano is a handheld, global, two-way satellite messaging and personal tracking device. It utilizes the Iridium® satellite network’s Short Burst Data® (SBD®) service to provide location information determined by a GPS receiver, two-way inbound and outbound status, text messaging, and emergency/alert notifications. The SHOUT Nano has an internal 1.95 A-Hr rechargeable Li-Ion battery, a high-resolution LCD screen, and a 911 alert button for emergency situations. The SHOUT nano measures 4.0” x 2.2” x 0.8” and weighs ~6.5 ounces, ideal for easy concealment.
The SHOUT Nano
Designed with ultra-low power consumption electronics, the SHOUT Nano draws less than 35-micro-A during sleep and can wake up from sleep to send a position report hourly for up to two months (~1,200 reports). It supports the transmission of free text, canned text, and a combination of both.
- Messaging Capabilities
-
Supports the transmission of free text, canned text, or a combination of both via four different sets of on-screen keyboards
- Normal Tracking
-
Programmed to automatically wake up and send a position report at a set interval (ranging from continuous to once every seven days)
- Encryption
-
Data is packaged in either standard or 256-bit AES encrypted format. Data can also be sent in encrypted PECOS formats (including Brevity Codes)
- Small Form-Factor
-
Conveniently small in size for covert and/or convenient personnel tracking
- Available for Commercial or DoD
-
The device can be programmed for either the DoD or commercial Iridium Gateways
- Quick Check-In
-
Allows a quick check-in message to be sent using a single soft key
- Emergency Alert
-
Sends alerts to a designated monitoring center after completion of a 911 activation sequence. The monitoring center and the user can then communicate to define further specifics of the emergency
- Waypoint Tracking
-
Sends and/or saves waypoints for later retrieval
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 101mm x 56mm x 20mm |
| Weight | 184.3 g |
| Environmental | |
| Operating Temperature Range | -20 to +60 ℃ |
| Operating Humidity Range | < 75 % RH |
| Durability Standard | MIL-STD-810G, MIL-STD-461G, Rapid Decompression and Explosive Atmosphere |
| RF Interface | |
| Frequency Range | 1616 to 1626.5 MHz |
| GPS | |
| Accuracy, Positional | 2.5 m |
| Battery | |
| Battery Type | 1.95 A-Hr Rechargeable Li-Ion Battery |
| Power | |
| Input Voltage Range | 2.7 to 5.5 VDC |
| User Experience | |
| Screen | High Resolution Color LCD |
