Hecto

Model : HECTO

  • No SIM Card
  • Rugged and Dependable Design
  • Supports RS232 Serial Connection
  • Capable of Voltage Range from +8 to +30 VDC

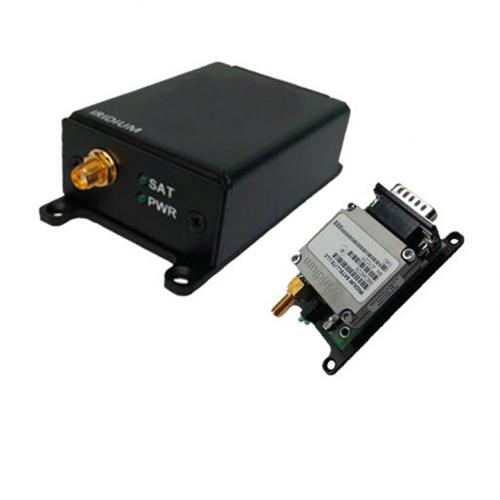

Metocean HECTO 9602N MODEM Product image
Metocean HECTO 9602N MODEM Product image

Hecto


Model : HECTO

  • No SIM Card
  • Rugged and Dependable Design
  • Supports RS232 Serial Connection
  • Capable of Voltage Range from +8 to +30 VDC

Hecto Satellite Modem

The Hecto is an Iridium® certified, HALT tested full SBD transceiver package, integrating the incredibly dependable Iridium 9602N transceiver. It allows Short Burst Data® (SBD®) connectivity to the Iridium satellite network and does not support voice, circuit-switched data (CSD), or short message service (SMS). The HECTO can be controlled by any data terminal equipment (DTE) capable of sending standard AT commands via an RS232 serial port. The Hecto can get you to market faster in a wide range of applications, including asset tracking, remote area communications, and industrial controls and monitoring.

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 88.9 x 50.29 x 27.3 mm
Weight 141.7 g
Iridium Embedded Technology Iridium 9602 Module
Environmental
Field Label Field Value
Operating Temperature Range -40 to +185 ℃
Operating Humidity Range ≤ 75% % RH
Storage Temperature Range -40 to +185 ℃
Storage Humidity Range ≤ 93% % RH
Power
Field Label Field Value
Input Voltage Range +8 to +30 VDC
Input Voltage Ripple < 40 mVpp
