McQ CONNECT™

Manufacturer : McQ Inc.

Model : CNT-K1001

  • 22 kbps Uplink, 88 kbps Downlink
  • Global Coverage-Data and Phone Link
  • COMSAT Iridium Certus® Global Service

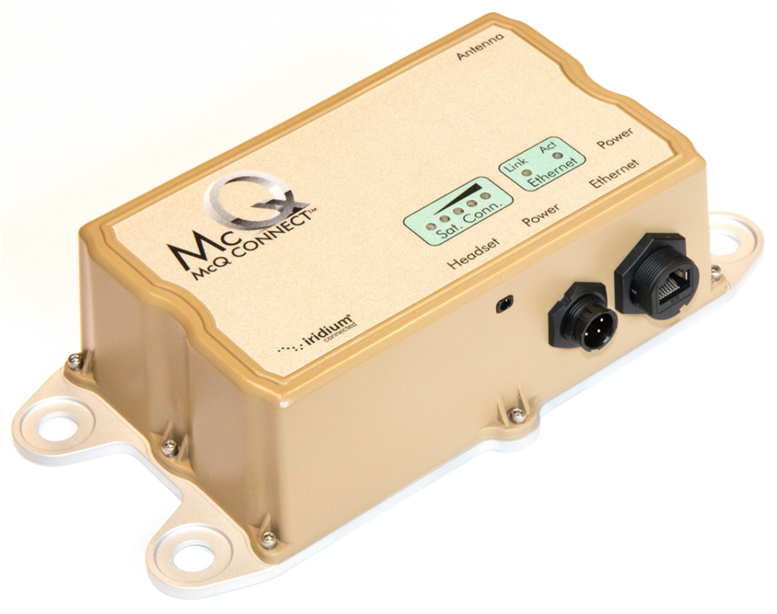

McQ Connect Product Image

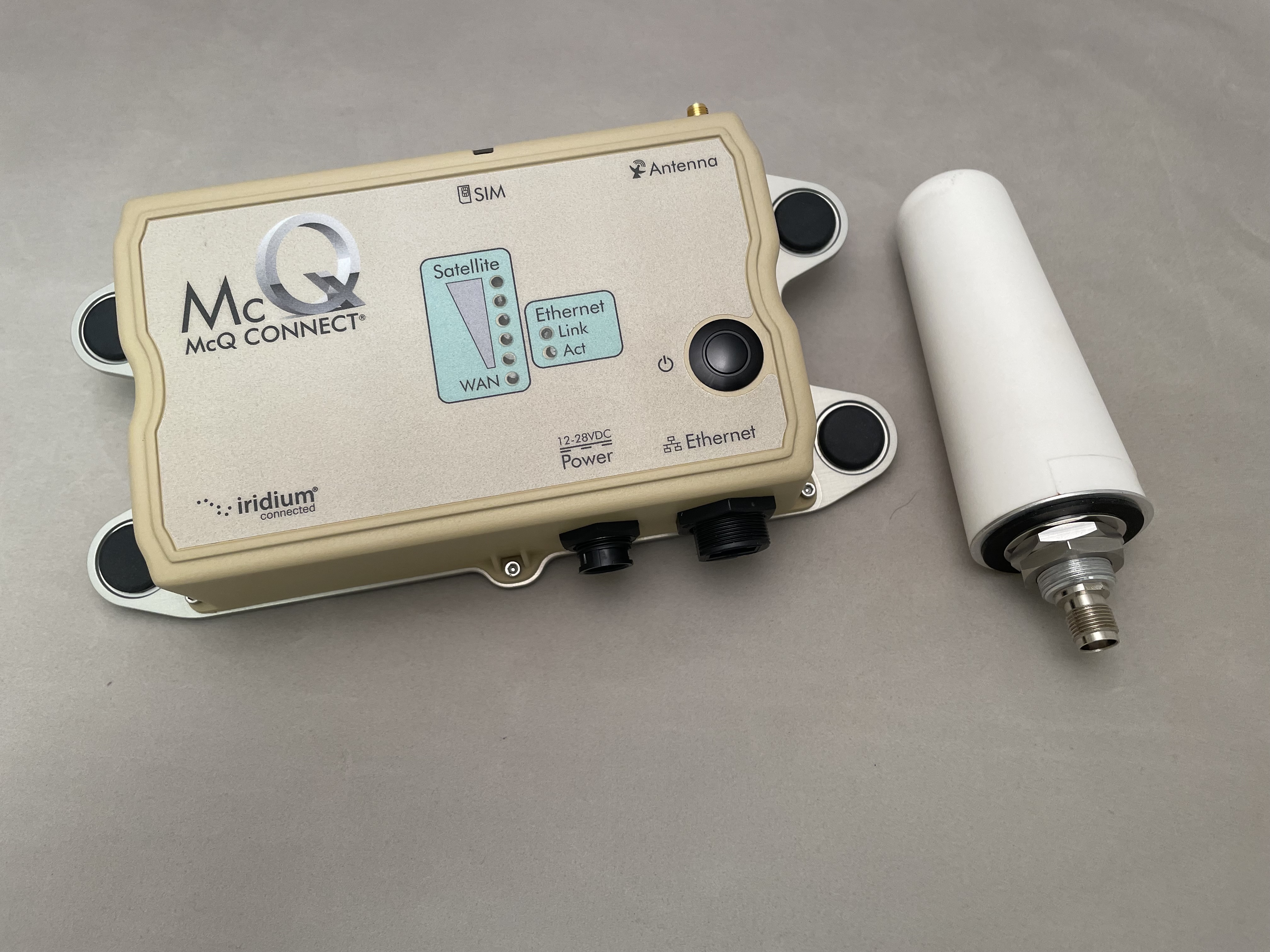

McQ Connect Product Image

McQ CONNECT™


Manufacturer : McQ Inc.

Model : CNT-K1001

  • 22 kbps Uplink, 88 kbps Downlink
  • Global Coverage-Data and Phone Link
  • COMSAT Iridium Certus® Global Service

Connect to the World!

Your remote data and system application information is now available to users and product solutions from any place on the earth. Mobile platforms and remote sites can communicate over the Iridium® Satellite Network with this small modem anytime, anywhere. Real time delivery and receipt of information means you can instantly feed information to your application via a Secure Internet Protocol “Cloud” and command and control your remote product with very low latency. The McQ CONNECT™ is battery or wall powered in a rugged IP 67 Housing for use in any environment. Low cost data plans make the McQ CONNECT an affordable solution for your global information requirements.

Small Rugged Satellite Hotspot

  • McQ CONNECT Modem
  • 22 kbps Uplink, 88 kbps Downlink
  • Connects Users/Applications in Real-time
  • Data, Command and Control, Live Imagery, Phone Coordination Link
  • Global Coverage-Data and Phone Link
  • Small. Portable. Rugged
  • IP67 Rugged Housing, -40° to + 65° C
    Small Maxtena Antenna, 9 to 18 VDC

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 203.2 x 127 x 38.1 mm
Weight 1000 g
Environmental
Field Label Field Value
Operating Temperature Range -40 to +60 ℃
Ingress Protection IP67
Antenna
Field Label Field Value
Type Maxtena Antenna 9 to 18 VDC
Power
Field Label Field Value
Input Voltage Range 9 - 18 VDC
Broadband
Field Label Field Value
Data Speed Uplink (UL) 22 Kbps
Data Speed Downlink (DL) 88 Kbps
