LT-3100 Satellite Communications System

Manufacturer : Lars Thrane A/S

Model : LT-3100

  • Voice and Data Capabilities
  • Provides Voice, SMS, Data, Vessel Tracking, and Other Iridium Services
  • ruly Global Coverage Provided by the Iridium® Satellite Network

LT-3100 Satellite Communications System


Manufacturer : Lars Thrane A/S

Model : LT-3100

  • Voice and Data Capabilities
  • Provides Voice, SMS, Data, Vessel Tracking, and Other Iridium Services
  • ruly Global Coverage Provided by the Iridium® Satellite Network

Built for Demanding and Rough Environment at Sea

The LT-3100 Satellite Communications System is a maritime fixed Iridium satellite phone from Lars Thrane A/S. The LT-3100 system is designed for the professional market (deep sea, fishing, and workboats), but can be used for the leisure market as well. The LT-3100 system meets all standards and certification requirements needed for worldwide maritime satellite communication equipment.

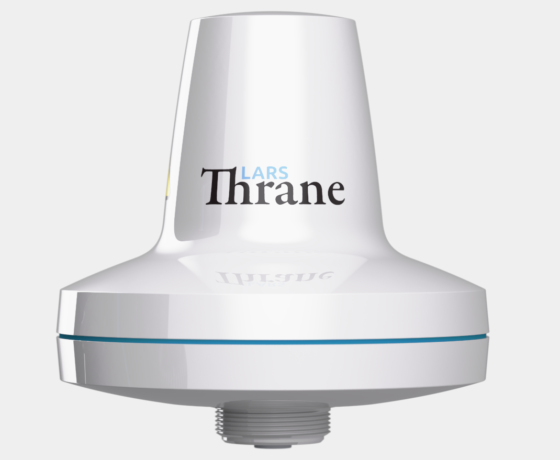

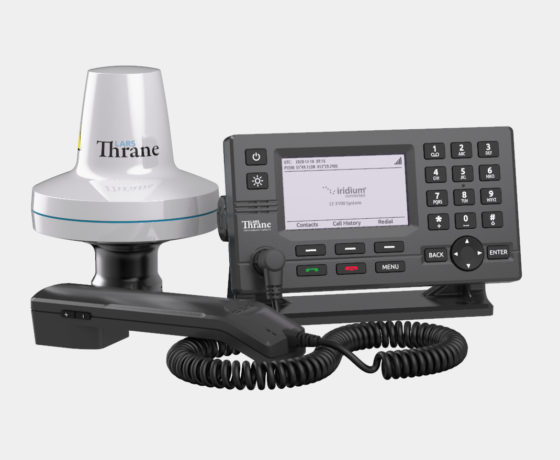

The LT-3100 system has voice and data capabilities with truly global coverage. The LT-3100 system consist of a control unit, handset unit, and antenna unit. A single cable solution connects the control unit with the antenna unit. Using a standard coaxial cable, up to 500 meters of separation between the units can be obtained, giving freedom to mount the antenna in the best possible location, with free line of sight to the satellites.

Features

The LT-3100 system can be used for crew calling or as back-up satellite communication product. The LT-3100 system provides voice, SMS, data, vessel tracking, and other Iridium services with competitive airtime rates, making it the perfect satellite communication product on board any vessel.

  • Performance
  • Voice and data capabilities with Truly global coverage
  • Flexible
  • A single cable (up to 500 meters) solution connects the control unit with the antenna unit, giving freedom to mount the antenna in the best possible location
  • Citadel Solution
  • Part of the anti piracy solution to increase safety against pirates and better monitor the coastline
  • Easy Installation
  • Single Antenna Cable Solution
  • Voice, SMS, SBD, and Modem Data
  • High-performance GNSS/GPS Receiver
  • Bluetooth for Private Area Network (PAN)
  • Built-in Webserver
  • Vessel Tracking (SBD, SMS, and E-mail)
  • Remote Management of Vessel tracking

Product Specifications and Certifications

Technical Specifications

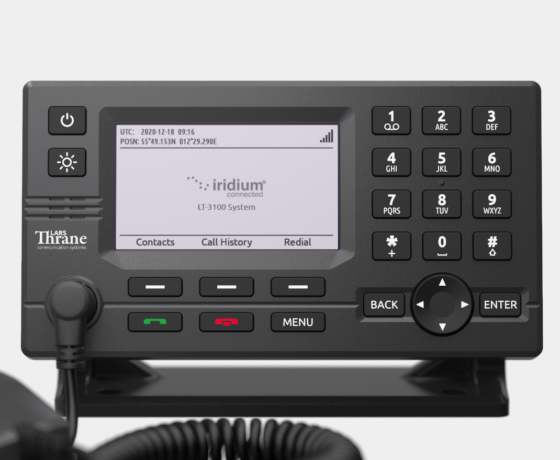

LT-3110 Control Unit
Mechanical
Dimensions (L x W x H) 120.0mm x 224.0mm x 70.0mm
Weight 658 g
LT-3110 Control Unit
Environmental
Operating Temperature Range -15 to +55 ℃
Ingress Protection IP32

Certifications

  • LT-3100 EU Type Certificate RED
  • LT-3100 RMRS Certificate
  • Maritime CE
  • FCC
  • IC
  • RCM
  • RoHS 2

LT-3100 Satellite Communications System

The LT-3100 system can be used for crew calling or as back-up satellite communication product. The LT-3100 system provides voice, SMS, data, vessel tracking, and other Iridium services with competitive airtime rates, making it the perfect satellite communication product on board any vessel.
