LT-4100L Satellite Communications System For Land
Manufacturer : Lars Thrane A/S
Services: Iridium Certus® 100 | Iridium Messaging Transport | Voice Calling
-
2 x High-Quality Voice Channels
-
IP-data: 22 kbps (up) / 88 kbps (down)
-
High-performance GNSS/GPS receiver
-
Single antenna cable solution (up to 500m)
-
Firewall & user authentication for high level of security
LT-4100L Satellite Communications System For Land
Manufacturer : Lars Thrane A/S
Services: Iridium Certus® 100 | Iridium Messaging Transport | Voice Calling
-
2 x High-Quality Voice Channels
-
IP-data: 22 kbps (up) / 88 kbps (down)
-
High-performance GNSS/GPS receiver
-
Single antenna cable solution (up to 500m)
-
Firewall & user authentication for high level of security
The SATCOM Solution For Fixed Installations

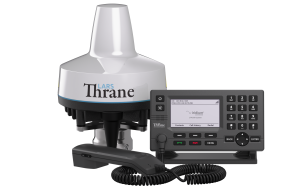

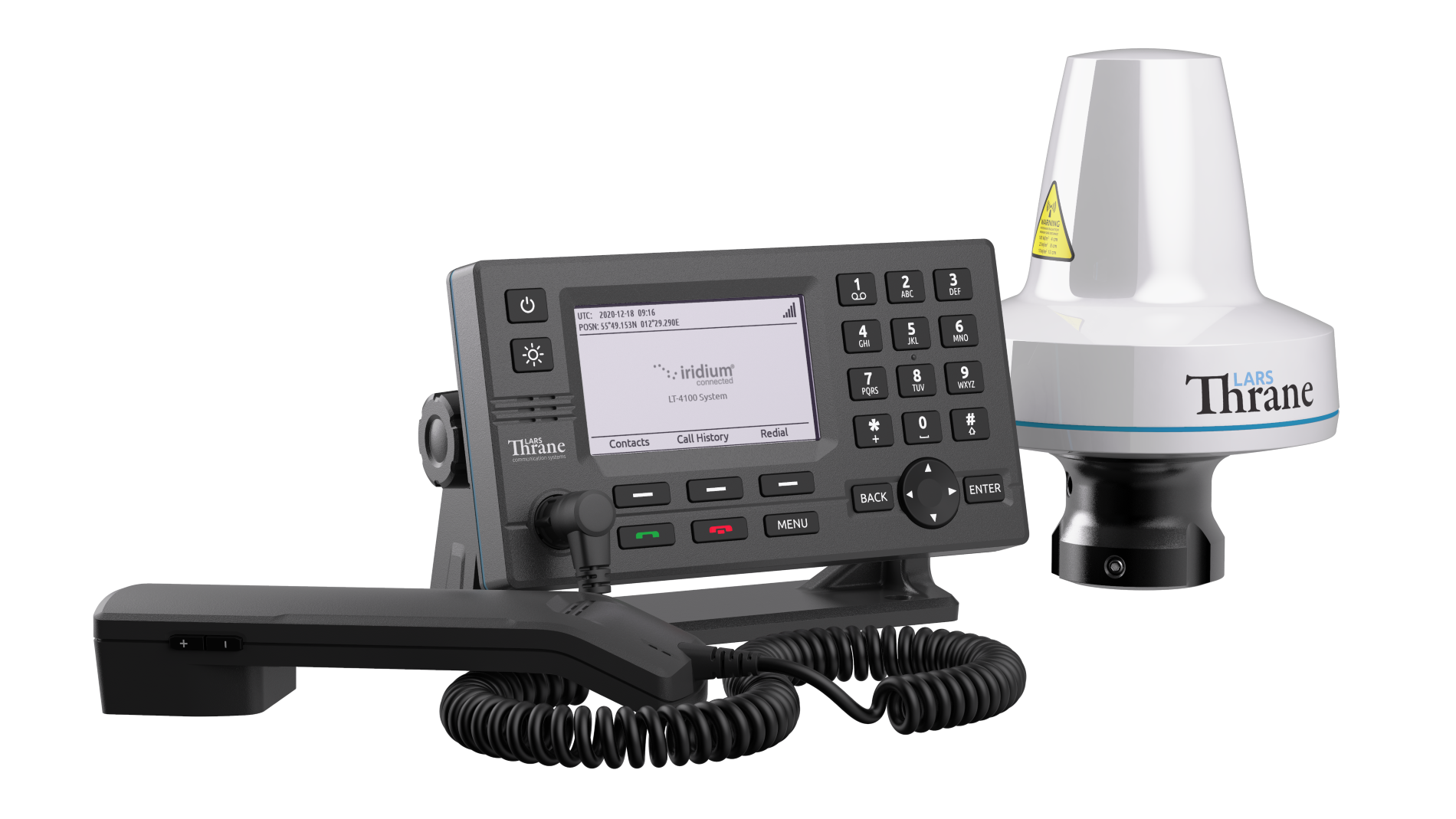

The LT-4100L Satellite Communications System is a LandMobile satellite communication product from Lars Thrane A/S—designed for fixed installation only. The system has voice and data capabilities with truly global coverage over the Iridium® Network. The LT- 4100L system consists of a control unit, antenna unit, handset, and cradle—and offers two high quality voice channels and IP-data 22 kbps (up) / 88 kbps (down), making it the perfect SATCOM communication product for any fixed installation.
Features
- 2 x Voice Channels (high quality)
-
Two voice calls can be simultaneously active if they are run on different voice lines. The system can be set up to use one or two voice lines. The voice lines are configurable and can be set up to cover multiple phones.
- IP-Data: 22 kbps (up) / 88 kbps (down)
-
The system has built-in IP data which can reach max speeds of 22 kbps (up) and 88 kbps (down). Allowing easy access to a stable data connection. Data can be set to Always On or set to Manual Start/Stop for ease of use.
- Single Antenna Cable Solution
-
A single coaxial cable connects the control unit with the antenna unit. Using a standard coaxial cable, up to 500m of separation between the units can be obtained—giving freedom to mount the antenna unit in the best possible location with free line of sight to the Iridium satellites.
- Support For External SIP Handsets
-
Supports external SIP PABX and SIP handsets. Configure up to eight external SIP handsets for ease of use.
- Firewall & User Authentication
-
Built-in outgoing firewall allows the user to configure the system to allow only specific network traffic. This feature permits the user to block outgoing network traffic so that IP data is only used for warranted actions. The system has built in user authentication—ensuring a high level of security.
- Web Server For Config & Maintenance
-
Built-in Web server with user authentication allows easy configuration and maintenance.
Product Specifications and Certifications
Mechanical | |
---|---|
Iridium Embedded Technology | Iridium Certus 9770 Module |
General | |
Control Unit, Weight | 0.67 kg (1.48 lbs) |
Control Unit, Dimensions | 224.0mm x 120.0mm x 70.0mm |
Control Unit, Temperature, Operational | -15°C to +55°C (+5°F to +131°F) |
Control Unit, IP Rating (Dust & Water) | IP32 |
Control Unit, Input Power | 12-24 VDC (2.0-1.0 A) |
Antenna Unit, Weight | 1.39 kg (3.05 lbs) |
Antenna Unit, Dimensions | 182mm x Ø162mm |
Antenna Unit, Temperature, Operational | -40°C to +55°C (-40°F to +131°F) |
Antenna Unit, IP Rating (Dust & Water) | IP67 |
- Iridium Certification
- CE
- FCC
- ISED
- RED
- RoHS 2
