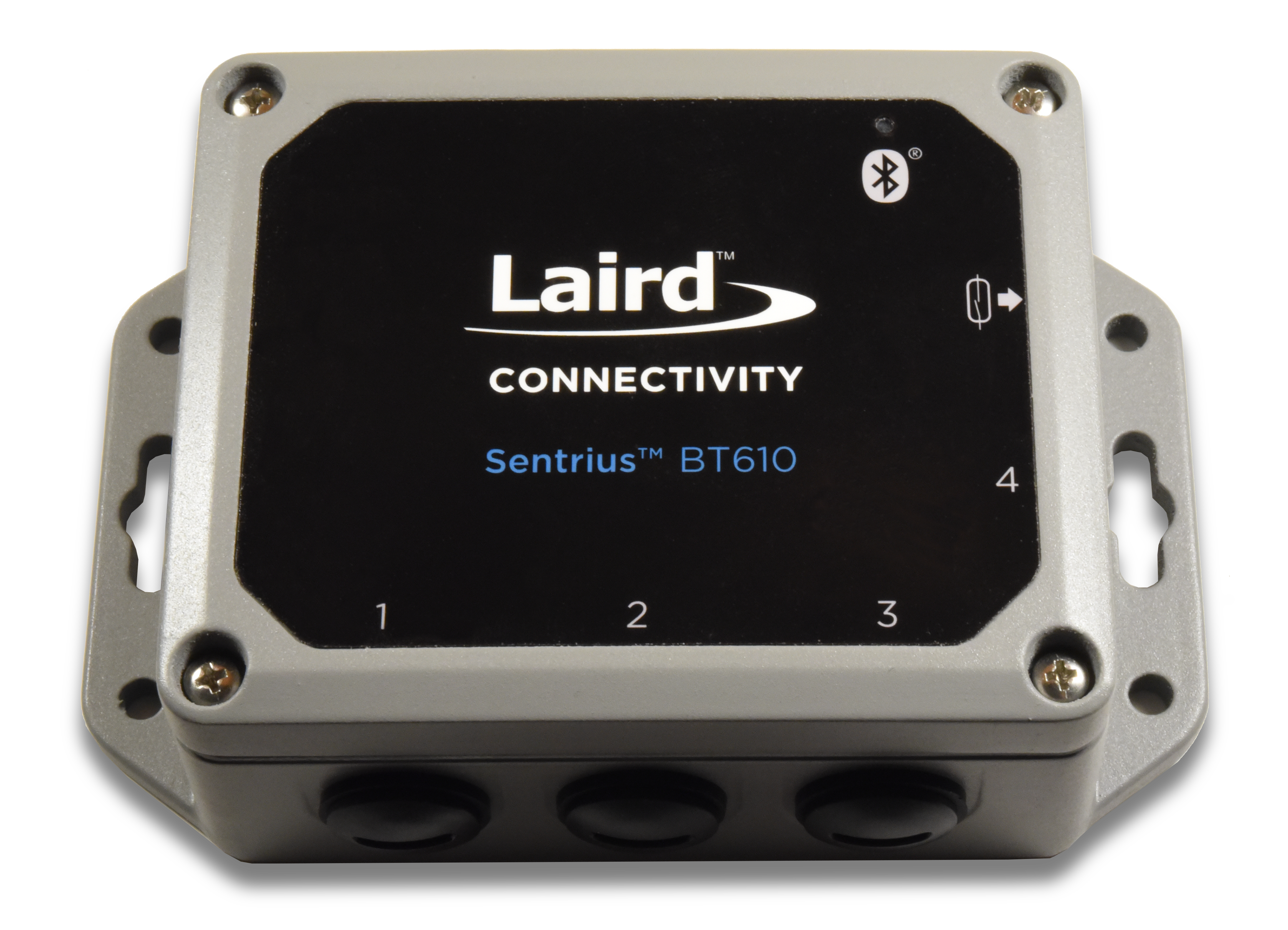

Sentrius™ BT610 Sensor For Iridium Edge® Solar

Manufacturer : Laird Connectivity

  • Open development, Long Range I/O sensor with Bluetooth® 5.0 for industrial monitoring

  • Multiple sensor interfaces (digital, analog, I2C/SPI, UART) for versatile design options

  • Fits a variety of applications as a standalone product or coupled with off-the-shelf sensors

  • Connects up to four thermistors, three passive AC current sensors, or a combination of
    two ultrasonic and/or pressure sensors

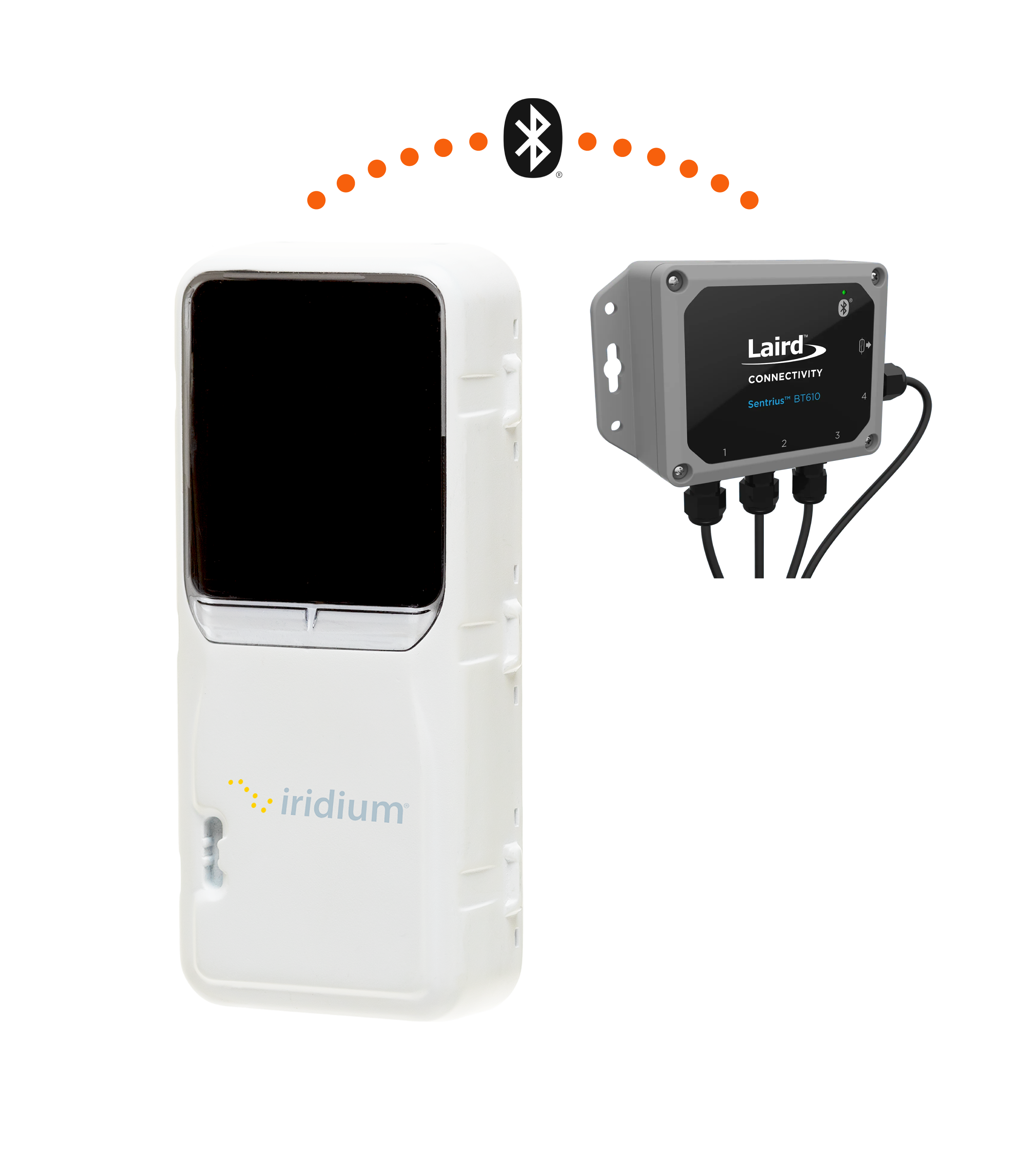

  • Out-of-the-box compatibility with Iridium Edge Solar gateway

Sentrius™ BT610 Sensor For Iridium Edge® Solar


Manufacturer : Laird Connectivity

  • Open development, Long Range I/O sensor with Bluetooth® 5.0 for industrial monitoring

  • Multiple sensor interfaces (digital, analog, I2C/SPI, UART) for versatile design options

  • Fits a variety of applications as a standalone product or coupled with off-the-shelf sensors

  • Connects up to four thermistors, three passive AC current sensors, or a combination of
    two ultrasonic and/or pressure sensors

  • Out-of-the-box compatibility with Iridium Edge Solar gateway

Robust, Long-Range Connectivity

The Sentrius BT610 I/O Sensor embodies the experience gained from developing the world’s longest-range Bluetooth sensors. BT610 features full Bluetooth 5.0 capability with LE Coded PHY configuration, quadrupling the maximum signal range without increasing power consumption.

Extended signal reach, large-capacity battery, and multiple industrial sensing inputs make Sentrius BT610 an ultimate wireless node for complex equipment monitoring solutions, such as HVAC monitoring, tank monitoring, or three-phase AC current sensing.

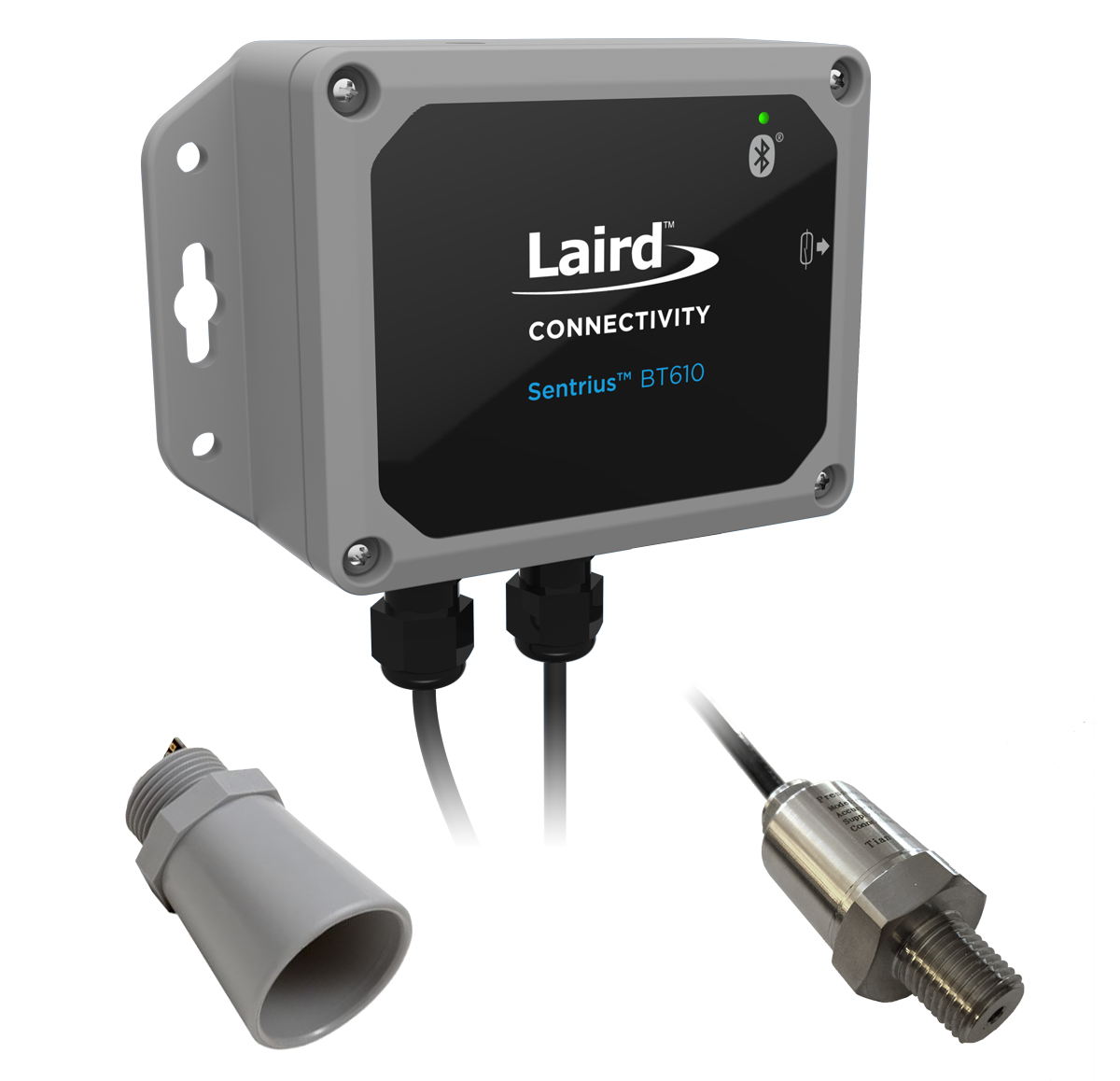

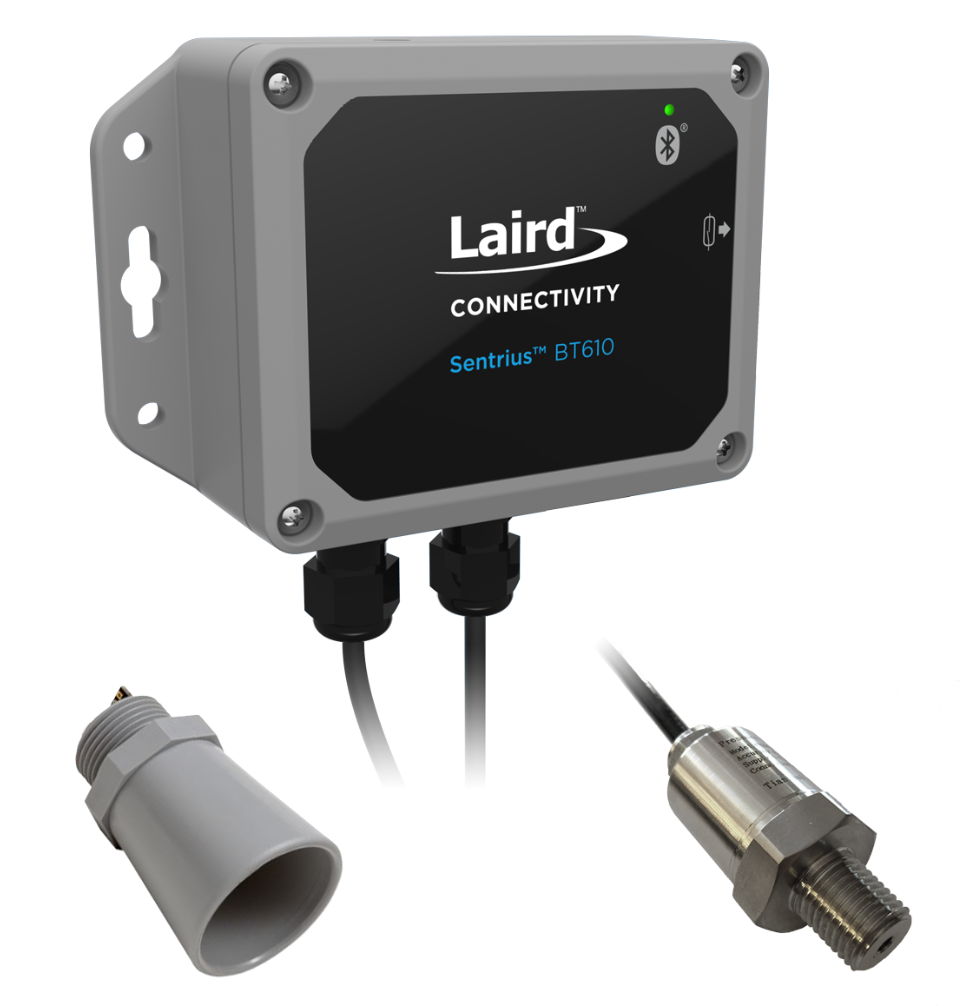

Cable assembly variants available for order from Laird Connectivity: Temperature Probe Sensor, AC Current Sensor, Ultrasonic Sensor, Pressure Sensor

Extensive Hardware & Programming Options

Sentrius BT610 offers developers the ultimate flexibility in hardware integration and software paths with nRF Connect SDK / Zephyr RTOS SDK. BT610 terminal block incorporates multiple interface formats, including I2C and full-duplex UART with flow control support, to accommodate a wide variety of industry standard sensors and applications.

  • Dedicated Iridium App
  • Pairs with Iridium Edge Solar via Laird Connectivity Iridium Sensor Tool for attributes
    configuration, sending sensor data to the cloud, and over-the-air (OTA) firmware updates

  • Versatile Field Applications
  • Several cable assembly options available for principle use case scenarios: up to 4x thermistor sensors, 3x passive AC current sensors, or a combination of 2x ultrasonic and pressure sensors

  • Multiple Sensor Interfaces
  • The terminal block connections include analog (voltage or current), digital inputs, dry contact, digital outputs, I2C, UART, SPI, and external sensor power source

  • Best-in-Class Components
  • Long Range Bluetooth 5.0 with LE Coded PHY and Cortex M4F processor with 1 MB flash / 256KB RAM memory support any level of development complexity

  • Rugged Industrial Design
  • Secured in IP67-certified polycarbonate enclosure with pressure equalizing vent, tamper detection protection, and waterproof
    connectors and plugs with IP-rated gaskets

  • Robust Connectivity
  • Features a high-gain internal antenna with IPEX locking connector, and a replaceable large-capacity 3.6V battery to power multiple sensors

Sentrius™ BT610 Sensor For Iridium Edge® Solar

Sentrius BT610 offers developers the ultimate flexibility in hardware integration and software paths with nRF Connect SDK / Zephyr RTOS SDK. BT610 terminal block incorporates multiple interface formats, including I2C and full-duplex UART with flow control support, to accommodate a wide variety of industry standard sensors and applications.
