Iridium LDS Cap Antenna Evaluation Board
-
GNSS & Iridium bands (1559–1626.5 MHz)
-
Constant gain & good RHCP from the zenith to near the horizon
-
Reliable performance over metal & in tough environments
Iridium LDS Cap Antenna Evaluation Board
Manufacturer : Kyocera AVX Components Corporation
Model : 9002225L0-L01-14D
-
GNSS & Iridium bands (1559–1626.5 MHz)
-
Constant gain & good RHCP from the zenith to near the horizon
-
Reliable performance over metal & in tough environments
Ready-To-Use, Streamlined Testing

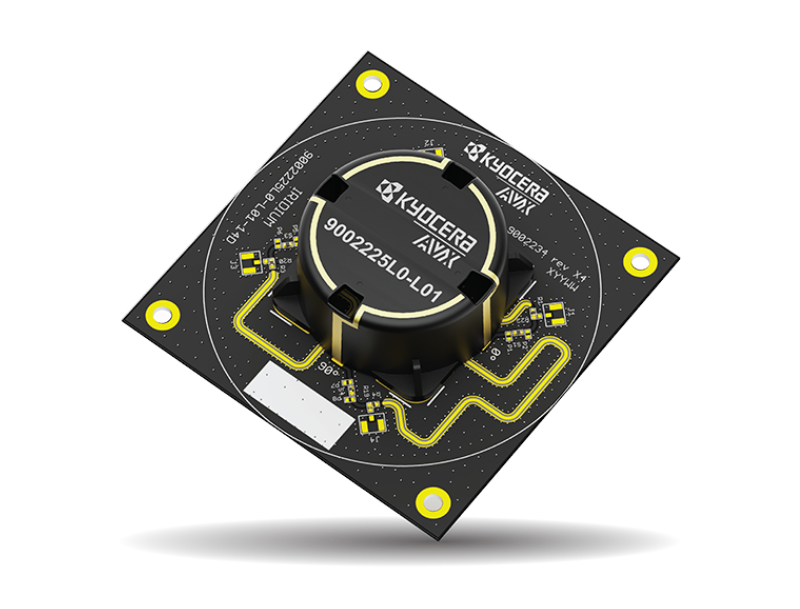

The EVB PN L9002225L0-L01-14D is the official evaluation board for KYOCERA AVX’s 9002225L0-L01 Cap Antenna. Designed on a 70×70mm PCB, it enables streamlined testing and integration of the antenna into GNSS and Iridium-based systems. Tested and qualified by Iridium, this board allows developers and engineers to evaluate the constant gain and good RHCP from the zenith to near the horizon in real-world environments. Supporting even over metal surfaces, it provides a ready-to-use platform for industrial, mobility, and satellite IoT applications.
Features
- Multi-Band
-
GNSS & Iridium bands (1559–1626.5 MHz)
- Easy Integration
-
SMA connector
- Outstanding Gain & Polarization Proper
-
Constant gain and good RHCP from the zenith to near the horizon
- Reliable Performance
-
Reliable performance over metal & in tough environments
Product Specifications and Certifications
| Technology | GNSS / Iridium |
| Frequency | 1559-1610 MHz, 1616 – 1626.5 MHz |
| Size (mm) | 70.0 x 70.0 x 32.5 |
| Peak Gain | 1559-1610 MHz = 2 dBi ; 1616 – 1626.5 MHz = 2.2 dBi |
| Average Efficiency | 1559-1610 MHz = 59% ; 1616 – 1626.5 MHz = 62% |
| Polarization | RHCP |
| Mounting | SMA connector |
| Associated Antenna P/N | 9002225L0-L01 |
| Environmental Compliance | RoHS |
- Iridium® qualification
- RoHS
