Iridium LDS Cap Antenna
-
GNSS & Iridium bands (1559–1626.5 MHz)
-
Constant gain & good RHCP from the zenith to near the horizon
-
Reliable performance over metal & in tough environments
-
Compact SMT design, allowing components underneath the antenna
-
Lightweight
Iridium LDS Cap Antenna
Manufacturer : Kyocera AVX Components Corporation
Model : 9002225L0-L01
-
GNSS & Iridium bands (1559–1626.5 MHz)
-
Constant gain & good RHCP from the zenith to near the horizon
-
Reliable performance over metal & in tough environments
-
Compact SMT design, allowing components underneath the antenna
-
Lightweight
Laser Direct Structuring Technology To Satellite Communication

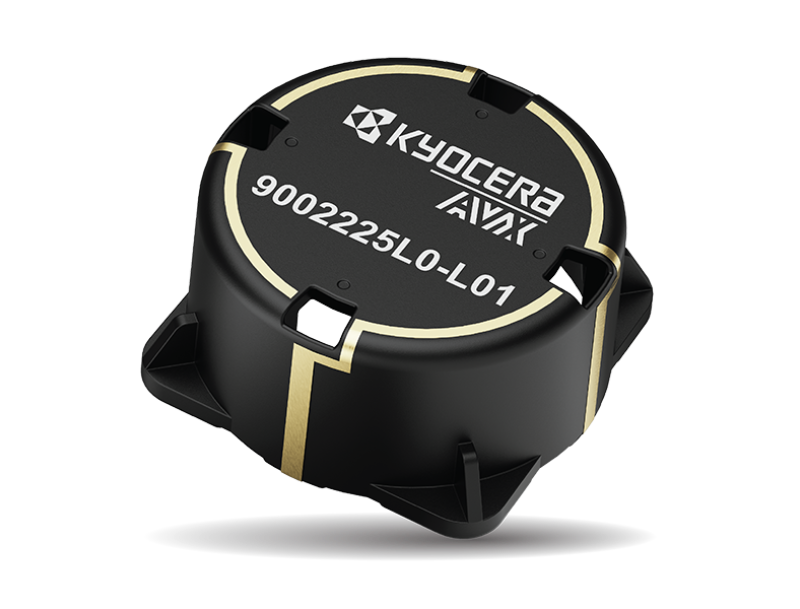

KYOCERA AVX’s 9002225L0-L01 antenna introduces Laser Direct Structuring (LDS) technology to satellite communication, offering superior high-gain and Right Hand Circular Polarization (RHCP) performance. It replaces traditional ceramic patches with a compact 35.7 × 17.98 mm design optimized for SMT assembly. Unlike ceramic alternatives, it maintains consistent gain from zenith to horizon. It supports GNSS (1559–1610 MHz) and Iridium (1616–1626.5 MHz) frequencies with ~2 dBi peak gain and 60% efficiency. Ideal for industrial, mobility, and IoT deployments, even over metal surfaces.
Features
- Multiband
-
GNSS & Iridium bands (1559–1626.5 MHz)
- Easy Integration
-
Surface Mount Technology (SMT)
- Iridium Pre-Approved
-
Iridium qualified antenna
- Outstanding Gain & Polarization
-
Constant gain and good RHCP from the zenith to near the horizon
- Reliable Performance
-
Reliable performance over metal & in tough environments
- Lightweight
-
Only 6.85g
- Compact Design
-
It allows components underneath the antenna
Product Specifications and Certifications
| General | |
|---|---|
| Technology | GNSS / Iridium |
| Frequency | 1559-1610 MHz, 1616 – 1626.5 MHz |
| Size (mm) | 37.5(⌀) x 17.98(h) |
| Peak Gain | 1559-1610 MHz = 2 dBi ; 1616 – 1626.5 MHz = 2.2 dBi |
| Average Efficiency | 1559-1610 MHz = 59% ; 1616 – 1626.5 MHz = 62% |
| Polarization | RHCP |
| Mounting | SMT |
| Weight (grams) | 6.85 |

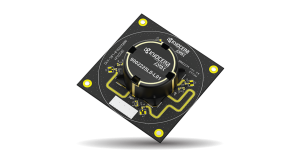

| Associated Evaluation Board P/N | 9002225L0-L01-14D |
| Environmental Compliance | RoHS |
- Iridium® Certification
- RoHS
