Q4000 SBD Cellular Dual Mode Programmable Modem

Manufacturer : Quake Global Inc.

Model : Q4000

  • Dual Mode LTE CatM1 Global Cellular & Iridium SBD Modem

  • Fully Programmable & Customizable

  • Integrated GNSS / GPS

  • Rugged Industrial Design

Q4000 SBD Cellular Dual Mode Programmable Modem


Manufacturer : Quake Global Inc.

Model : Q4000

  • Dual Mode LTE CatM1 Global Cellular & Iridium SBD Modem

  • Fully Programmable & Customizable

  • Integrated GNSS / GPS

  • Rugged Industrial Design

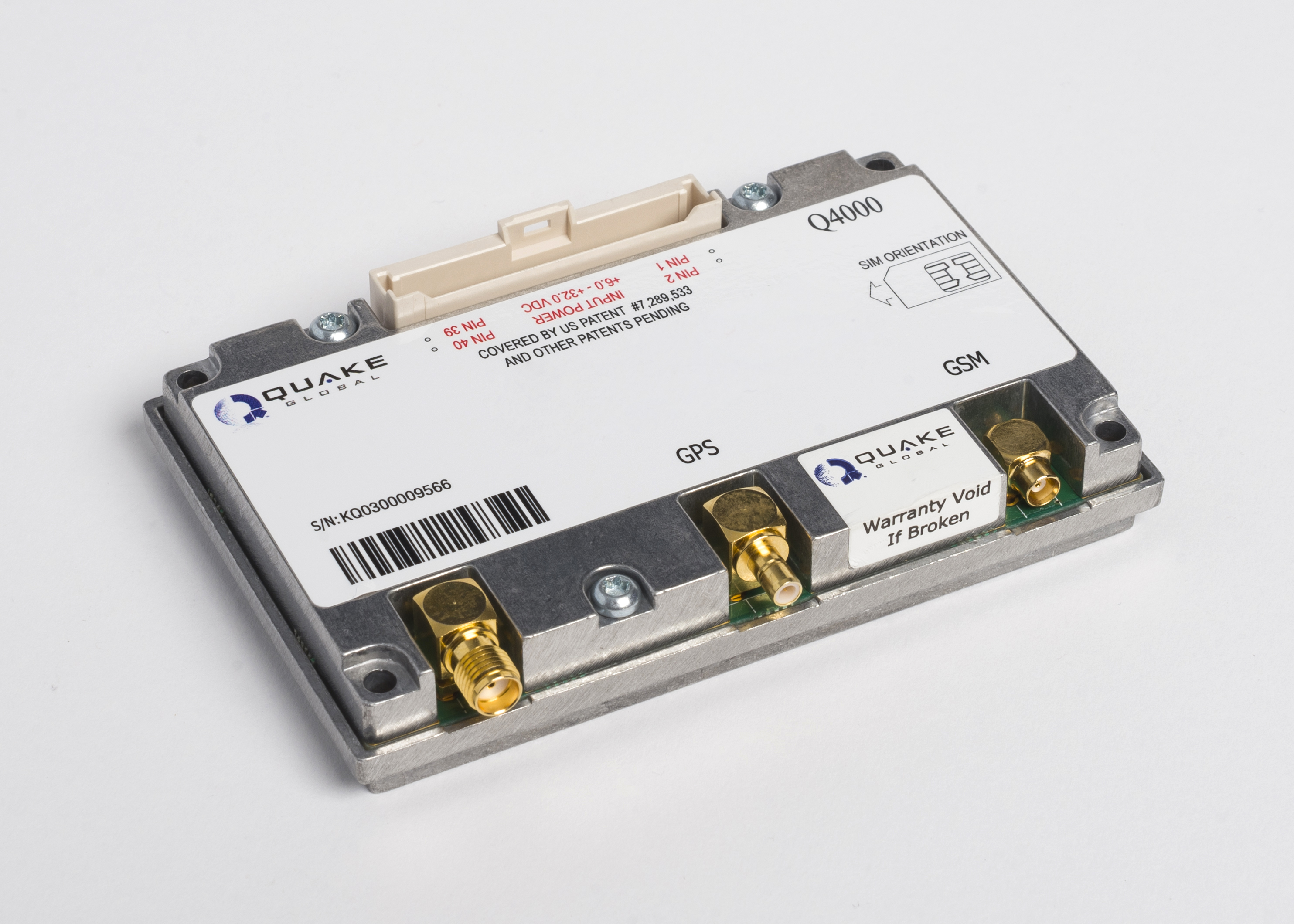

Q4000 Dual Model Satellite & LTE Cellular Modem

The industrial-grade Q4000 features cellular (LTE CatM1 Global) and satellite dual-mode network configurations and is fully programmable with onboard applications.

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions (L x W x H) 99.3mm x 64mm x 14.9mm
Weight 170 g
Environmental
Operating Temperature Range -40 to +85 ℃
Durability Standard J1455
Antenna
Antenna Design Flexible - external antenna
GPS
Accuracy, Positional Rated 2.5, Practicle 1 m
Accuracy, Timing Integrated RTC (set from network) ns
Power
Input Voltage Range 9V to 32V
Network
Additional Networks 2G, 3G & LTE
Location Based Services GPS & GNSS

Certifications

  • FCC
  • PTCRB
  • CE Mark
