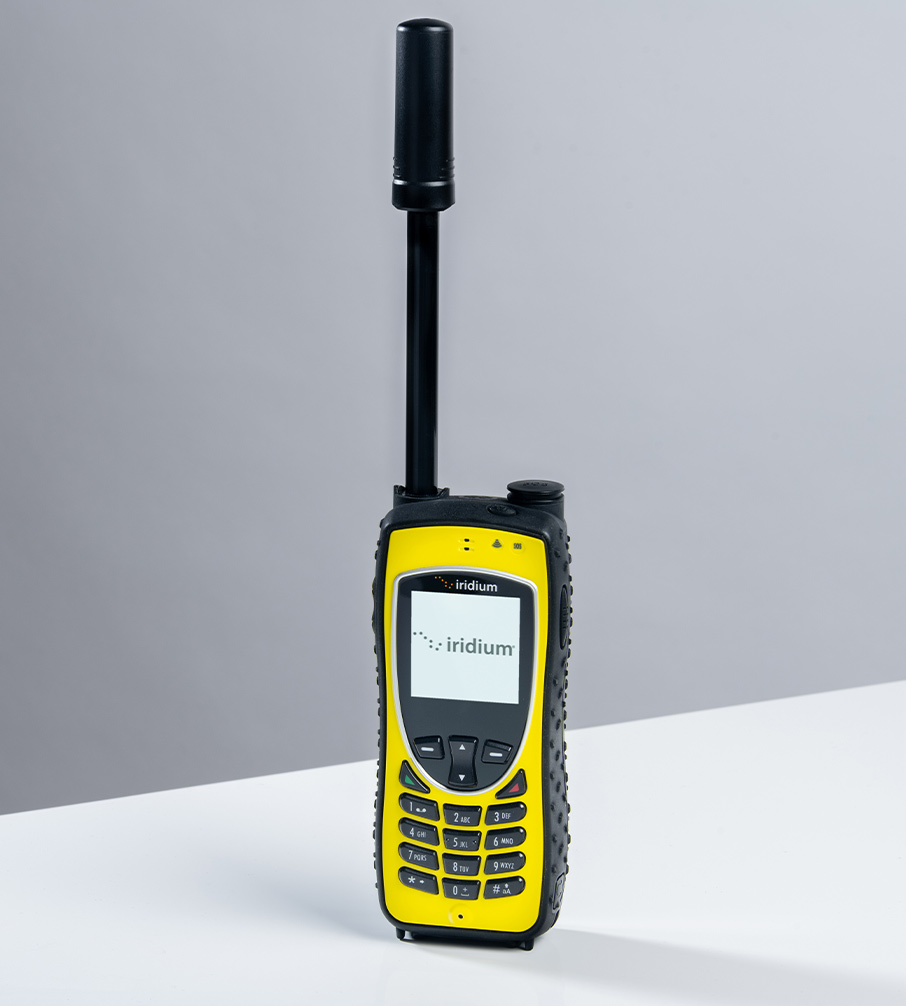

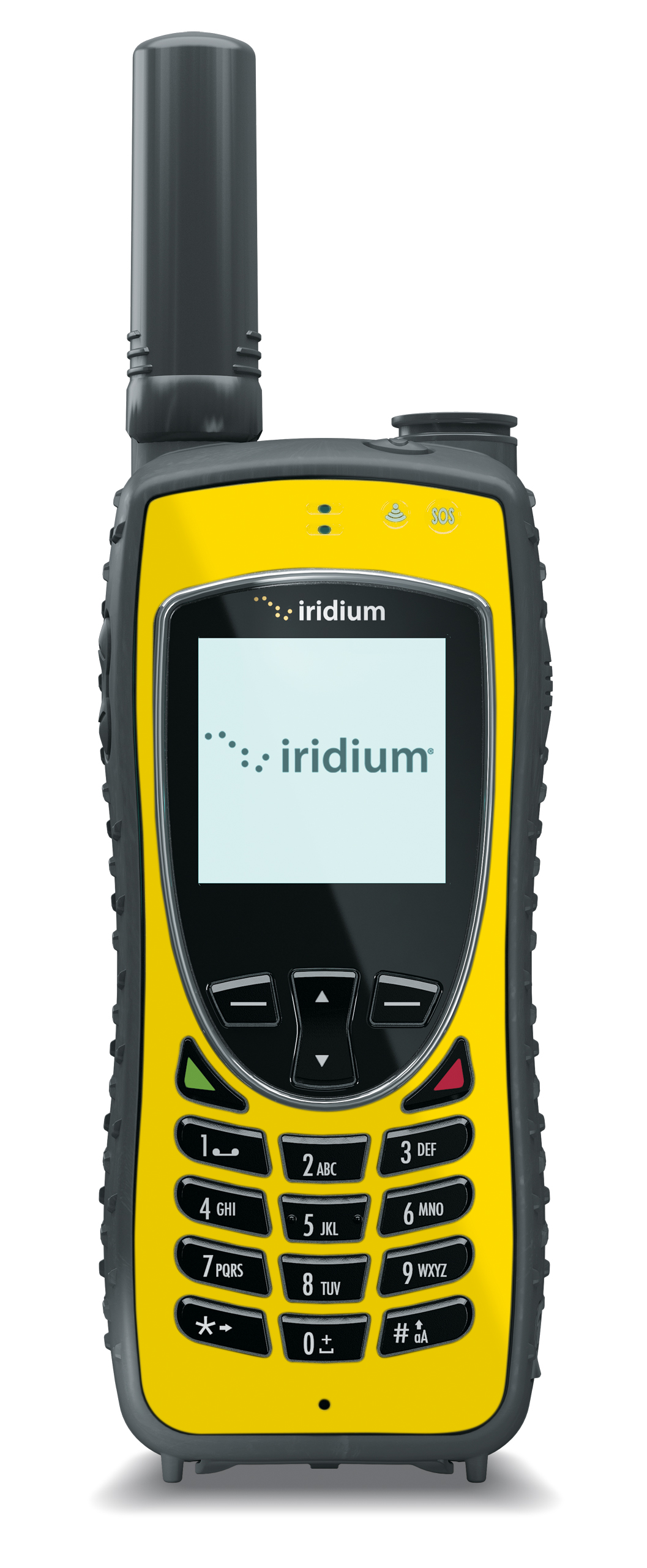

Iridium Extreme® in Safety Yellow
Manufacturer : Iridium
Model : 9575 / PN: CPKTN1901-002
Services: Voice Calling | Iridium Short Burst Data® (SBD®)
-
Special Edition Safety Yellow with Matching Lanyard
-
Dust Proof, Shock Resistant, and Jet-Water Resistant
-
GPS & Location-Based Services
-
One-Touch SOS
-
Diamond Treaded Tapered Grip
Iridium Extreme® in Safety Yellow
Manufacturer : Iridium
Model : 9575 / PN: CPKTN1901-002
Services: Voice Calling | Iridium Short Burst Data® (SBD®)
-
Special Edition Safety Yellow with Matching Lanyard
-
Dust Proof, Shock Resistant, and Jet-Water Resistant
-
GPS & Location-Based Services
-
One-Touch SOS
-
Diamond Treaded Tapered Grip
The Smarter, Tougher Satellite Phone
Iridium Extreme® combines market-leading toughness with an unmatched feature set including location awareness and a fully integrated SOS button with emergency response service — all in one compact handset.
Built to Take a Beating
Tough and rugged, Iridium Extreme® is engineered to support high-usage customers in harsh conditions — everywhere.
- Enhanced Battery Life
-
Up to (4) hours of talk time, (30) hours of standby
- Two-Way Connectivity
-
Enhanced SMS and email messaging capability
- Location-Based Services
-
Supports GPS, online tracking and Google Mapping services
- Emergency Ready
-
Programmable one-touch SOS with access to 24/7 emergency assistance
- Extreme Durability
-
Weather-resistant keypad, wind-resistant microphone, IP65, MIL-STD 810F
- Display
-
200-character, daylight-readable with integrated backlight for nighttime viewing
- Memory
-
100-entry internal phonebook with capacity for multiple phone numbers, email addresses, and notes
- Security
-
Keypad and PIN lock options
- Safety Yellow
-
Special edition design and matching lanyard to fit your extreme lifestyle
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 140mm x 60mm x 27mm |
| Weight | 247 g |
| Environmental | |
| Operating Temperature Range | 10 to 55 ℃ |
| Durability Standard | MIL-STD 810F |
| Ingress Protection | IP65 |
| Battery | |
| Battery Life, Talk Time | 4 hr |
| Battery Life, Standy | 30 hr |
| Network | |
| Telephony | Yes |
| Location Based Services | Yes |
| User Experience | |
| GEOS Support | Yes |
- ITU
- CE
- IC
- FCC Part 25
- Australia
- Mexico

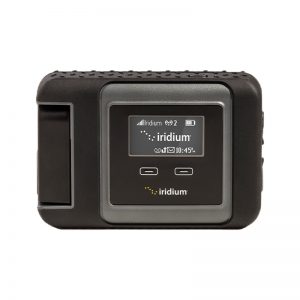

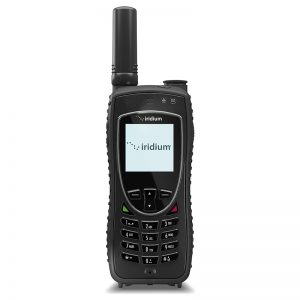

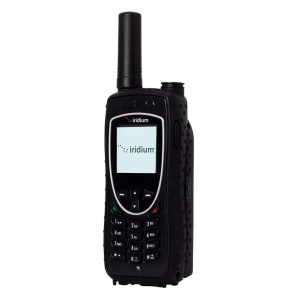

Related products
Related services

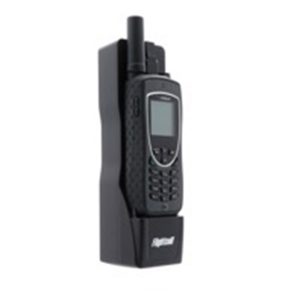

Related accessories
Login to access additional resources
Resources
Learn more about the Iridium Extreme handset user program offered by GEOS, which provides access to Global Emergency Support Services (GEOS) at no additional cost.
Case Study - Dr. Alex Kumar - Iridium Phone Vital when Unreachable
Case Study - Parker Liataud, polar explorer and climate change campaigner, planned the Willis Resilience Expedition to collect data from the South Pole. Using Iridium Pilot Land Station, which is powered by Iridium OpenPort, Liataud was able to communicate during his adventures.
Product Regulatory & Safety Card for Iridium 9555 and Iridium Extreme handsets.
E C Directive Declaration of Conformity for Iridium Extreme.
Dated: August 30, 2011
FCC Grant Part 25 for Iridium Extreme.
EU Declaration of Conformity for Iridium Extreme 9575N (PN IRIDN0215)
Type Examination Certificate No: DK-RED000990 i01
Dated: April 15, 2020
EU Type Examination Certification for Iridium Extreme 9575N (PN IRIDN0215)
Type Examination Certificate No: DK-RED000349 i01
Dated: April 18, 2020
REACH Declaration 209 for the Iridium Extreme 9575N
PN: IRIDN0215X
Dated: August 08, 2020
RoHS Certificate of Compliance for the Iridium Extreme 9575N
PN: IRIDN0215X
Dated: August 08, 2020
RoHS Certificate for Iridium Extreme 9575N.
PN CPKTN1701x
Updated 11 December 2017
RoHS Certificate of Compliance for the Iridium Extreme 9575N GSA Device
PN: IRN02507X
Dated: August 08, 2020
REACH Declaration 209 for the Iridium Extreme 9575N GSA Device
PN: IRN021507X
Dated: August 08, 2020
Iridium's general subscriber equipment end of life policy.
Product FAQ sales tool for Iridium Extreme.
Software upgrade for Iridium Direct Internet on Mac.
Software upgrade for Iridium Direct Internet on 32bit Windows.
Software upgrade for Iridium Direct Internet on 64bit Windows.
Software Upgrade Installer and Software Release Note (HL19004) for Iridium Extreme packaged in a .zip file dated March 31,2020.
USB driver installer v1.3 for Iridium Handset.

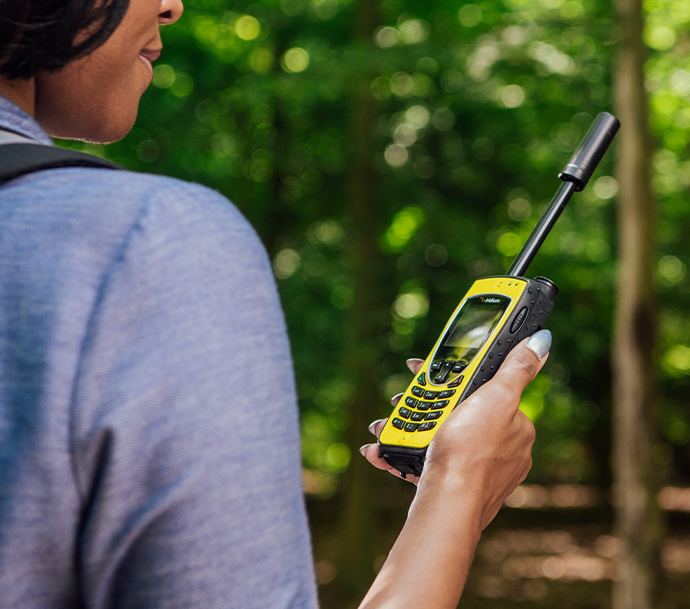

Lifestyle Imagery of the Iridium Extreme being used by a hiker in a mountain scene
