ICON ST-0 Satellite Terminal

Manufacturer : Effortech Tecnologia e Solucoes Ltda.

Model : ST-0

  • Embedded Antenna
  • Bi-Directional Communication
  • Waterproof Enclosure and Connector
  • Two-Way Satellite Communications
  • Allows for Multi-Applications
ICON-ST-0 Transceiver on white background
ICON-ST-0 Transceiver on its side
ICON-ST-0 Transceiver and kit
ICON-ST-0 Transceiver on white background
ICON-ST-0 Transceiver on its side
ICON-ST-0 Transceiver and kit

ICON ST-0 Satellite Terminal


Manufacturer : Effortech Tecnologia e Solucoes Ltda.

Model : ST-0

  • Embedded Antenna
  • Bi-Directional Communication
  • Waterproof Enclosure and Connector
  • Two-Way Satellite Communications
  • Allows for Multi-Applications

Tracking, Control and
Remote Asset Monitoring

Effortech’s ICON ST-0 Satellite Terminal with Antenna provides a bi-directional interface via satellite and guarantees communication in a simple and secure way. It's a versatile device capable of transmitting and receiving satellite messages from anywhere in the world, thus enabling the tracking, control and remote asset monitoring even in the most isolated regions.

Versatile, Simple and Safe

Developed for installation in external environments, ideal for composing hybrid or purely satellite solutions in the most varied segments such as telemetry, fleet management, cargo monitoring, agribusiness, utilities, among others.

  • Ten Times Lower Latency
  • Excellent Cost-benefit
  • Embedded Intelligence
  • Heightened Security Throughout Operation
  • Allows for Multi-applications
  • Waterproof Enclosure and Connector

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 159 x 175 x 55 mm
Weight 376 g

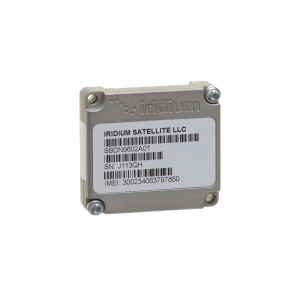

Iridium Embedded Technology Iridium 9602 Module
Environmental
Field Label Field Value
Operating Temperature Range -20 to +85 ℃
Ingress Protection IP67
RF Interface
Field Label Field Value
Frequency Range 1616 - 1626.5 MHz
Multiplexing Method TDMA/FDMA
Power
Field Label Field Value
Input Voltage Range 9 to 32 VDC
Idle Current Average 50 average mA
Transmit Current Average 150 average mA
Transmit Current Peak 2 peak A
Load Dump ISO 7637-2: 2004 Pulse 5
Network
Field Label Field Value
Satellite Coverage Bi-directional
Broadband
Field Label Field Value
Data Speed Uplink (UL) 340 Kbps
Data Speed Downlink (DL) 270 Kbps

Certifications

  • Anatel (Brazil)
  • Iridium Approved

ICON ST-0 Satellite Terminal

Developed for installation in external environments, ideal for composing hybrid or purely satellite solutions in the most varied segments such as telemetry, fleet management, cargo monitoring, agribusiness, utilities, among others.
