IC-SAT100M

Manufacturer : Icom Inc.

Model : SAT100M

  • Truly Global PTT with Iridium® Push-To-Talk Service
  • Designed for Fixed Mount In-Building and In-Vehicle Operations
  • Interoperable Display with Icom IC-SAT100
  • Compatible with Iridium Extreme® PTT Handset
  • Easy Wiring Works Between the Antenna Unit and Main Unit Using a LAN Cable

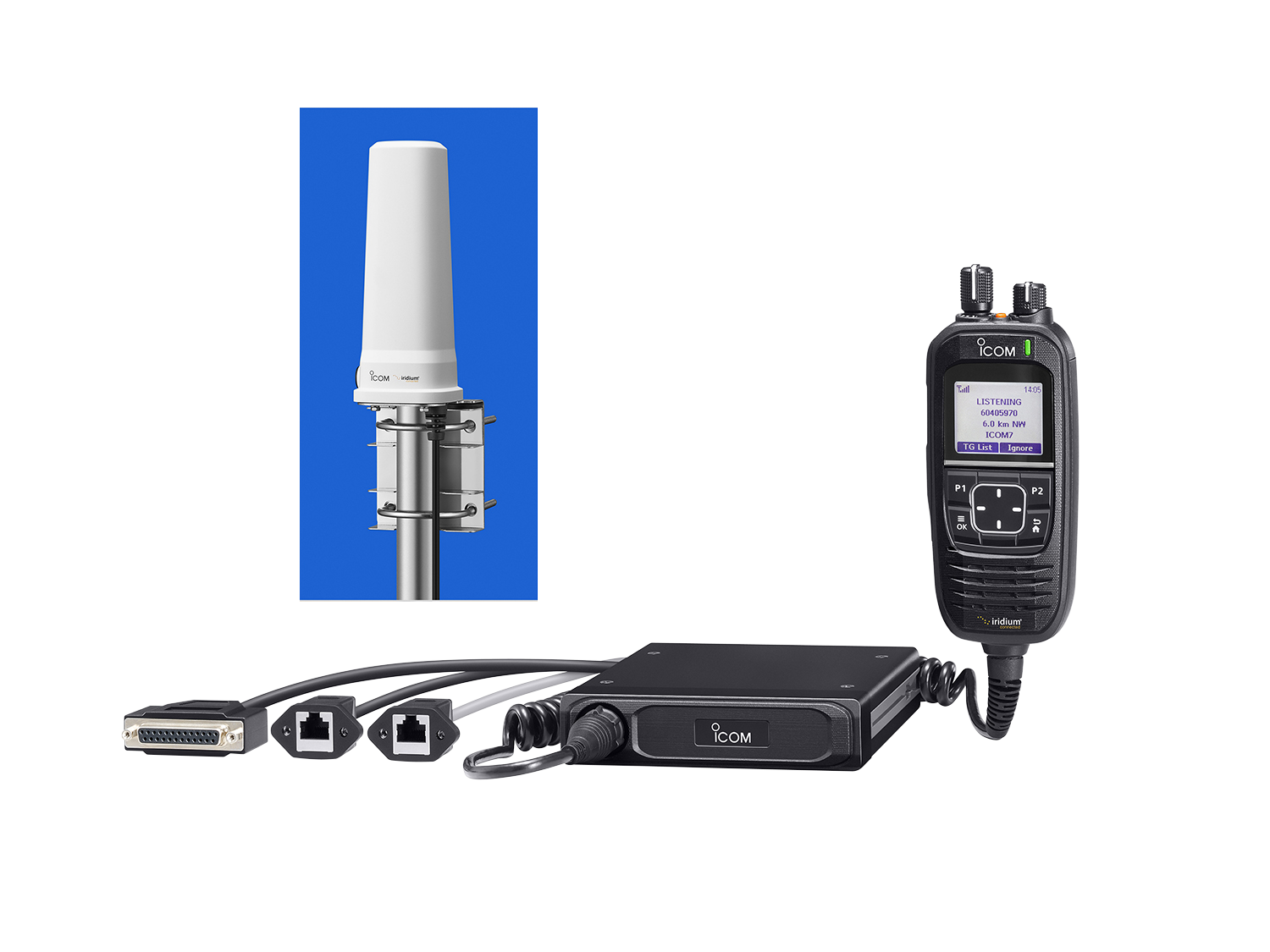

Icom IC-SAT100M Product Image

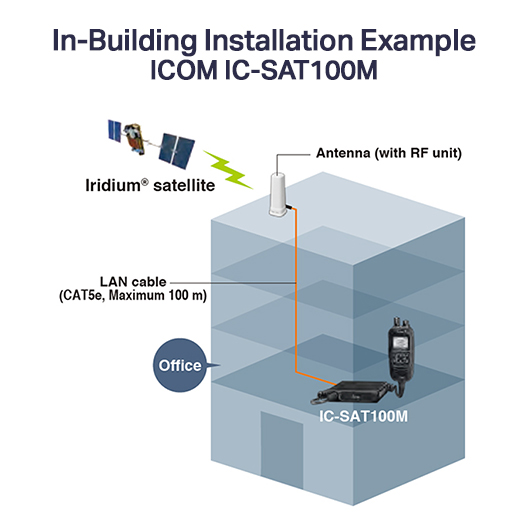

icom ic-sat100m in-building installation example

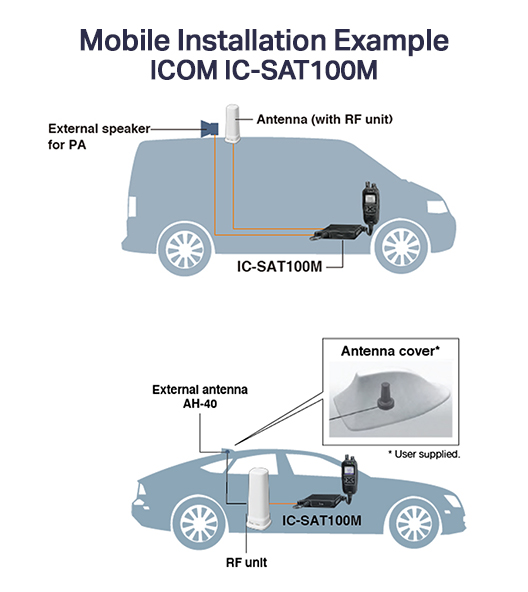

icom ic-sat100m vehicular installation example

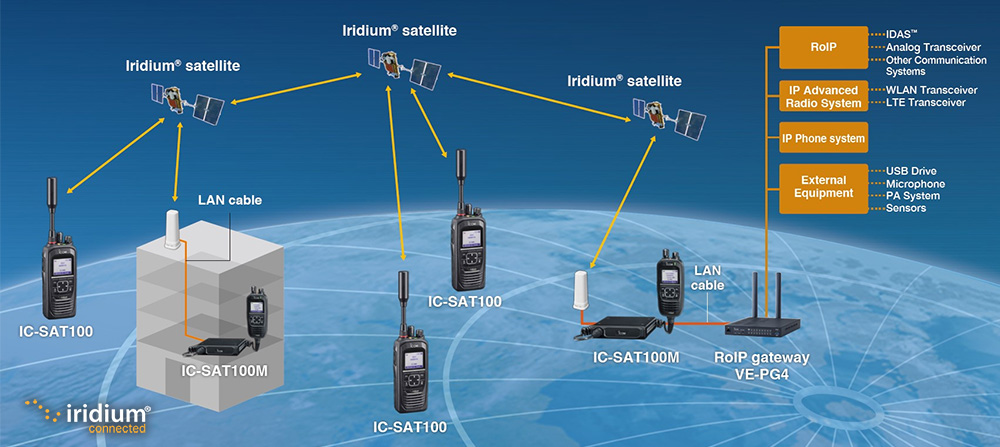

infographic for icom ic-sat100m interoperability with other radio systems
Icom IC-SAT100M Product Image
icom ic-sat100m in-building installation example
icom ic-sat100m vehicular installation example
infographic for icom ic-sat100m interoperability with other radio systems

IC-SAT100M


Manufacturer : Icom Inc.

Model : SAT100M

  • Truly Global PTT with Iridium® Push-To-Talk Service
  • Designed for Fixed Mount In-Building and In-Vehicle Operations
  • Interoperable Display with Icom IC-SAT100
  • Compatible with Iridium Extreme® PTT Handset
  • Easy Wiring Works Between the Antenna Unit and Main Unit Using a LAN Cable

PTT Satellite Radio
for Fixed Mount Operations

Icom's IC-SAT100M is a PTT satellite radio designed for fixed mount operations. Unlike handheld satellite radios, users with the IC-SAT100M do not need to stay outside for a clear view of the sky for a stable communication connection. This global satellite mobile radio's design easily provides coverage from vehicle to in-building use. The IC-SAT100M is backed by the Iridium satellite network, covering the earth including both poles for a true wide area global communication solution.

Real-time Communications

The Icom IC-SAT100M is a dedicated satellite push-to-talk (PTT) radio designed to be used from a vehicle, indoors, or even from the basement. It is the only PTT radio offering real-time communications at the push of a button — anywhere on the planet.

  • Mobile Use
  • Attach the antenna to your vehicle's room to connect. The supplied antenna can also be stored inside the vehicle to avoid clearance issues. Add optional AH-40 antenna, to mount on top of the car
  • In-Building Use
  • Use a Power over Ethernet (PoE) switch as the power supply for the main unit and antenna. A LAN cable maximum length of 100m or 328 ft can provide a longer, cost-efficient in-building solution
  • PTT Group Communications
  • Truly global group communications, with access to configure up to 15 talkgroups through Iridium PTT Command Center
  • Interoperable with Conventional Radios
  • With a VE-PG4 RoIP gateway, the IC-SAT100M can interconnect with an IP phone, WLAN, LTE, and other communication systems
  • Seamless Interaction with IC-SAT100
  • The speaker mic uses a similar display and button layout as the handheld IC-SAT100. Switch between both units with ease
  • Other Features
  • Voice recording function, short data messaging, built-in Bluetooth®, integrated GPS receiver shows received signal position
  • Durable
  • MIL-STD-810; Antenna w/RF Unit: IP67, Speaker Mic: IP55, Main Unit: IP54
  • Encryption
  • AES 256-bit Encryption for Security
  • High Quality Audio
  • 1500 mW Powerful Audio
  • Multiple Languages
  • English, French, Japanese, and Spanish

Product Specifications and Certifications

Technical Specifications

Antenna Unit Microphone IC-SAT100M
Mechanical
Dimensions (L x W x H) 200mm x 76.8mm x 76.8mm - -
Weight 500 g - -
Iridium Embedded Technology Iridium Core 9523 Module - -
Dimensions (L x W x D) - 29 x 125 x 156.5 mm -
Environmental
Operating Temperature Range - - -30 to +60 ℃
Durability Standard - - MIL-810 G
Ingress Protection - - Antenna Unit with RF Unit: IP67; Main Unit: IP54; Microphone: IP55
RF Interface
Frequency Range - - 1616 to 1626.5 MHz
Power
Input Voltage Range - - 10.5 V to 32 V DC
Idle Current Peak - - 550 peak mA
Transmit Current Average - - 700 average mA
Transmit Current Peak - - 2.5 peak A
Receive Current Average - - 800 average mA
Receive Current Peak - - 1100 peak mA
Network
Additional Networks - - VE-PG4 Gateway Unit Enables Interconnectivity with Satellite PTT Radios, PMR Radios, LTE Radios, WLAN Radios, IP Phone Systems, and External Devices
Telephony - - No, IC-SAT100M is for Push-To-Talk (PTT) Use Only
Location Based Services - - Integrated GPS Receiver
User Experience
Mobility - - Install the Antenna Unit (with RF Unit) to the Rooftop for Vehicular or In-building Use

IC-SAT100M

The Icom IC-SAT100M is a dedicated satellite push-to-talk (PTT) radio designed to be used from a vehicle, indoors, or even from the basement. It is the only PTT radio offering real-time communications at the push of a button — anywhere on the planet.
