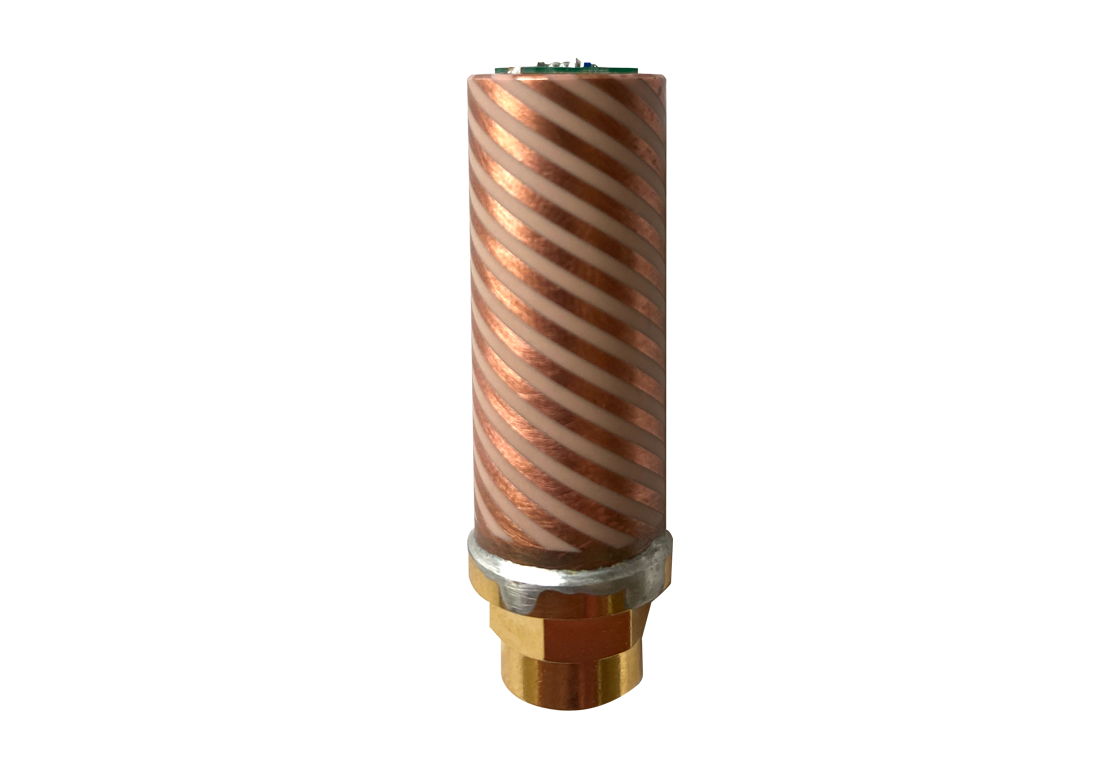

HXDC1600-SAA - Iridium Antenna - SMA Connector
-
Smallest Iridium antenna: 41.5mm long x 13.5mm dia. (with SMA connector)
-
No out-of-band interference
-
Ideal for applications requiring high-quality reception
-
Discounts available on over 5 units (visit Helix Geospace for more information)
HXDC1600-SAA - Iridium Antenna - SMA Connector
Manufacturer : Helix Technologies Limited
Model : HXDC1600-SAA
-
Smallest Iridium antenna: 41.5mm long x 13.5mm dia. (with SMA connector)
-
No out-of-band interference
-
Ideal for applications requiring high-quality reception
-
Discounts available on over 5 units (visit Helix Geospace for more information)
When Size & Performance Are Critical
The HXDC1600-SAA is a high-performance antenna created Iridium® Network with unique DielectriX™ technology. Helix’s Iridium antennas are impervious to RF and electrical noise and feature superior multi-path (reflected) signal selectivity.
HXDC1600-SAA Features
Discover how HXDC1600-SAA series antennas are ideally suited for Iridium applications requiring resilience and compact form factor.
- Immune To Common-Mode Noise
-
Balanced & isolated from platform ground
- Key Applications
-
- Iridium voice and Short Burst Data (SBD): satphones & terminals
- IoT
- Personal safety devices
- Hand-helds & wearables
- Autonomous vehicles & drones
- See all applications
- Cardioid Radiation Pattern
-
- Optimal signal reception from low-elevation satellites
- Ideal for dynamic applications: maritime, aviation, vehicles
- Mounting In Harsh Environments
-
- Over-molded 1600 series variants provide IP67 environmental protection
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 41.5mm |
| Dimensions ( H x Ø ) | 13.5mm |
| Weight | 25 g |
| Environmental | |
| Operating Temperature Range | -40 - +85 ℃ |
| Antenna | |
| Polarization | RHCP |
| RF Interface | |
| Frequency Range | 1,616-1,626 MHz |
| I / O Impedence | 50 Ohm |
