Guardian Mobility G6 All-In-One IP Data Terminal

Manufacturer : Guardian Mobility Inc.

Model : G6

  • Iridium Certus® 100 midband speeds up to 88 Kbps transmit / 88 Kbps receive

  • Beyond Visual Line Of Sight (BVLOS)

  • Voice, video & data

  • Intelligence, Surveillance, & Reconnaissance (ISR) & Command & Control (C2) capability

  • Automated Flight Following (AFF), Antenna Turning Unit (ATU) & Flight Data Monitoring (FDM)

Guardian Mobility G6 All-In-One IP Data Terminal


Manufacturer : Guardian Mobility Inc.

Model : G6

  • Iridium Certus® 100 midband speeds up to 88 Kbps transmit / 88 Kbps receive

  • Beyond Visual Line Of Sight (BVLOS)

  • Voice, video & data

  • Intelligence, Surveillance, & Reconnaissance (ISR) & Command & Control (C2) capability

  • Automated Flight Following (AFF), Antenna Turning Unit (ATU) & Flight Data Monitoring (FDM)

Best in Class

Guardian Mobility, a leading enterprise solutions provider to over 100 clients worldwide, is a certified service provider of Iridium Certus aviation products and solutions. Guardian can offer full end-to-end solutions or provide just airtime or products to partners in specialty markets.

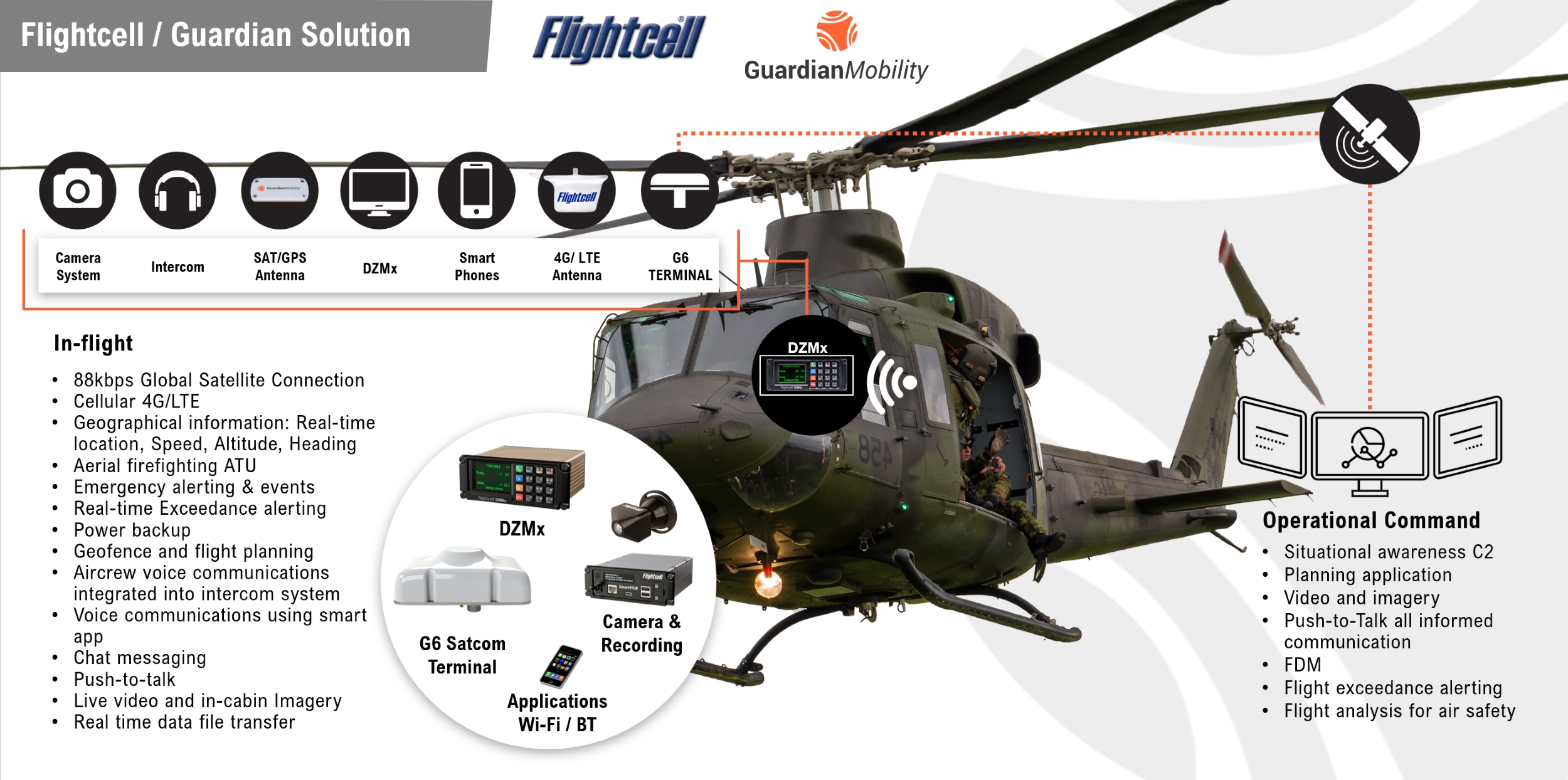

The G6 terminal provides a bi-directional midband 88 Kbps modem for use with the Iridium® satellite network. It uses IP data protocol and multiple interfaces, such as Wi-Fi and Bluetooth® to ensure simple application integration and provides data and voice services. Features such as VOIP, PTT, compressed live video and imagery provide cost effective solutions not seen before in the aviation markets. Partners can develop scripting/applications within the device to customize the product features and capability for their enterprise services. STCs and MilSpec design have made it the ideal solution for military, law and order and EMS applications that require critical data communication redundancy.

The G6 provides an IP data platform for any aviation asset and guarantees connectivity anywhere in the world.

Features

  • All-In-One Terminal
  • CST Iridium Certus 100 modem with Iridium and GPS antenna incorporated—driven by powerful CPU with memory for custom scripts

  • 88/88 Kbps IP Satellite Terminal
  • This is a bi-directional 88 kbps terminal and 95% BW efficiency

  • Power Backup
  • A high capacity capacitor provides limited but critical power backup to ensure power down message is sent

  • Voice, PTT, VOIP, Video & Imagery
  • Two HD voice channels are included and Guardian is developing PPT/VOIP/Video/Imagery services

  • Encryption
  • AES192 commercial encryption is standard with the option of AES256 after first release.

  • Third-Party Scripting Available
  • Third parties can apply their own scripts to the terminal for customization

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions (L x W x H) 226mm x 147mm
Dimensions ( H x Ø ) 81mm
Weight 2000 g
Iridium Embedded Technology Iridium Certus 9770 Module
Environmental
Operating Temperature Range -40 to +71 ℃
Storage Temperature Range -40 to +85 ℃
Storage Humidity Range 95 @ +55C % RH
Durability Standard RTCA/DO-160G/MIL-ST-704F
Ingress Protection IP66
Vibration Standard Category S & U2
Antenna
Antenna Design Built in Iridium Certus and GPS
Power
Input Voltage Range 9-32 DVC
Network
Telephony Satelllite voice, PTT & VOIP
Streaming Data 56 kbps
Location Based Services GNSS
Data Speeds
Data Speed Uplink (UL) 88 Kbps
Data Speed Downlink (DL) 88 Kbps

Certifications

  • Iridium Certification
