Create Powerful Custom Solutions
The GSatMicro Series provides the intelligence and connectivity required to enable any satellite-enabled project.

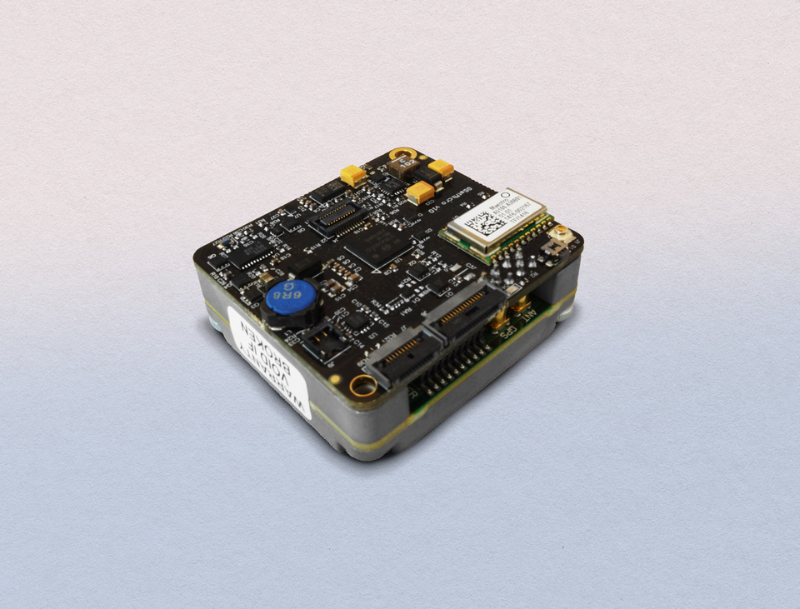

Part of the GSatMicro Series, the GSatMicro OEM delivers the powerful internal module of the GSatMicro handheld devices to any custom form factor. GSE’s public and private sector clients have leveraged the power, elegant design, and convenience of GSatMicro OEM in custom satellite solution engineering since 2014.
Building new products without spending time and effort engineering a technology stack for satellite connectivity has resulted in GSE’s
partners being able to deliver custom-built hardware solutions and bring them to market in a fraction of the time. The GSatMicro OEM’s open-source framework is fully customizable, programmable, and integrable, making it the ideal platform for solutions of any complexity level.
Features
- Compact Size
-

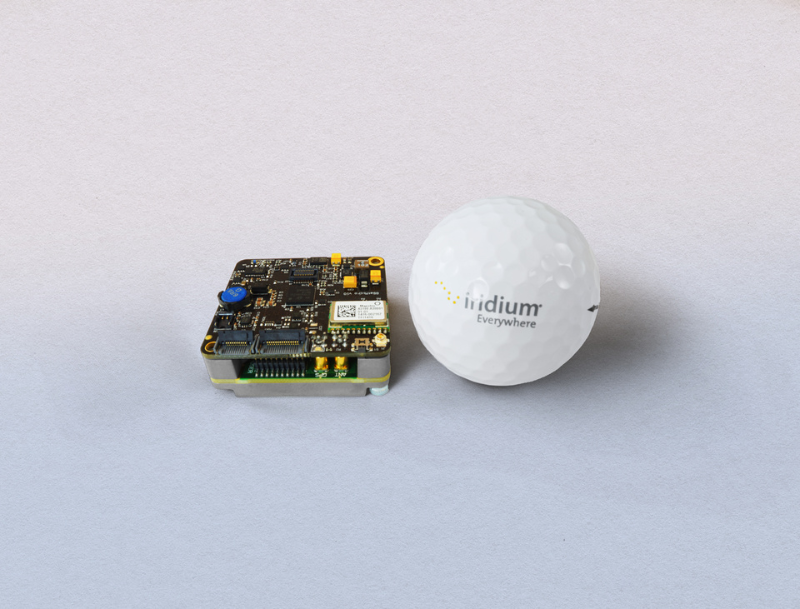

The GSatMicro OEM’s size makes it the go-to for any form factor design.
- Fully Programmable
-
Each GSatMicro OEM can be customized for complex data & behavior applications by leveraging LUA scripting commands.
- Powerful ARM Cortex Processor
-
The 32-bit ARM Cortex technology is fast & energy efficient, which is great for battery life & sleep-wake
operations.
- High-Sensitivity GPS
-
SiRFstarV GPS provides high-sensitivity GPS fixing, including positional data with latitude, longitude, and altitude.
- Accelerometer
-
The accelerometer is the first in a series of modules to increase the intelligence of data reported by GSatMicro OEM-enabled devices.
- Magnetic Compass
-
The magnetic compass further increases the data intelligence reported by GSatMicro OEM-enabled devices.
- I/O Ports
-

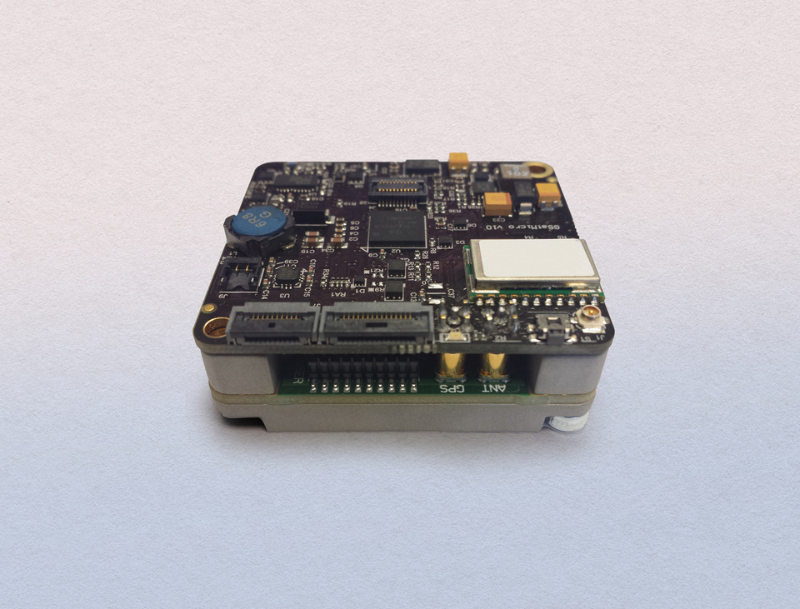

Two flex circuit connectors on the GSatMicro OEM allow final hardware solutions to integrate sensors, LED indicators, power supplies, analog inputs, and relay outputs.
- Antenna Port
-
Dual-band antenna with u.FL/IPEX connector allows a single antenna to satisfy satellite and GPS connectivity.
- Satellite & 4G GSM Connectivity
-
The most important component, the GSatMicro OEM X, provides network connectivity to any integrated hardware product. This includes seamless transitions between 4G GSM and Iridium® satellite network coverage.
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Iridium Embedded Technology | Iridium 9602 Module |
| General | |
| USB DC Input | 4.5V to 5.5V |
| High Voltage DC Input | 7.5V to 36V (protected to 40V DC) |
| 2 Analog Inputs | 0V to 30V DC |
| Tracking | - 163 dBm |
| Navigation | - 160 dBm |
| Acquisition (cold start) | - 148 dBm |
| Communication | UART - NMEA (Default) |
| Frequency | LI - 1,575 MHz |
| NMEA Message Switchable | GGA, RMC, GSA, GSV, VTG, GLL, ZDA |
| Autonomous Position Accuracy | <2.5m CEP |
| Horizontal Position Accuracy | <2.0m CEP SBAS |
| Channels | 48 |
| Time To First Fix (Hot Start) | <1s |
| Time To First Fix (Warm Start) | <32s |
| Time To First Fix (Cold Start) | <35s |
| Correlators | 400,000 |
