Geoforce GT2s: Government Asset Tracking
Services: Iridium Short Burst Data® (SBD®)
-
Up to 10 years of operational service life
-
Zero-Maintenance and Zero-Touch
-
Bluetooth Low Energy for wireless sensors and mobile programming devices
-
Extremely rugged, reliable, and Intrinsically Safe
-
Fully secure and truly global, through Iridium DoD EMSS Gateway
Geoforce GT2s: Government Asset Tracking
Manufacturer : Geoforce Inc.
Model : GT2s
Services: Iridium Short Burst Data® (SBD®)
-
Up to 10 years of operational service life
-
Zero-Maintenance and Zero-Touch
-
Bluetooth Low Energy for wireless sensors and mobile programming devices
-
Extremely rugged, reliable, and Intrinsically Safe
-
Fully secure and truly global, through Iridium DoD EMSS Gateway
The World's Most Rugged, Reliable and Easy-to-Install Military Grade Asset Tracking Device
Introducing the current-generation GT2s (Satellite) GPS tracker from Geoforce’s GT series of world-leading, battery-powered, military-grade tracking devices. The GT2s combines the longevity of solar plus the strength of primary batteries and has proven itself in the world’s harshest environments. Its rugged design, rigorous manufacturing and thorough testing processes provide unmatched durability in the field, resulting in a zero-maintenance device. The GT2s operates on the fully secure, 100% global Iridium Satellite Network via the DoD’s EMSS Gateway (also commercial option). Combining advanced wireless and GPS technology with smart power management, the GT2s is the most reliable, and simplest to operate and install, outdoor asset tracking device ever produced.
Geoforce GT2s: Global Asset Tracker - Rugged, Long-Lasting, Easy Install and Zero-Touch
The self-contained, rugged, and compact, satellite asset tracker with dual-power built-in solar recharging provides up to 10 years of maintenance-free continuous visibility, eliminates the time and field service costs associated with battery recharging and device maintenance.
- Extremely Rugged & Intrinsic Safe
-
Fully sealed design for long-lasting operation. Intrinsically Safe for gas/explosive areas (IECEx/ATEX ia IIC Zone-0).
- Ready Out-Of-The Box, Zero Maintenance
-
Zero Touch, no device programming before deployment required. Zero maintenance, no field personnel will ever have to change or recharge batteries.
- BLE for Wireless Sensors and Programming
-
Increase visibility with wireless sensors without changing device.
- Multiple Reporting Frequency Options
-
Configurable over-the-air with pre-defined and customizable reporting frequency modes to support any mission.
- Quick & Easy Installation
-
Compact form factor with multiple installation options installs in minutes on nearly any asset.
- Dual Power with Smart Power Management
-
Rechargeable solar batteries coupled with a high capacity non-rechargeable battery backup system for long battery life even at high-frequency reporting and/or inventory storage.
Product Specifications and Certifications
| Mechanical | |
|---|---|

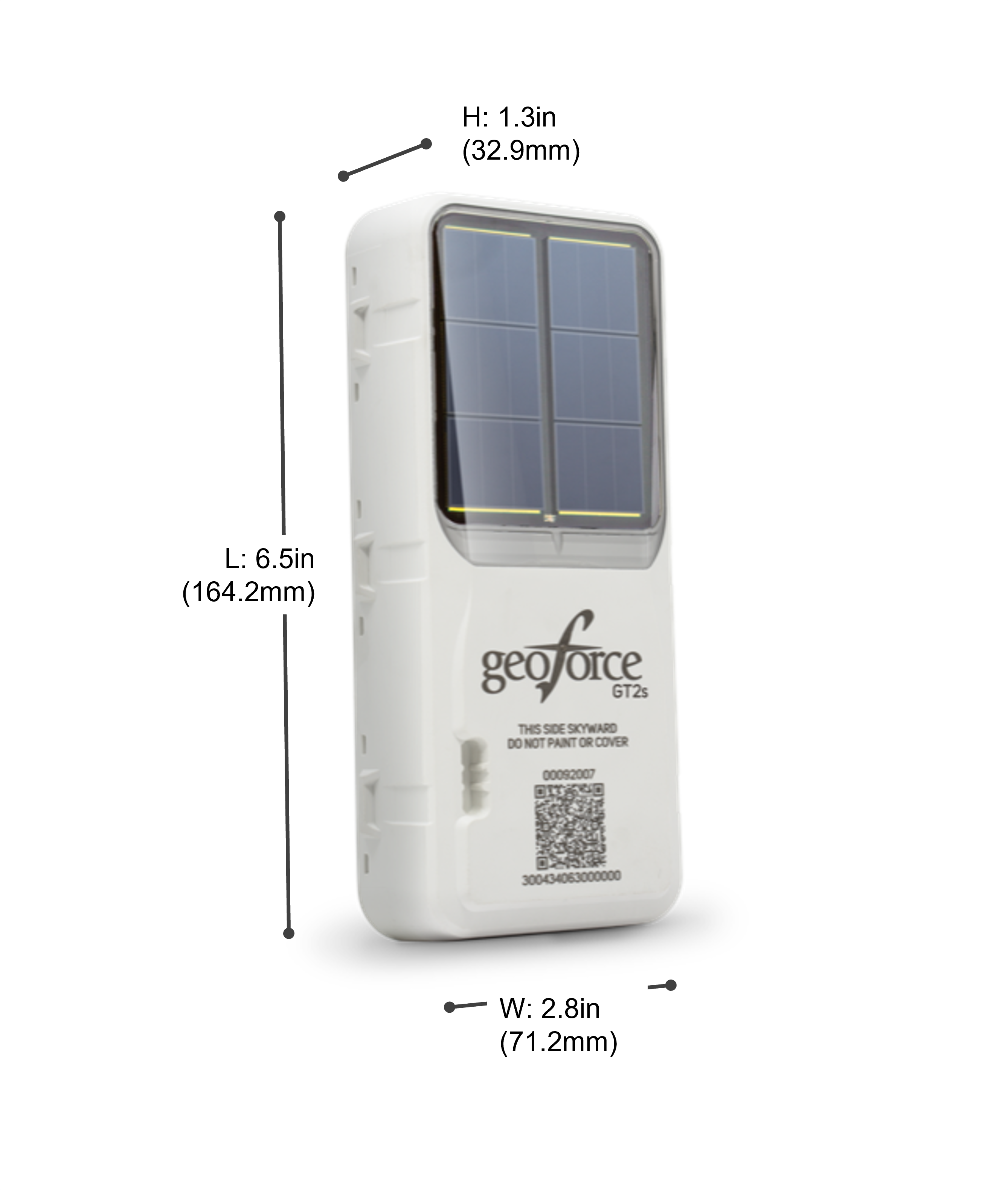

| Dimensions (L x W x H) | 164.2mm x 71.2mm x 32.9mm |
| Weight | 550 g |
| Iridium Embedded Technology | Iridium 9603 Module |
| Environmental | |
| Operating Temperature Range | -40°C to 85°C ℃ |
| Storage Temperature Range | -40°C to 65°C ℃ |
| Ingress Protection | IP68 per IEC60529 to 165ft (50 meters) / IP69K per ISO20653 |
| Vibration Standard | MIL-STD-810G:514.7, IEC60068-2-80 to 7.5Grms Random (5Hz-2000Hz) |
| RF Interface | |
| Frequency Range | 1616 to 1626.5 MHz |
| Battery | |
| Battery Type | Internal, Solar Rechargeable with Primary Batteries. Up to 10-year operational service life. The backup battery capacity provides 2 times per day reporting for up to 5 years with limited solar availability. In storage, with the magnet installed, the backup battery will deplete at approximately 6% per year. |
– FCC: Part 15, Part 25
– Industry Canada (IC): RSS-210, 247, ICES-003 Class B
– EU: RED Directive 2014/53/EU, RoHS Directive 2011/65/EU, REACH Regulation EC 1907
Ordinary Locations Safety
– IEC62368-1, UL 62368-1, CSA C22.2#62368-1,
– UL 60950-22, CSA C22.2#60950-22
ATEX:
– EN 60079-0, EN 60079-11
– CE II 1 G EX ia IIC T4 Ga
– -40°C ≤ Ta ≤ 65°C, IP68
IECEx:
– IEC 60079-0, IEC 60079-11
– Ex ia IIC T4 Ga
– -40°C ≤ Ta ≤ 65°C, IP68
OSHA and USA Hazardous Location Classification:
– UL 60079-0, UL 60079-11, UL 913
– Class I, Division 1, Groups A-D, T4
– Class I, Zone 0, AEx ia IIC T4 Ga
– -40°C ≤ Ta ≤ 65°C, IP68
Canada Hazardous Location Safety:
– CSA 22.2 No. 60079-0,11, No. 157-92
– Class I, Zone 0, Ex ia IIC T4 Ga
– -40°C ≤ Ta ≤ 65°C, IP68
