BlueTraker® LRIT Arctic

Manufacturer : EMA Group

Model : BlueTraker® LRIT Arctic

  • Reliable, Truly Global Long Range Identification and Tracking Solution for All Types of Vessels
  • Cost-effective Solution with Long Operating Life, Exceptional Features and Benefits
  • BlueTraker LRIT is a Fully Integrated Terminal with Embedded GPS and an Iridium® Antenna
  • Designed for Harsh Maritime Environments
  • Unique Double Shell Housing Allows Operation and Even Cold Start at Temperatures As Low As -50°C

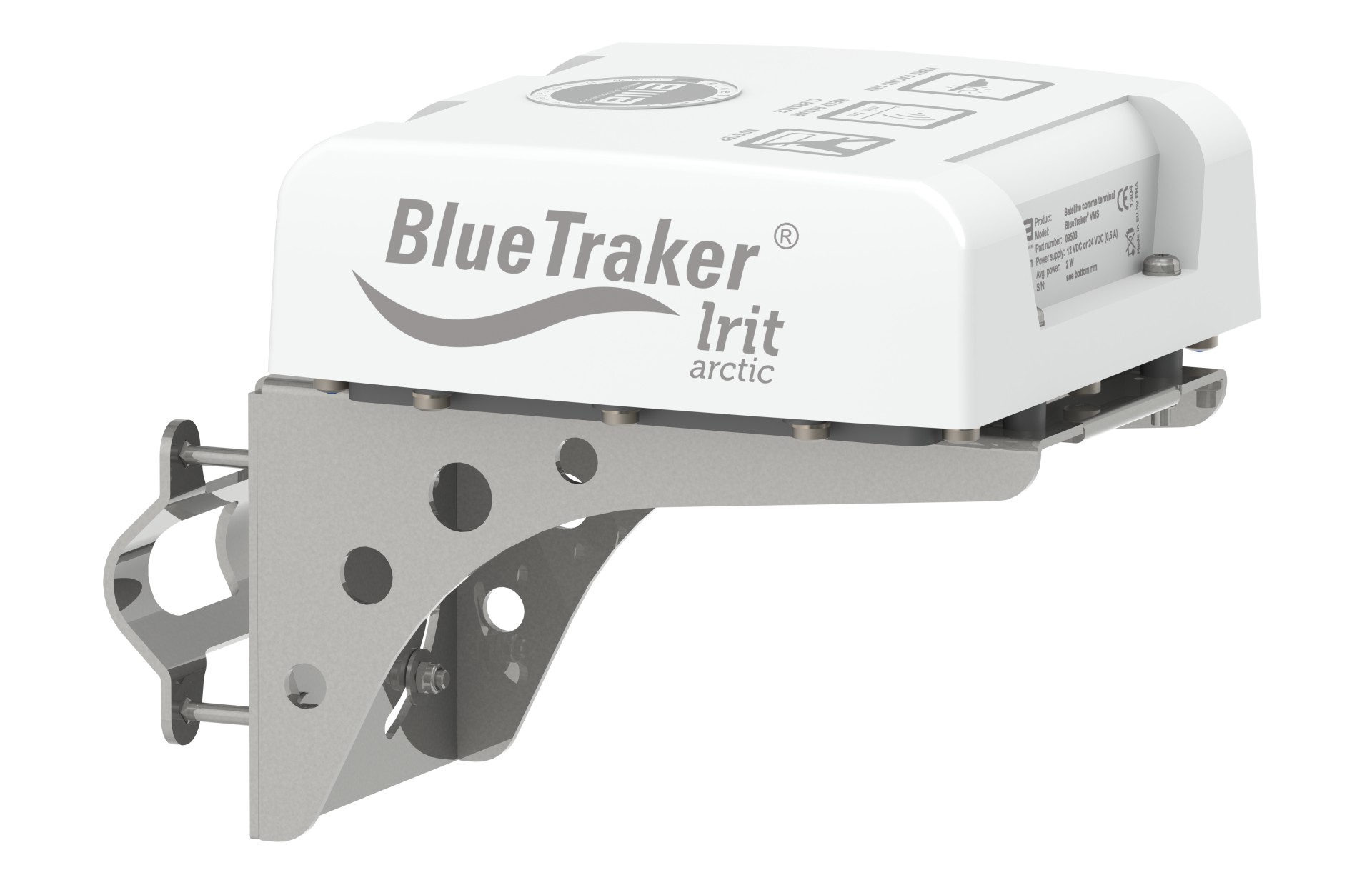

bluetracker lrit artic product image
bluetracker lrit artic product image
bluetracker lrit artic product image
bluetracker lrit artic product image

BlueTraker® LRIT Arctic


Manufacturer : EMA Group

Model : BlueTraker® LRIT Arctic

  • Reliable, Truly Global Long Range Identification and Tracking Solution for All Types of Vessels
  • Cost-effective Solution with Long Operating Life, Exceptional Features and Benefits
  • BlueTraker LRIT is a Fully Integrated Terminal with Embedded GPS and an Iridium® Antenna
  • Designed for Harsh Maritime Environments
  • Unique Double Shell Housing Allows Operation and Even Cold Start at Temperatures As Low As -50°C
bluetracker lrit artic product image

BlueTraker LRIT Arctic Transponder

BlueTraker LRIT Arctic Transponder is an easy-to-install satellite communication terminal that offers a reliable, truly global Long Range Identification and Tracking solution for all vessel types. A cost-effective solution with a long operating life offers vessel position information at predefined intervals and also on-demand position polling.

To survive severe Arctic conditions a distributed web of heating elements throughout the electronic circuitry keeps the terminal operational down to minus 50°C. Additionally, device can cold start from temperatures down from -50°C. All electronic and mechanical components are specifically selected for low temperature operation!

Features

This LRIT terminal is capable of withstanding the extreme cold of Polar Regions, including Sea area A4. Terminal's unique double shell housing resists accelerated cooling in harsh environments. Its smart engineering allows operation and even cold start at temperatures as low as -50°C.

  • Fully Integrated and Robust Design
  • BlueTraker LRIT is a fully integrated terminal with embedded GPS and an Iridium antenna. All its components are packed inside a robust housing with IP68 environmental protection
  • Pole-to-Pole Coverage
  • BlueTraker LRIT terminal offers true global communication coverage through the Iridium satellite constellation, which is the only one offering Pole-to-Pole coverage, including the A4 sea area
  • Optimizes your Running Costs
  • BlueTraker LRIT terminal transmits Automatic Position Reports (APR) using Iridium’s efficient and cost-effective Short Burst Data (SBD) service
  • Free Full Pre-conformance Test
  • The BlueTraker LRIT customers have the unique advantage of an absolutely free and full pre-conformance test
  • A Complete Ship-borne LRIT Solution
  • BlueTraker LRIT terminal is an easy-to-install device, installed above the deck and able to withstand the harshest weather conditions. It comes with a 50m connection cable and mounting accessories
  • Ready to Operate in ARCTIC Areas
  • Terminal's unique double shell housing resists accelerated cooling in harsh environments. Its smart engineering allows operation and even cold start at temperatures as low as -50°C

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 198 x 198 x 67 mm
Volume 2800 cc
Weight 119000 g
Iridium Embedded Technology Iridium 9602 Module
Environmental
Field Label Field Value
Operating Temperature Range IEC 60945:2002: -50°C to +55 ℃
Operating Humidity Range 10 to 100 % RH
Storage Temperature Range -25 to +70 ℃
Durability Standard IEC 60945:2002
Ingress Protection IP68 (Depth 6 m, Duration 30 Min) According to IEC 60529
Vibration Standard IEC 60945:2002
Antenna
Field Label Field Value
Antenna Design Integrated, Non-removable GPS and Iridium Antennas
GPS
Field Label Field Value
Accuracy, Positional 2.5 m
Accuracy, Velocity 0.1 m/s
Accuracy, Timing 10 ns
GPS TTFF <35 s
Operational Limits, Altitude 18000 m
Operational Limits, Velocity 515 m/s
Power
Field Label Field Value
Input Voltage Range 24V DC, 1A
Maximal Current 1000 mA
Maximal Power 20 W

Certifications

Fully Approved and Certified

The BlueTraker LRIT Arctic terminal is fully compliant with the laws and regulations covering Long Range Identification and Tracking. All BlueTraker terminals are IEC 60945 certified and comply with IP68/IP69K. The terminals have been designed to comply with the highest security & safety requirements expected of the customers, making the installation as tamper-proof as possible.

Compliance Approvals, Certifications, & Standards

  • Russian Maritime Register of Shipping Type Approval
  • DNV GL Type Approval
  • Iridium Compliance Certificate
  • US Coast Guard Letter of Compliance
  • Compliant with Related EU Directives
  • IEC 60945:2002 – Maritime Electronic Navigation and Communication Equipment and Systems
  • IEC 60529/IP68 – Water and Dust Ingress Protection;
  • IEC 60950-22 – Information Technology Equipment – Safety – Part 22: Equipment to be Installed Outdoors
  • IEC 60068-2-1 – Low Temperature Functional Test
  • ISO 7367-2 – Electrical Transients Along Supply Lines – Load Dump
  • ISO 16750-2 – Environmental Conditions and Testing for Electrical and Electronic Equipment – Part Two; Electrical Loads – Load Dump

BlueTraker® LRIT Arctic

This LRIT terminal is capable of withstanding the extreme cold of Polar Regions, including Sea area A4. Terminal's unique double shell housing resists accelerated cooling in harsh environments. Its smart engineering allows operation and even cold start at temperatures as low as -50°C.
