SkyLink 5100 (IoT)

Manufacturer : Blue Sky Network, LLC

Model : 5100-IoT

  • Dual-Mode Connectivity with Least-Cost Routing
  • Internet/VPN Access with Wi-Fi Hotspot and Dynamic Firewall
  • Real-Time Asset Control
  • SCADA Transfer
  • GPS Position Tracking

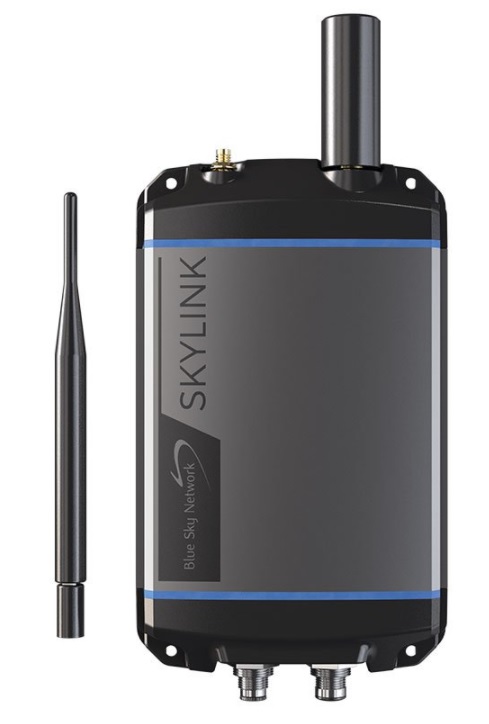

Product photo of Iridium Connected Skylink 5100-IoT for Iridium Certus 100
SkyLink Product Image
Skylink Product Image
Product photo of Iridium Connected Skylink 5100-IoT for Iridium Certus 100
SkyLink Product Image
Skylink Product Image

SkyLink 5100 (IoT)


Manufacturer : Blue Sky Network, LLC

Model : 5100-IoT

  • Dual-Mode Connectivity with Least-Cost Routing
  • Internet/VPN Access with Wi-Fi Hotspot and Dynamic Firewall
  • Real-Time Asset Control
  • SCADA Transfer
  • GPS Position Tracking

IP Data Connectivity for IoT Solutions

The SkyLink 5100-IoT by Blue Sky Network delivers next-generation satellite connectivity to any location on the planet. This compact and versatile communications terminal is powered by the truly global Iridium® network, providing remote monitoring and IP data connections.

As a certified Iridium Connected® product, the SkyLink 5100-IoT is designed for complete business efficiency, safety and continuity coverage. Its slim design allows for easy mounting on fixed or mobile units to transfer real-time data from existing sensors, asset utilization and IoT/M2M monitoring tools. In the field, use this device as a portable communications and media sharing platform for mission-critical updates to and from remote and frontline workers. With the SkyLink 5100-IoT, achieve total connectivity for all assets, in every location, across the globe.

Features

  • Iridium Certus® 100 Midband Services
  • Cellular LTE, 3G, 4G Integration
  • Least-Cost Routing
  • GNSS Positioning
  • Wi-Fi and Bluetooth
  • Local Dynamic Firewall

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions (L x W x H) 203mm x 127mm x 32mm
Weight 730 g
Iridium Embedded Technology Iridium Certus 9770 Module
Environmental
Operating Temperature Range -40 to +70 ℃
Operating Humidity Range ≤ 75% % RH
Storage Temperature Range -40 to +85 ℃
Storage Humidity Range ≤ 93% % RH
Ingress Protection IP65
Power
Input Voltage Range 10 – 34 VDC
Network
Additional Networks Cellular LTE, 3G, 4G
Location Based Services GNSS Positioning
Wi-Fi
Wi-Fi Enabled Yes
User Experience
Mobility Portable or Installed
