Beam PotsDOCK Extreme

Manufacturer : Beam Communications

Model : EXTRMPD

  • RJ11 / POTS Interface, Cable Runs Up to 600m / 2000ft

  • Integrated Bluetooth Connectivity

  • Tracking & SOS (Via the Iridium Extreme Handset)

  • Voice, SMS, SBD & Circuit Switched Data Capable

  • Supports Corded, Cordless or DECT Handset & PBX Integration via RJ11

Beam PotsDOCK Extreme


Manufacturer : Beam Communications

Model : EXTRMPD

  • RJ11 / POTS Interface, Cable Runs Up to 600m / 2000ft

  • Integrated Bluetooth Connectivity

  • Tracking & SOS (Via the Iridium Extreme Handset)

  • Voice, SMS, SBD & Circuit Switched Data Capable

  • Supports Corded, Cordless or DECT Handset & PBX Integration via RJ11

Made for Maritime & In-Building Applications

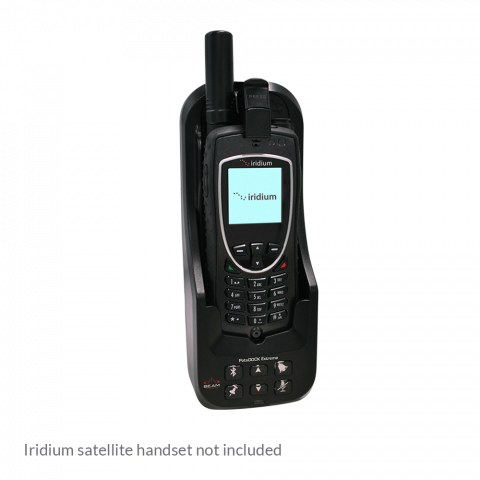

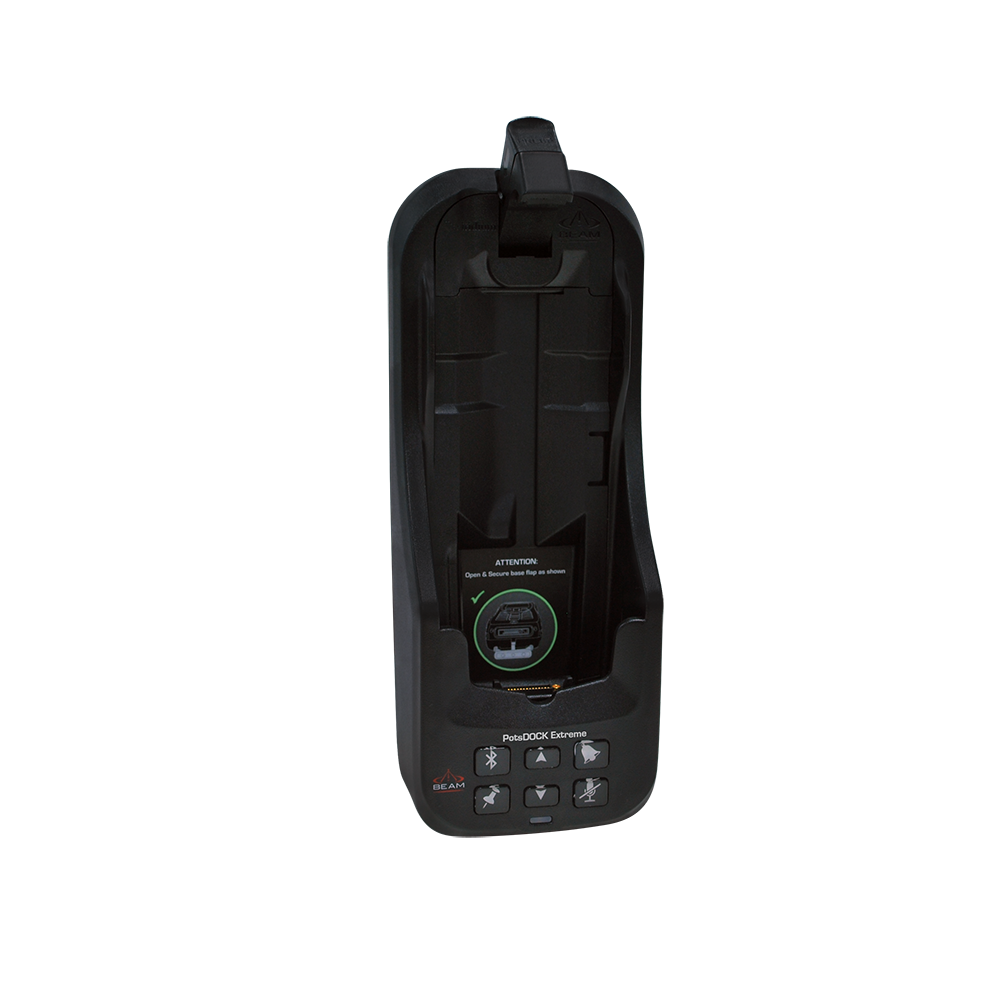

The Beam PotsDOCK for Iridium Extreme is a highly featured docking station for the Iridium Extreme handset that can be used in various maritime, transport or fixed site applications considerably extends the functionality of the Iridium Extreme handset. The intelligent RJ11 / POTS interface enables standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones.

Complete Docking Solution for the Iridium Extreme Handset

The Beam PotsDOCK for Iridium Extreme is a compact docking solution enhancing and extending the capabilities of the Iridium Extreme handset into more applications

  • RJ11/POTS & PBX Intergration

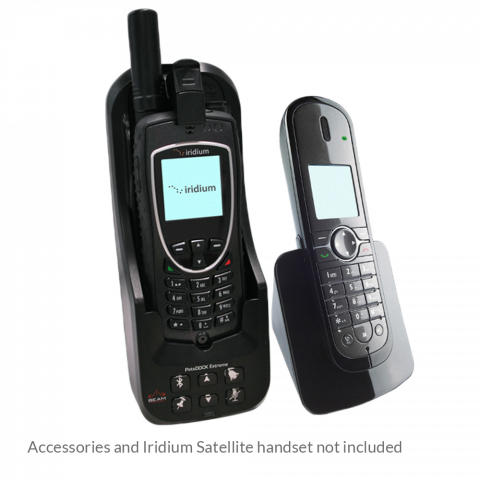

  • RJ11/POTS interface enabling standard corded, cordless or DECT handset connection or alternatively interfaced with a PBX system (Analogue Port) presenting standard ring, busy and dial tones like a standard phone network

  • Integrated Bluetooth Connectivity
  • Features in-built Bluetooth, which supports voice accessories to allow handsfree communication for various applications

  • GPS Tracking & SOS Support
  • Supports and extends the tracking capabilities of the Iridium Extreme giving additional features as well as SOS support on the dock face for emergencies

  • Optional Privacy Smart Handset

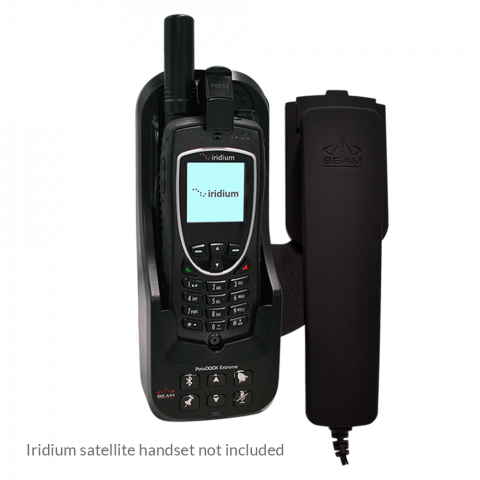

  • Add the optional smart Privacy Handset to provide easier use by various users and a more traditional calling experience. Simply take the handset off hook to answer incoming calls and hung up by placing on hook at call end

  • Alarm Loop / Mode
  • The Beam PotsDOCK provides extra features along with tracking and alert which can be configured to support periodic polling or emergency alert reporting via the alert (Alarm) loop

  • Avoid Long Antenna Cable Runs
  • The Beam PostDock via the RJ11 port allows standard then twisted pair to be run up to 600m from the docking unit, allowing easy installation in large buildings and vessels

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions (L x W x H) 75.9mm x 82.2mm x 212mm
Weight 45 g
Environmental
Operating Temperature Range -20 to+70 ℃
Operating Humidity Range 85 % RH
Storage Temperature Range -30 to +85 ℃
Power
Power Supply 100-250V
Input Voltage Range 9-32V
Maximal Power 6 W
Idle Current Average 25 average mA
Idle Power 1.1 W
Transmit Current Average 400 average mA
Transmit Current Peak .4 peak A

Beam PotsDOCK Extreme

The Beam PotsDOCK for Iridium Extreme is a compact docking solution enhancing and extending the capabilities of the Iridium Extreme handset into more applications
