Beam LiteDOCK for Iridium Extreme

Manufacturer : Beam Communications

Model : EXTRMLD

  • Slim Line Compact Installation

  • Voice, SMS, SBD & Circuit Switched Data Capable

  • USB Data Interface

  • Iridium & GPS External Antenna Connectors

  • Inbuilt GPS Coupling Antenna to Support External GPS Antenna

Beam LiteDOCK for Iridium Extreme


Manufacturer : Beam Communications

Model : EXTRMLD

  • Slim Line Compact Installation

  • Voice, SMS, SBD & Circuit Switched Data Capable

  • USB Data Interface

  • Iridium & GPS External Antenna Connectors

  • Inbuilt GPS Coupling Antenna to Support External GPS Antenna

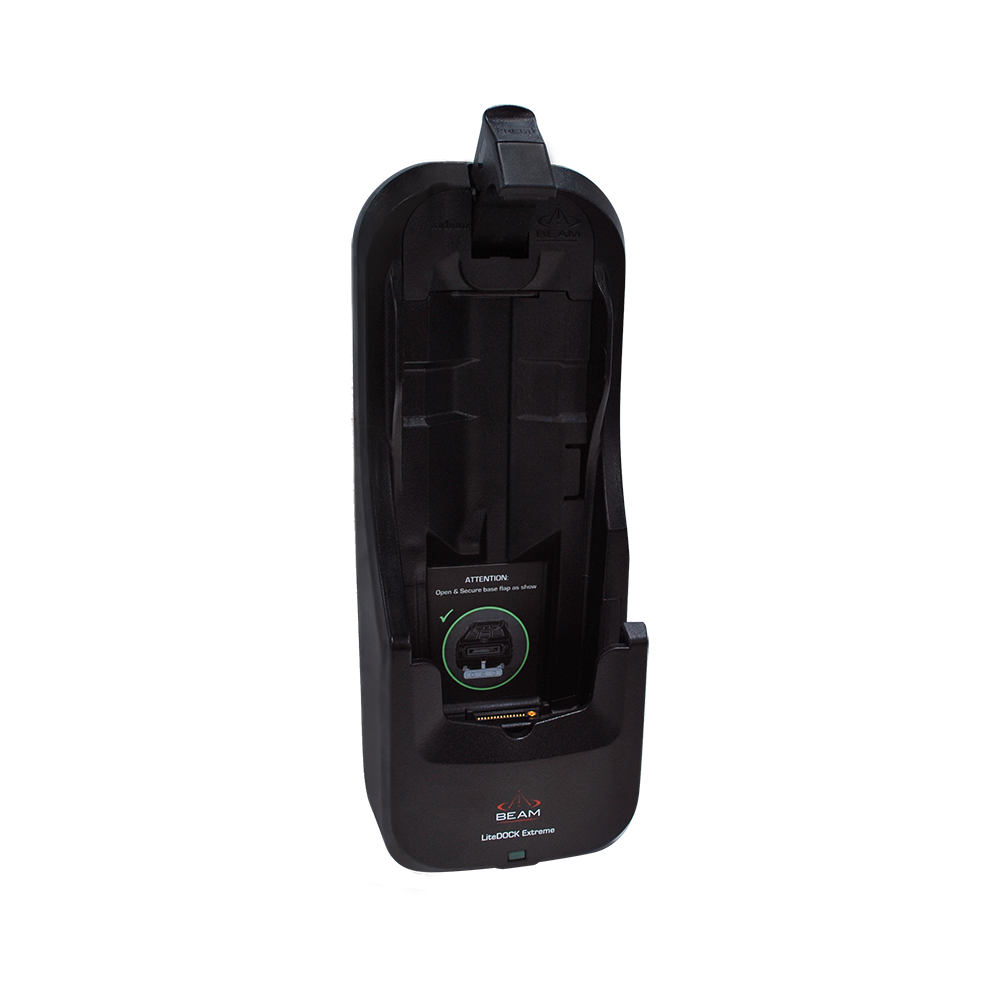

The Beam LiteDOCK for Iridium Extreme, is an entry-level docking station

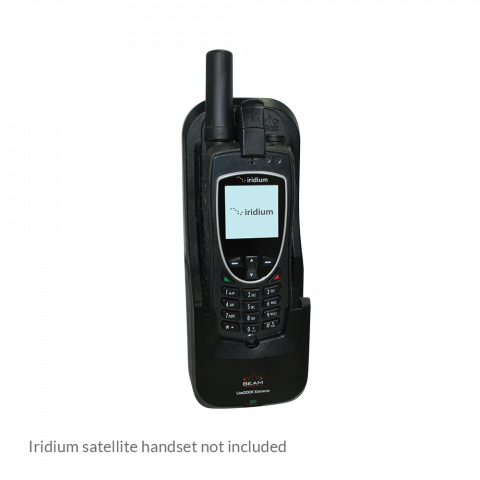

The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilize the SOS emergency, with an inbuilt GPS coupling capability that allows you to connect an external GPS antenna to the dock.

Beam LiteDOCK is a low-cost docking solution for various applications

The Beam LiteDOCK for Iridium Extreme is an entry-level docking station for the Iridium 9575 handset that can be used in various maritime, transport or fixed site applications.

  • Slim Line Compact Installation
  • The Iridium 9575 Extreme handset is easily inserted and removed by the press of a button on the top of the dock

  • Voice, SMS, SBD & Circuit Switched Data
  • Supports all the Iridium network features supported by the Iridium Extreme

  • inbuilt GPS Coupling Capability
  • With the inbuilt GPS coupling capability enabling accurate GPS reporting when used in conjunction with a dual mode antenna for tracking and SOS applications

  • Simple Installation
  • With power being supplied by the Iridium Extreme 9575-car charger or AC plug pack, no additional power wiring required

  • External Antenna Conenctions
  • With both Iridium and GOS external antenna connectors to support all the features of the Iridium Extreme 9575 handset

Product Specifications and Certifications

Technical Specifications

LiteDOCK Specifications Beam LiteDOCK for Iridium Extreme
Mechanical
Dimensions (L x W x H) 75.9mm x 82.2mm x 212mm -
Weight 0.375 g -
Environmental
Operating Temperature Range - -30 to 70
Operating Humidity Range - <85% % RH
Storage Temperature Range - -30 to 80
Power
Power Supply - Included with your Iridium Extreme 9575 Handset
Input Voltage Range - 6V DC
Maximal Current - 850 mA
Calling Power - 5 W

Beam LiteDOCK for Iridium Extreme

The Beam LiteDOCK for Iridium Extreme is an entry-level docking station for the Iridium 9575 handset that can be used in various maritime, transport or fixed site applications.
