Beam PTT Wireless Kit for Iridium Extreme® PTT
Manufacturer : Beam Communications
Model : EXTRMDD-PTT-W1A
Services: Iridium Push-To-Talk
-
Compatible with Existing BEAM DriveDOCK for Iridium Extreme
-
Durable Wireless Speaker & Mic Handset for Audio Up to 500m away from DriveDOCK
-
Its Powerful Speaker Provides a Clear, High-quality Audio that Surpasses the Output of the Iridium Extreme phone.
-
Additional Handset Can be Easily Added – PTT100A
-
Supports All Call Types & SMS / GPS & Bluetooth When the Iridium Extreme PTT is in Standard Voice Mode
Beam PTT Wireless Kit for Iridium Extreme® PTT
Manufacturer : Beam Communications
Model : EXTRMDD-PTT-W1A
Services: Iridium Push-To-Talk
-

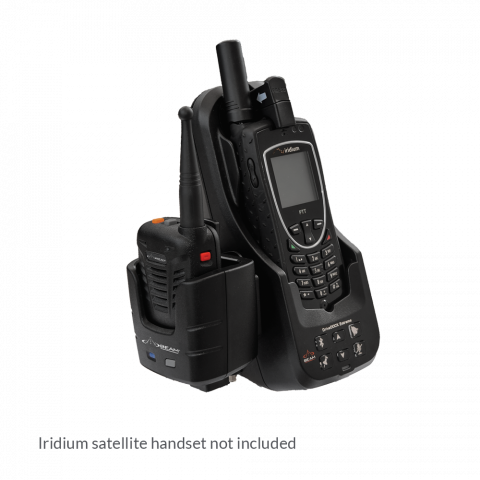

Compatible with Existing BEAM DriveDOCK for Iridium Extreme
-
Durable Wireless Speaker & Mic Handset for Audio Up to 500m away from DriveDOCK
-
Its Powerful Speaker Provides a Clear, High-quality Audio that Surpasses the Output of the Iridium Extreme phone.
-
Additional Handset Can be Easily Added – PTT100A
-
Supports All Call Types & SMS / GPS & Bluetooth When the Iridium Extreme PTT is in Standard Voice Mode
Range-Extended Push-To-Talk Capabilities

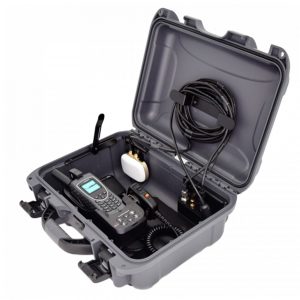

The Beam Iridium Extreme Push-To-Talk Grab ‘N’ Go Wireless Kits provide a powerful communication device that can transmit and receive audio for up to 500m/1640ft away from the case (fitted with external antenna).
Increased Applications From the Iridium Push-to-Talk Service

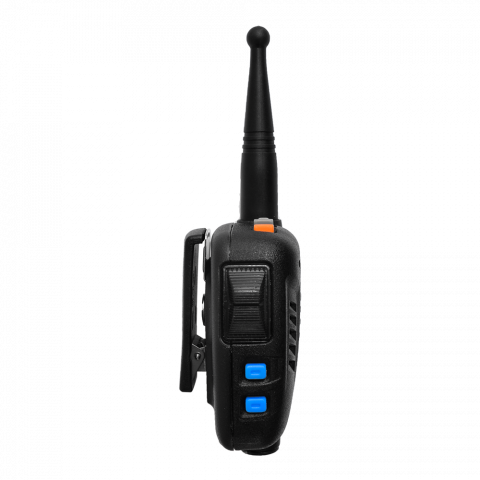

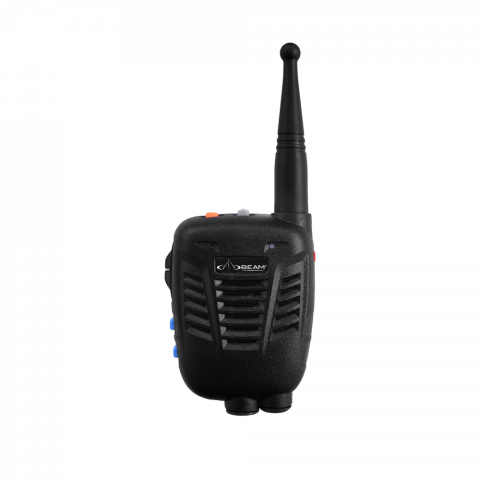

The wireless handset’s rugged premium remote speaker microphone, deliver outstanding clear audio in every situation when connected to the Beam Docking Station for Iridium Extreme. The microphone features a highly tactile PTT button that provides both mechanical and audible feedback every time you press, so you know your call is being sent.
- Wireless Speaker / Mic
-

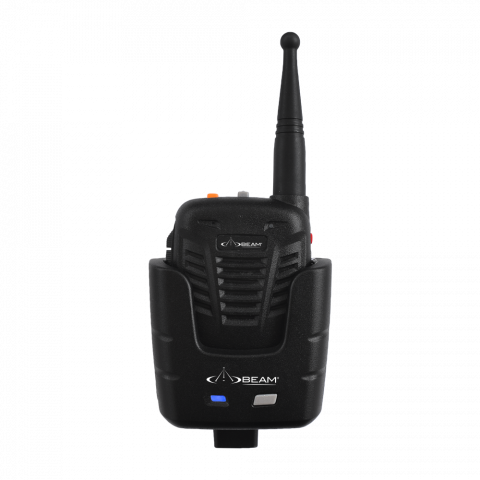

Wireless Push-To-Talk Handset Kit is a powerful communication device that can transmit and receive audio for up to 500m/1640ft away from the base unit
- Flexible Mounting
-
Supports either left or right side mounting on the DriveDOCK
- Supports All Iridium Phone Services
-
Supports BOTH Phone and PTT modes of the Iridium Network depending which mode the phone is on when docked
- Earpiece Options
-
3.5mm earpiece jack on wireless handset / mic for optional earpiece accessories depending on application
Product Specifications and Certifications
| DriveDOCK Wireless Bundle | DriveDOCK Extreme | RF Interface | Wireless Handset | DriveDOCK Extreme Power | |
|---|---|---|---|---|---|
| Mechanical | |||||
| Dimensions (L x W x H) | 88mm x 80mm x 63mm | - | - | - | - |
| Weight | 275 g | - | - | - | - |
| Iridium Embedded Technology | Iridium Extreme PTT , Iridium Extreme Satellite Phone | - | - | - | - |
| Environmental | |||||
| Operating Temperature Range | - | -30 to +70 ℃ | - | - | - |
| Operating Humidity Range | - | <85 % RH | - | - | - |
| Storage Temperature Range | - | -35 to +85 ℃ | - | - | - |
| Ingress Protection | - | Wireless H/Set IP67 | - | - | - |
| RF Interface | |||||
| Frequency Range | - | - | 1616 – 1626.5 MHz | - | - |
| Battery | |||||
| Capacity | - | - | - | 1450 mAh | - |
| Battery Life, Talk Time | - | - | - | 15 hr | - |
| Battery Type | - | - | - | Lithium Polymer | - |
| Power | |||||
| Input Voltage Range | - | - | - | - | 9-32 VDC |
| Maximal Current | - | - | - | - | 700 mA |
| Idle Current Average | - | - | - | - | 70 average mA |
| Idle Current Peak | - | - | - | - | 70 peak mA |
Iridium – CE Compliance – Electrical Safety – RoHS – C-Tick – FCC
