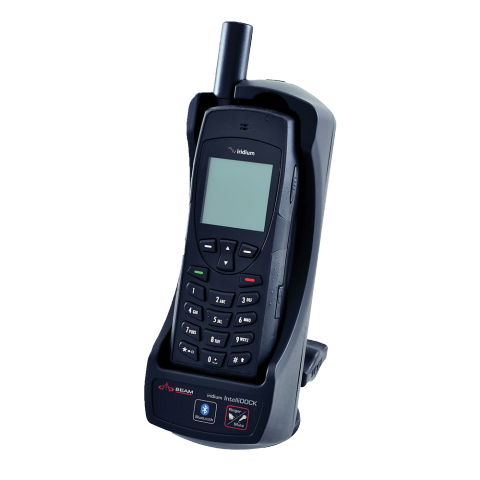

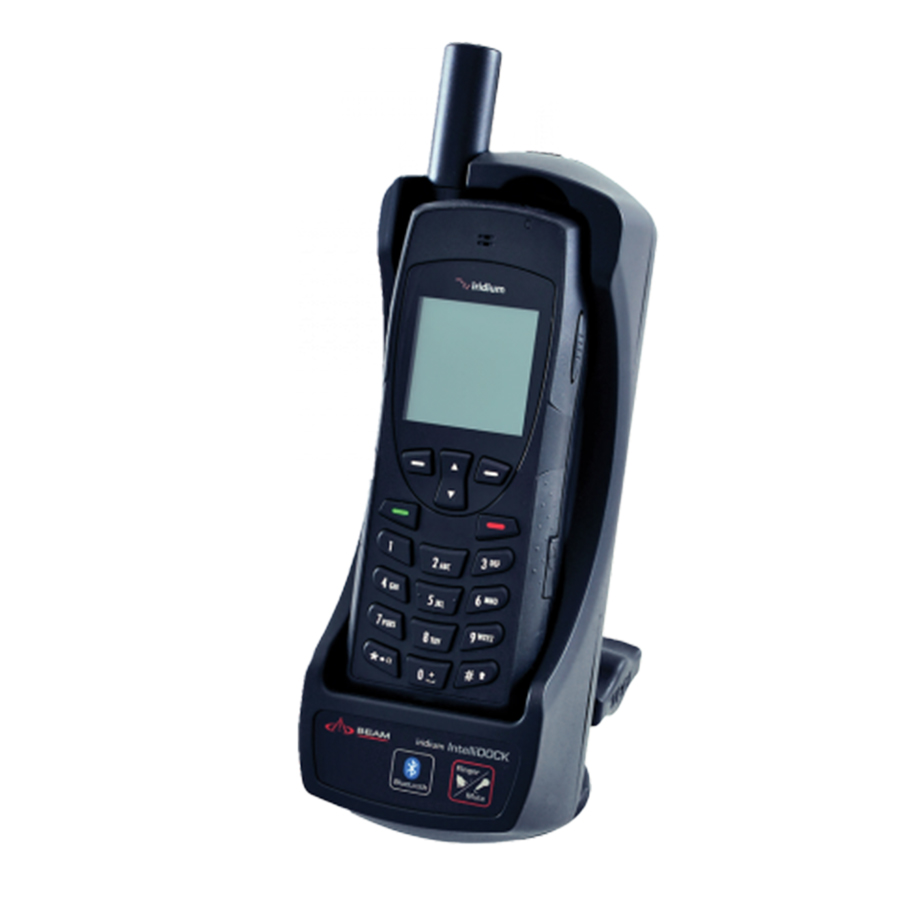

IntelliDOCK 9555

Manufacturer : Beam Communications

  • Slim Line Compact Installation
  • Integrated Bluetooth Connectivity
  • Voice, SMS, SBD and Circuit Switched Data Capable
  • USB Data Interface
  • 9-32V DC Power Input
Beam - IntelliDOCK 9555
Beam - IntelliDOCK 9555
Beam - IntelliDOCK 9555
Beam - IntelliDOCK 9555
Beam - IntelliDOCK 9555
Beam - IntelliDOCK 9555
Beam - IntelliDOCK 9555
Beam - IntelliDOCK 9555

IntelliDOCK 9555


Manufacturer : Beam Communications

  • Slim Line Compact Installation
  • Integrated Bluetooth Connectivity
  • Voice, SMS, SBD and Circuit Switched Data Capable
  • USB Data Interface
  • 9-32V DC Power Input
Beam - IntelliDOCK 9555

Affordable and Powerful
Docking for PTT

The Beam IntelliDOCK 9555, is the ideal low cost docking station for the Iridium® 9555 handset that can be used in various maritime, transport or fixed site applications. The Iridium 9555 handset fits securely and seamlessly into the IntelliDOCK without the need for connecting an additional cable every time you insert the phone. It charges the handset so it’s always fully charged and ready for use.

Secure and Seamless Integration

The Iridium 9555 handset fits securely and seamlessly into the IntelliDOCK without the need for connecting an additional cable every time you insert the phone. It charges the handset so it’s always fully charged and ready for use.

  • Integrated Bluetooth Connectivity
  • Features in-built Bluetooth, which supports voice accessories to allow handsfree communication
  • Seamless Installation
  • The Iridium 9555 handset is easily inserted and removed by the press of a button on the top of the dock

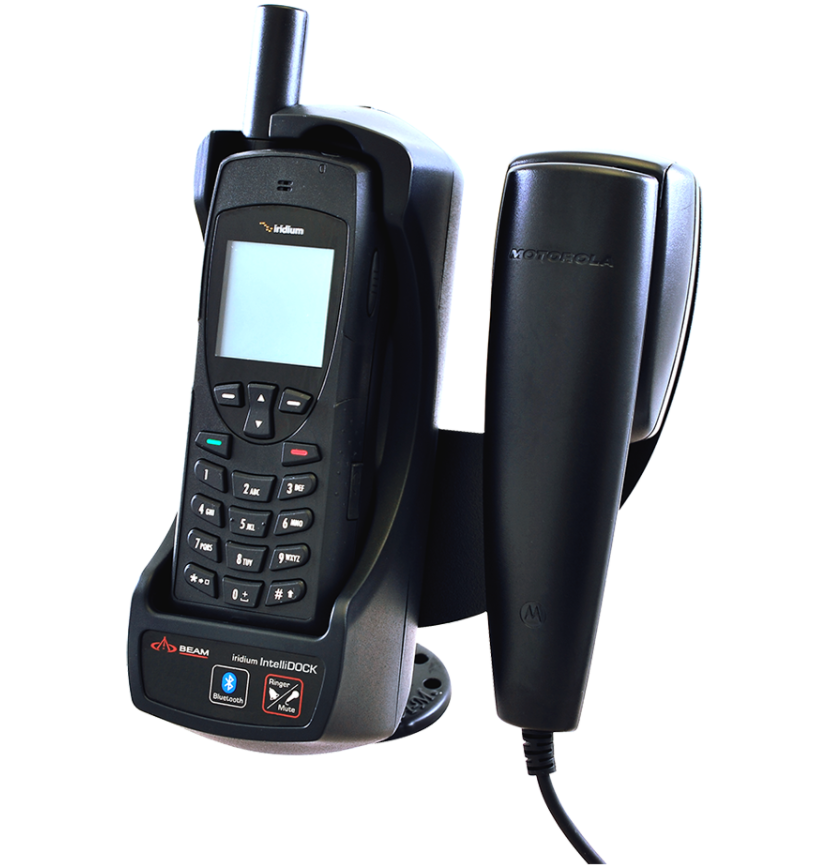

  • Optional Privacy Handset
  • Privacy Handset is an optional accessory that can be attached to the dock to allow privacy calls with auto sensing answer/hang-up intelligence
  • AC Plug Pack 110/240 Input
  • Additional power adapter for extended use time between charges
Beam - IntelliDOCK 9555

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dock
Dimensions ( L x W x H ) 200 x 75 x 65 mm
Weight 320 g
Environmental
Field Label Field Value
Environmental
Operating Temperature Range -20 to +70 ℃
Operating Humidity Range <85 % RH
Storage Temperature Range -30 to +70 ℃
RF Interface
Field Label Field Value
RF Interface
Frequency Range 1616 – 1626.5 MHz
Modulation 2.4 Kbps
Power
Field Label Field Value
Power
Power Supply AC Power Pack: 90-250V AC 50-60Hz, Output 12V 45W
Input Voltage Range 9 - 32 VDC, 2A Max
Maximal Power 6 W
Idle Current Average 45 average mA
Idle Power 0.84 W
Transmit Current Peak 0.5 peak A

Certifications

  • *Independent Aeronautical Certification MUST be Gained Prior to Installation
  • EMC Compliance
  • CE
  • Electrical Safety
  • RoHS
  • C-Tick

IntelliDOCK 9555

The Iridium 9555 handset fits securely and seamlessly into the IntelliDOCK without the need for connecting an additional cable every time you insert the phone. It charges the handset so it’s always fully charged and ready for use.
