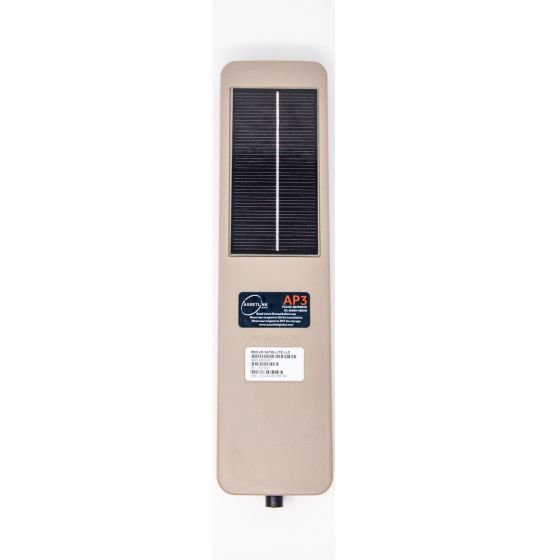

AssetPack-3 Satellite Tracker

Manufacturer : Assetlink Global, LLC
Services: Iridium Short Burst Data® (SBD®)
-
Two-way asset tracking
-
GPS & sensor monitoring solution
-
Solar battery powered
-
Over-The-Air (OTA) command capable

AssetPack-3 Satellite Tracker
Manufacturer : Assetlink Global, LLC
Services: Iridium Short Burst Data® (SBD®)
-
Two-way asset tracking
-
GPS & sensor monitoring solution
-
Solar battery powered
-
Over-The-Air (OTA) command capable
Two-way Asset Tracking & Sensor Gateway
The AssetPack-3 (AP3) global satellite tracker is a highly versatile, low cost, two-way asset tracking and sensor monitoring solution, designed for frequent two-way communication with unpowered assets. Using the Iridium® Satellite Network, the AP3 is a completely enclosed, self-contained, waterproof, dustproof, fully-ruggedized solution that enables pinpoint monitoring of any fixed or mobile asset anywhere on the ground, at sea, or in the air. Available in solar/line power or hard-line only options. The battery is designed to last the lifetime of most industrial equipment. For applications beyond GPS, it can be rapidly configured to monitor a wide range of analog and digital sensors and inputs. Its fully two-way communication capability supports over-the-air commands to change reporting behavior or manage machinery.
Features
- Easy Installation
- Solar-rechargeable Battery
- Two-way, Truly Global Connectivity
- On-board Geofencing
- Built-in Motion Sensor
- Built-in Temperature Sensor
- Optional AES 256 Encryption
Product Specifications and Certifications
Mechanical | |
---|---|
Dimensions (L x W x H) | 31.50mm x 8.1mm x 2.9mm |
Weight | 535 g |
Environmental | |
Operating Temperature Range | -40 to 70 ℃ |
Durability Standard | MIL STD 810 |
Ingress Protection | IP67/NEMA6, Waterproof, Full Immersion at 1m Depth |
Vibration Standard | MIL STD 810 and SAE J145 |
RF Interface | |
Frequency Range | 1616 to 1626.5 MHz |
TDMA Timing | Time Domain Duplex TDMA/FDA ms |
GPS | |
Accuracy, Positional | <5 m |
Battery | |
Capacity | 5300 mAh |
Network | |
Additional Networks | 4G LTE Cat-4/3G and, 3G HPSA/2G |
- Iridium® Certification
- FCC CFR Parts 15 and 25
- Industry Canada CAN ICES-3 (A) / NMB-3 (A)
- CE Mark
- ETSI EN 301 489-1 V1.9.2 & EN 300 440-2
- UL/CSA/EN/IEC 61010-1
- ANSI/ISA 12.12.01-2000 Class I, Division 2
- CAN/CSA C22.2 No. 213 Class I, Division 2
- ATEX Zone 2 Compliant (with ATEX cage)
