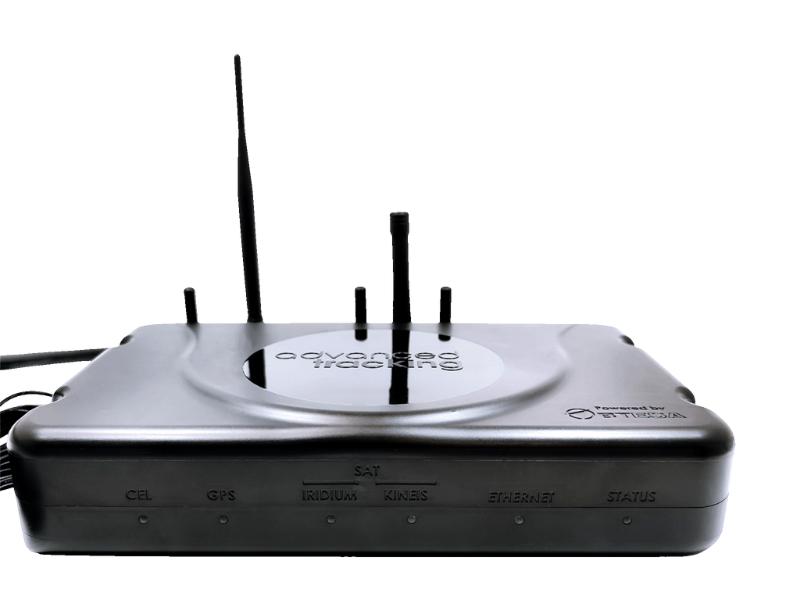

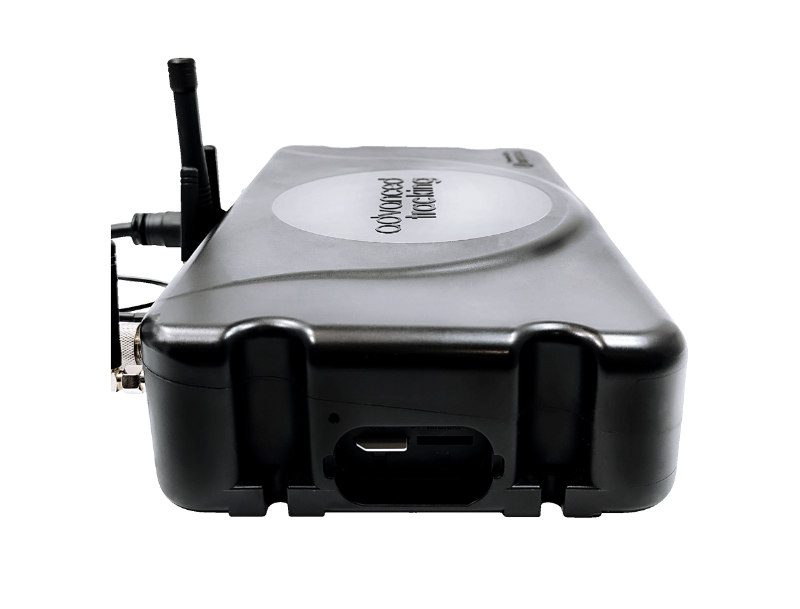

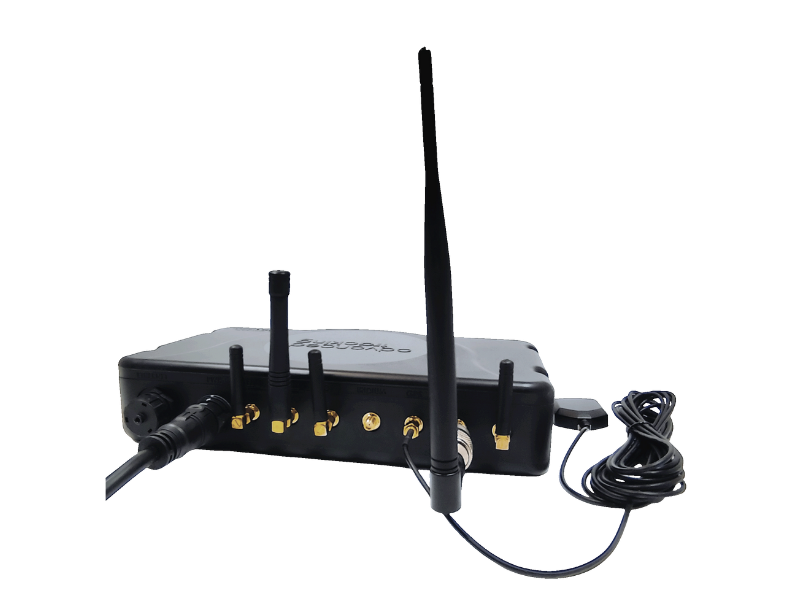

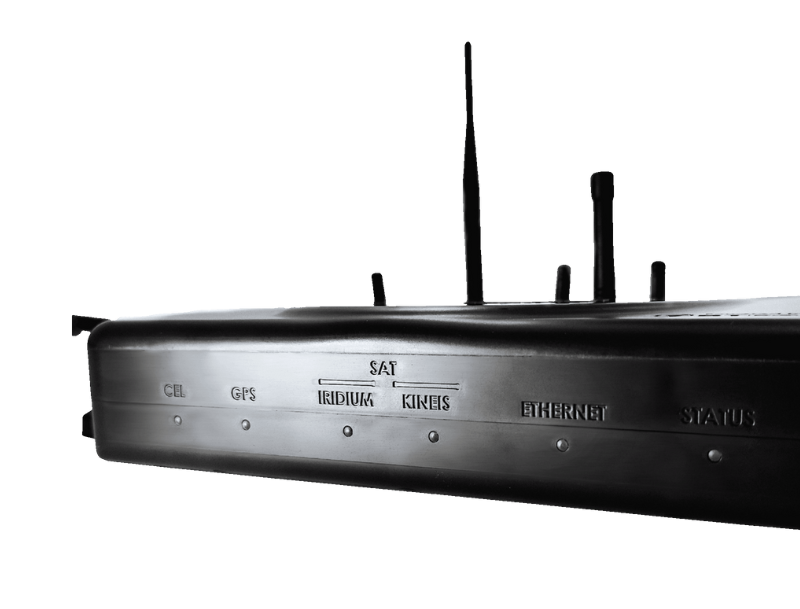

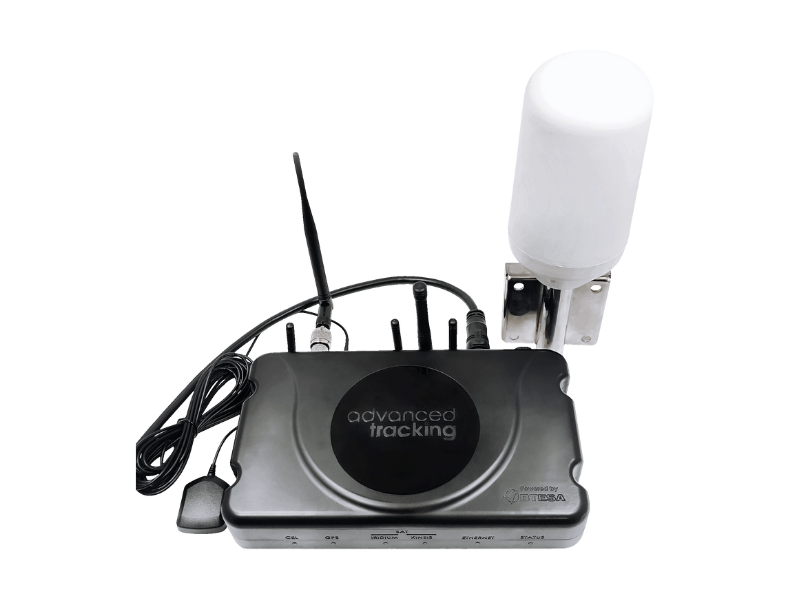

SmartConnect Gateway: Hybrid All-In-One Tracking & Communication System
Manufacturer : Advanced Tracking S.A.R.L.
Services: Iridium Certus® 100
-
Real-time yacht tracking worldwide through our user-friendly Konectis tracking portal
-
24/7 distress alerts service for emergencies—directly connected to an International Rescue Coordination Center—ensuring fast assistance when needed
-
Complete security system that can detect & alert you in case of intrusion, fire, smoke, flood, power loss, & more
-
Private Wi-Fi network for all your devices, allowing seamless switching between 4/5G networks & the Iridium satellite network when sailing
-
Compatibility with other high-speed satellite services
SmartConnect Gateway: Hybrid All-In-One Tracking & Communication System
Manufacturer : Advanced Tracking S.A.R.L.
Services: Iridium Certus® 100
-
Real-time yacht tracking worldwide through our user-friendly Konectis tracking portal
-
24/7 distress alerts service for emergencies—directly connected to an International Rescue Coordination Center—ensuring fast assistance when needed
-
Complete security system that can detect & alert you in case of intrusion, fire, smoke, flood, power loss, & more
-
Private Wi-Fi network for all your devices, allowing seamless switching between 4/5G networks & the Iridium satellite network when sailing
-
Compatibility with other high-speed satellite services
Unmatched Peace Of Mind, Wherever You Sail
Combining the best of satellite and cellular technology, SmartConnect Gateway is the ultimate solution for sailing. Easy to install, user-friendly, and providing global coverage, this revolutionary all-in-one device ensures your yacht’s safety—allowing you to enjoy every moment on your boat with absolute confidence and tranquility.
As a yacht owner you want peace of mind, security, and seamless communication across the globe. Current solutions require multiple different systems on board: tracking requires a dedicated tracking device, security demands an alarm system, Wi-Fi requires a router, and 4/5G connectivity calls for a specialized router. Satellite communication, too, demands its own system. These multiple systems are not only expensive but hard to use.
Features
- All-In-One Device
-
Satellite Tracking, security system, 24/7 distress, secure WiFi, 4/5G, Iridium Certus® 100, satellite high-speed data
- Primary/Back-Up Satellite Connectivity
-
Data Speed: Up to 22Kbps transmit, up to 88Kbps receive
- Weather Routage
-
Get access to free weather routage via the Konectis tracking portal.
- SOS
-
Register for 24/7 SOS monitoring & support.
- Power Supply
-
Use 12V, 24V, or solar panel.
- Installation
-
Easy setup & installation.
- Resistant
-
Dustproof and water resistant IP68
- Router & WiFi
-
Integrated WiFi system & router to manage different connectivity services on board
- NMEA Measurements
-
Measure & manage specific alerts from NMEA: Engine RPM, wind speed, water depth, engine temp, fuel, multiple engine measurements
- LoraWan
-
Protection & alarms via LoraWan Wireless Sensors—can connect up to 100 Sensors
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Iridium Embedded Technology | Iridium Certus 9770 Module |
| General | |
| Dimensions | 280 x 180 x 50 mm |
| Weight | 1700g |
| Iridium Embedded Technology | Certus 100 |
| Operating Temperature Range | -20°C to +45°C |
| Ingress Protection | IP68 |
| Power Supply | 12V, 24V, Solar Pannel (Vox Max 30V) |
| Internal Back-Up Battery | Back-up power up to 24/48hr |
| Data Speed Certus 100 | Up to 22Kbps transmit | Up to 88Kbps receive |
| WiFi Router | Yes |
| 4/5G Router | Yes |
| Additional Networks | Easily Integrates with Terrestrial Cellular or VSAT with Built-in Preferred Routing Switch; Global Navigation Satellite System: GPS, GLONAS, BeiDoi, Galileo |
| Interface | Connect via WiFi network |
| Screen | Delivered with Tablett and management software |
| Antenna | Scan Antenna or Maruwa |
- Iridium® Certification
- CE
- FCC
