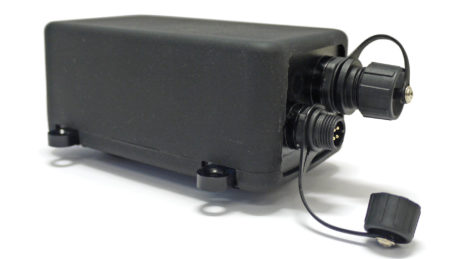

Succorfish - SC2 – Fixed Power GPS M2M IoT

Locate, monitor and control all land, marine and tactical assets operating in the most remote, dangerous and challenging environments anywhere in the world.

Designed and developed by industry experts to withstand the Earth’s harshest conditions, the SC2 provides truly global, 24/7 asset connectivity and the ultimate resilience for demanding applications.

This innovative, multi-functional, turn-key, data transfer solution is hard-wired to any mobile asset and incorporates secure, online software to provide total, real time, pole-to- pole connectivity anywhere in the world.

The SC2 incorporates advanced, dual Iridium satellite and GPS/GPRS/GSM mobile technology to provide accurate global positional data to within TWO METRES.
No other product comes close to providing such a superior, ‘one box’, fit and forget, asset management and data communications solution.

Technical Specifications & Features

  • Anti-tamper IP67 enclosure designed for industry
  • Advanced anti-jamming suppression
  • Anti-tamper cable loop Internal anti-tamper switch
  • No external antenna required – one box solution
  • Milspec 810G/vibration/shock/ temperature
  • Rapid time-to-first fix (TTF) Power Supply: 6-36 VDC Power Consumption @: 12VDC Transmit GSM/GPS: 200mA Transmit Iridium: 300mA
  • AES 256 encrypted data stream IPSEC VPN
  • Power indicator LED
  • Internal battery back-up
  • Triple axis accelerometer
  • RFID connectivity – RS232
  • Power digital input/output cable option (15m)
  • Built-in 5amp control relay
  • USB cable option (5m)
  • Hardware internal geofencing
  • Secure mounting lugs
  • CANbus J1939/CAN Open
  • Anti-vibration mounting pad
  • Internal high gain GPS antenna
  • Dual GPS/GPRS/GSM-Iridium satellite connectivity
  • Internal 3G quad band GSM high performance module
  • E-log ready (Fisheries)
  • Ultra low power consumption
  • 2GB internal memory
  • DOTA firmware link (failsafe protected)
  • Non-volatile memory storage
  • Xbee-Pro provisioned
  • Intelligent power management
  • Jamming interference monitoring
  • Wi-Fi, Bluetooth and 3G connectivity
  • 868MHz communications
  • Operating temperature -40°c to 85°c
  • Position accurate to within two metres, course to 1 degree and instant speed to 0.1 knot
  • AIS-SART capability option
  • Over-the-air variable reporting frequency Cloud-based secure client software Multi-constellation GNSS
