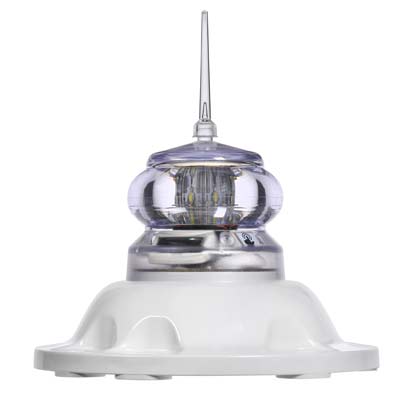

SL-C510 SA Stand-Alone Marine Lantern
By : Sealite Pty Ltd | Model : 5-9NM Marine Lantern
Application: Safety Services
- Intensity Range
- Enhanced Optics
- Solar Efficiency
- OLED Screen with Touchpad
- Bluetooth® Connectivity
The SL-510 SA Stand-Alone Marine Lantern can be remotely monitored and maintained via Bluetooth® or Iridium® satellite technology. It is a 5-9 NM LED Lantern specifically designed to withstand the tough marine environment to provide years of reliable, low maintenance service. The 3 & 4 hole bolt pattern base fits directly onto existing 200mm bolt pattern industry standard mounts for ease of installation.
The tough, polycarbonate lens is specifically designed for use with LEDs and incorporates an environment friendly spike to deter unwelcome bird life. The lens design also ensures that vessel operators clearly see the light from above when passing the AtoN. The design incorporates a conveniently located OLED (Organic Light-Emitting Diode) screen with touchpad allowing maintenance personnel to check the diagnostics of the
lantern with the touch of a button.
The SL-510-SA is manufactured by Sealite who provide innovative products, remote monitoring, control and asset management services for the marine industry.
Features
- Satellite Communications
- GSM Communication
- AIS Type 1 & Type 3 Connectivity
- Enhanced optics
- GPS Synchronisation
- OLED Screen with Touchpad in Lens
- Bluetooth® Connectivity
- Polycarbonate Base & Top
- Environmentally Friendly Bird Spike
Light Characteristics
Stabilized
| Light Source | LED |
| Available Colors | Red, Green, White, Yellow, Blue |
| SL-C510-5D Typical Maximum Intensity (cd)† | Red – 620, Green – 690, White – 1150, Yellow – 570, Blue – 203 |
| SL-C510-10D Typical Maximum Intensity (cd)† | Red – 460, Green – 440, White – 650, Yellow – 320, Blue – 203 |
| Visible Range (NM) | AT @ 0.74: 5-9NM |
| Horizontal Output (Degrees) | 360 |
| Vertical Divergence (Degrees) | 5 or >10 |
| Available Flash Characteristics Up to: | Up to 310 IALA Recommended (User Adjustable) |
| Intensity Adjustments | Multiple Intensity Settings |
| LED Life Expectancy (Hours) | >100,000 |
Electrical Characteristics
| Current Draw (mA) | Refer to Sealite Solar Calculator (Variable up to 10W) |
| Circuit Protection (cd)† | Integrated |
| Nominal Voltage (V) | 12 |
| Autonomy (Nights) | >110 (14 Hour Darkness, 12.5% Duty Cycle) |
Physical Characteristics
| Body Material | LEXAN® Polycarbonate – UV Stabilized |
| Lens Material | LEXAN® Polycarbonate – UV Stabilized |
| Lens Diameter (mm/inches) | 98 mm (3.375 in) |
| Lens Design | LED Optic |
| Mounting | 3 & 4 Hole 200mm Bolt Pattern |
| Height – Base (mm/inches) | 218 mm (8.58 in) |
| Width (mm/inches) | 228 mm (8.98 in) |
| Mass (kg/lbs) | 1.2 kg (2.65 lbs) |
| Product Life Expectancy | 15 Years Plus |
Environmental Characteristics
| Shock | MIL-STD-202G Test Condition H, Method 213B 30G Vertical & 35G Horizontal Shock |
| Vibration | MIL-STD-202G, Test Condition B, Method 204D 5G in All Axes |
| Ice Loading | Rated to Withstand 22kg/m2 |
| Salt Fog | MIL-STD-810F Method 509.4 |
| Rain Test | MIL-STD-810F Method 506.4 Procedure 1 |
| Wind Exposure | Rated to Withstand 140 Knots |
| Humidity | MIL-STD-810F Method 507.4 (0 – 100%, Condensing) |
Compliance
| Temperature Range | -30 to 50°C |
| CE | EN61000-6-2:2005 IEC61000-4-2:2008 IEC61000-4-3:2010 IEC61000-6-1:2016 |
| IALA | Signal Colours Compliant to IALA E-200-1 |
| Quality Assurance | ISO9001:2015 |
| Ingress Protection | IP68 |
Options Available
- IR Programmer
- GSM Communications
- Satellite Communications
- AIS
Warranty
- 3 Year Warranty
