SL-C310 Solar Marine Lantern

Manufacturer : Sealite Pty Ltd

Model : SL-C310

  • Enhanced Optics with and Intensity Range of 3-5NM+

  • GPS Synchronisation

  • High Performance, Premium-grade Solar Modules with Active MPPT (Maximum Power Point Tracking)

  • Satellite Communications Enabling Two-Way Monitoring

  • Three Chassis Sizes to Accommodate Larger Battery Capacity and Additional Solar Charging Capacity

Sealite SL-C310 Product Image
Sealite SL-C310 Product Image
Sealite SL-C310 Product Image
Sealite SL-C310 Product Image

SL-C310 Solar Marine Lantern


Manufacturer : Sealite Pty Ltd

Model : SL-C310

  • Enhanced Optics with and Intensity Range of 3-5NM+

  • GPS Synchronisation

  • High Performance, Premium-grade Solar Modules with Active MPPT (Maximum Power Point Tracking)

  • Satellite Communications Enabling Two-Way Monitoring

  • Three Chassis Sizes to Accommodate Larger Battery Capacity and Additional Solar Charging Capacity

Sealite SL-C310 Product Image

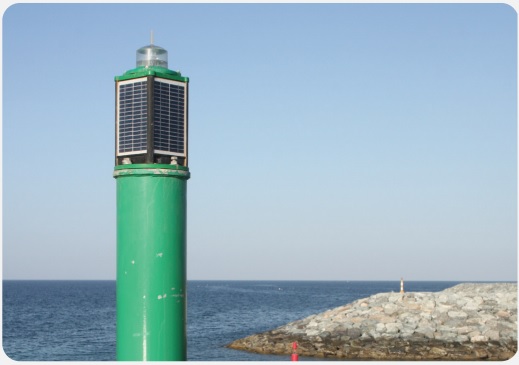

Robust. Self-contained. Solar Lantern

The SL-C310 series are robust, completely self-contained 3-5NM+ Solar LED Lantern marine lanterns. They are designed to be maintenance-free, installed in minutes, and have a service life of over 15 years. These lanterns are available in three (3) chassis size configurations; compact, standard and extended. They accommodate larger battery capacity and additional solar charging capability. Satellite connectivity is available as an option.

The four (4) premium-grade solar modules are integrated into the assembly, and mounted to collect sunlight at all angles. The lanterns are IP68 water ingress rated with a handle incorporated into the chassis for safe lifting.

The SL-C310 series is available with GPS Synchronisation as standard. Two (2) or more lights can be synchronised to flash in unison via an internal GPS module. The SL-C310 series may also be fitted with Satellite Communications Module or GSM Module – enabling users to access real-time diagnostic data and two-way monitoring and control through the Star2M® portal.

Features

  • Solar Efficiency
  • Designed with next generation solar technology including individual active MPPT (maximum power point tracking), maximizing the power extracted from the solar panels for improved efficiency

  • Satellite Communications via Star2M
  • The SL-C310 range is available with an optional integrated Iridium® Satellite module enabling two-way monitoring and control using the Iridium Low-Earth Orbit satellite network

  • Various Size Options
  • Available in three chassis sizes (compact, standard and extended) to accommodate larger battery capacity and additional solar charging capability

  • Intensity Range
  • The SL-C310 lantern range utilize leading technology LEDs for a visible range of 3-5NM+

  • Enhanced Optics
  • The optics and lens design ensures that vessel operators can clearly see the light from above when passing the AtoN

Product Specifications and Certifications

Technical Specifications

Compact Model SL-C310 Solar Marine Lantern Power Supply (base model)
Mechanical
Dimensions (L x W x H) 484mm x 234mm - -
Weight 9070 g - -
Iridium Embedded Technology Iridium 9602 Module - -
Environmental
Operating Temperature Range - -30 to 50 ℃ -
Operating Humidity Range - MIL-STD-810F method 507.4 (0 – 100%, Condensing) % RH -
Ingress Protection - IP68 -
Vibration Standard - MIL-STD-202G, Test Condition B, Method 204D 5G in all Axes -
Wind Resistance - Rated to Withstand 140 Knots mph -
Battery
Capacity - - 12 mAh
Battery Type - - SLA (Sealed Lead Acid)

Certifications

  • CE: EN61000-6-2:2005, IEC61000-4-2:2008, IEC61000-4-3:2010, IEC61000-6-1:2016
  • IALA: Signal Colors Compliant to IALAE-200-1
