SAT4Di from iLinkData

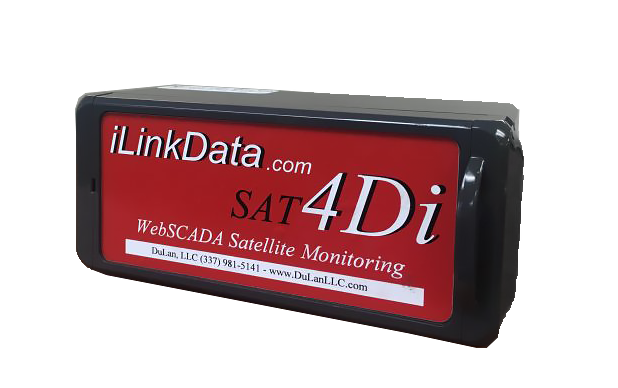

Introducing the SAT4Di from iLinkData. The SAT4Di satellite alarm device provides true exception-based alarming utilizing the Iridium worldwide communication network. The SAT4Di delivers status messages for numerous applications in the oil and gas, utility, and agriculture industries, including tank levels, power fail, pumps and compressors.

Technical Specifications & Features

  • The SAT4Di data can be hosted by iLinkData or pushed directly to your in-house SCADA system
  • “Out the box” ready for operations within minutes
  • No long-term contracts required
  • 4 discrete digital Inputs
  • Status LEDs
  • Low latency/near real time delivery
  • Rated for Class 1, Division 2, Groups C, D, T4
  • Cost effective low packet data transfer
  • Unlimited users
  • Receive alarms via email, text and web application
  • Web interface provides
    • alarm history
    • setup notification list
    • configure input
  • No license or software required
  • Operate several years on a lithium power pack
  • No solar panel required
  • Integrated Satellite Modem with internal antenna
  • Easy installation
Battery Input 3 D-Cell Lithium pack (Part Number 3xD)
Operating Temperature -40°C to +85°C
Antenna Internal patch antenna
Digital Inputs Four Dry Contact* Inputs
*no energy is supplied to contacts, completely passive and isolated



Wiring Schematic

Wiring schematic for the SAT4Di satellite tracking product
