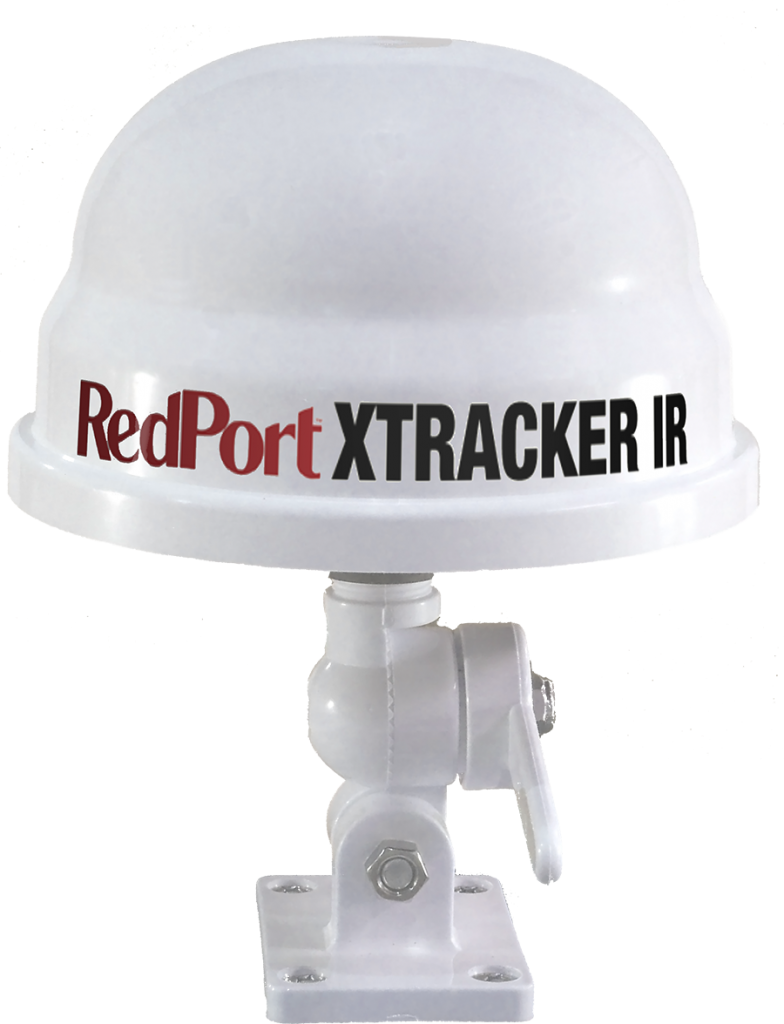

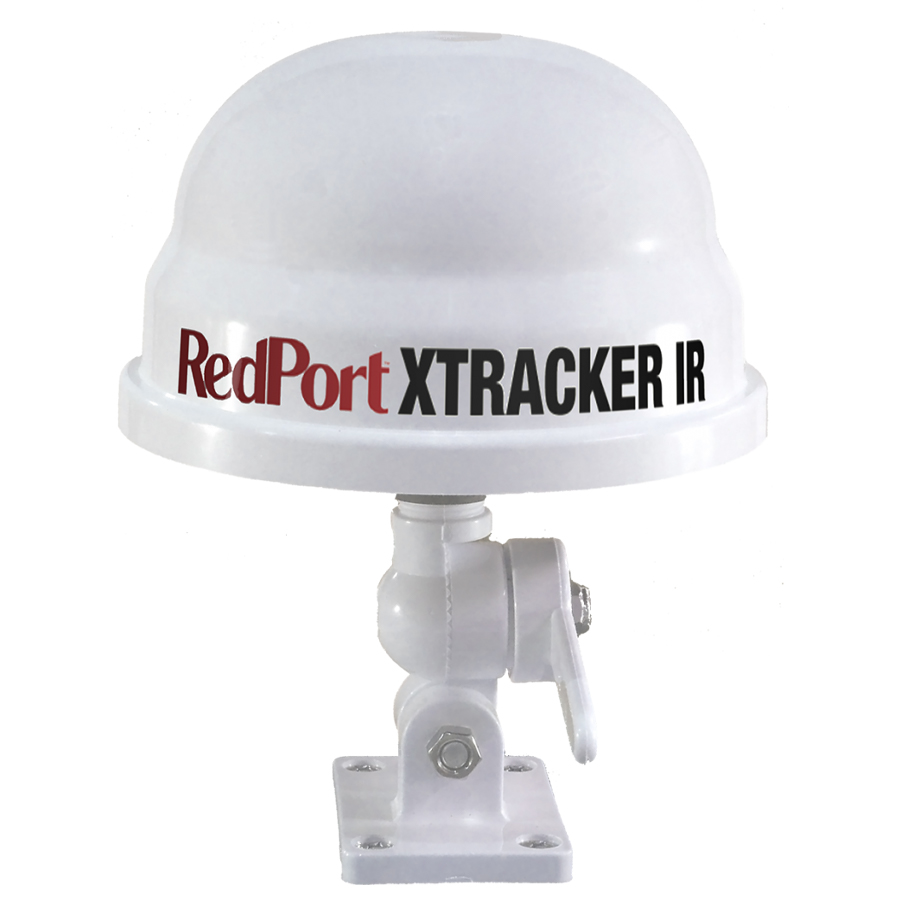

RedPort XTracker IR

XTracker IR is a robust, dependable and extremely compact satellite tracking terminal that sends out GPS position reports at pre-programmed intervals from anywhere on the planet. XTracker IR uses Iridium technology and because of Iridium’s pole-to-pole coverage, offers truly worldwide satellite position reporting. Position reports contain date, time, latitude, longitude, and average course and speed over the ground. XTracker’s modest power requirements make it ideal for remote locations where solar panels or batteries are the only source of electricity.

The XTracker IR is installed quickly and easily on a standard 1″ threaded antenna mount. XTracker IR starts submitting GPS position reports for satellite vessel tracking immediately upon power up. Everything is controlled from shore, including position reporting and polling intervals. There are no buttons or switches on the XTracker IR unit.

How it Works

Tracking for the XTracker IR is provided through RedPort Tracking and consists of a detailed, robust online tracking interface that provides: Real-time Position and Tracking Longitude and latitude info Emergency alarm/ SOS/Movement alarm/ Overspeed alarm/ Border crossing alert. Geo-fence alarm Course and Speed (on web-based tracking site) Web-based tracking or mobile-phone-based tracking Central Monitoring system (web-base) History of tracking movements Ability to track hundreds of vessels or assets on one web-based monitoring system Additionally, a fee for the airtime required to send the satellite GPS pings may be required by your satellite dealer. Contact your dealer to learn about airtime fees and pricing

Technical Specifications & Features

Simple installation – mount with sky view and supply power Starts reporting immediately upon power up No buttons or switches – everything is controlled from shore Monitor vessel from password-protected website or with Google Earth Email reports to a predefined address

  • Length: 6.69 in. (170mm)
  • Width: 3.54 in. (90mm)
  • Height: 3.94 in. (100mm)
  • Weight: 2.42 lb (1.1kg)
  • Operating Temperature Range: 31°F to 158°F (–35°C to 70°C)
