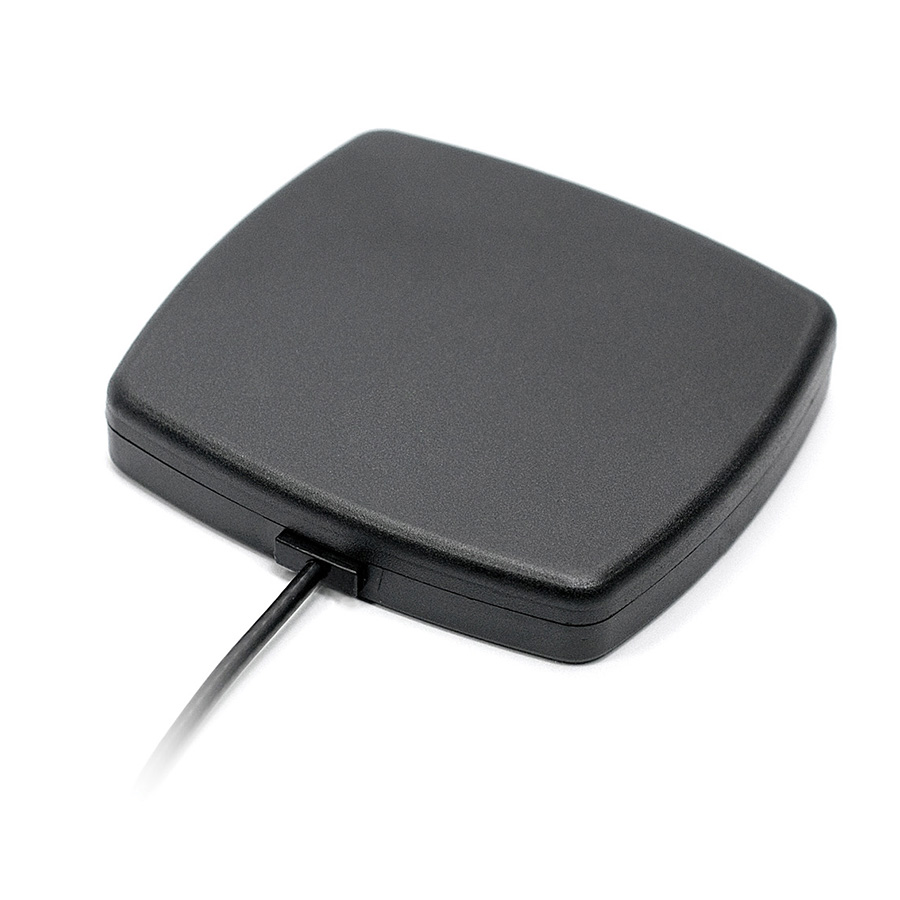

2J-Multiband 2J6026

Overview

  • Comes with Embedded Magnet and Double-sided Pad
  • Iridium Only
  • Groundplane Independent
  • 1.5m of Low Loss RG174/LMR100
  • Small Footprint, Low Profile

Technical Specifications & Features



Electrical Specifications

  Frequencies   Iridium (1.616 – 1.626 GHz)
  Impedance   50 Ohms
  Polarization   RHCP
  Gain   3dBiC
  VSWR   <1.5:1
  Operating Temperature   -40°C to +85°C



Dimensions

  Height   12.81 mm
  Length    80 mm
  Width    76 mm
  Weight   70 g (Weight Includes Cable)

Resources

Login to access additional resources

Partner Products
Last Updated
Size
Document Name
2J Antennae SK - Multiband 2J6026M Antenna - Datasheet
File Name
PP_2J Antennae SK_Multiband 2J6026M_Datasheet
Vendor
Multiband Antennas Limited
Description

Product datasheet for 2J 6026M Antenna.

File Type
PDF
File Size
563.67 KB
File Version
1.0
Date
January 17, 2018 06:28 PM EST
