EC-100

Overview

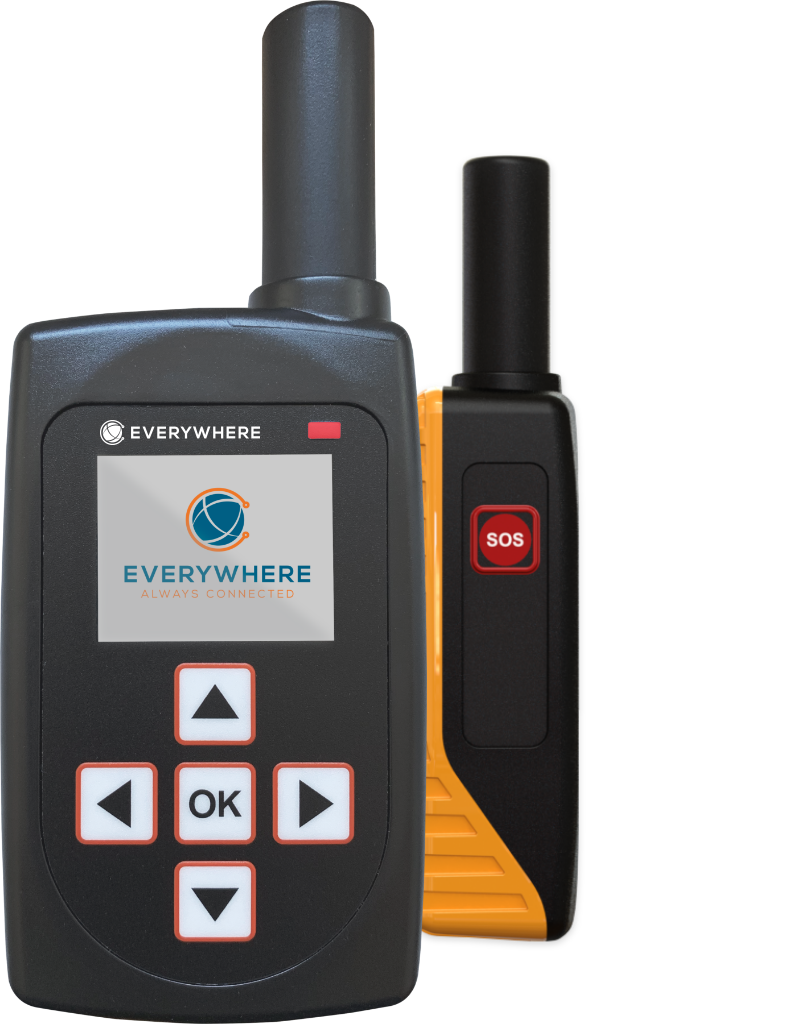

The EVERYWHERE Communicator EC-100 is a handheld satellite communications device that provides Global SOS, secure personnel and team tracking and communications to provide mobile situational awareness and duty of care for your company’s most important asset – your people. The EC-100 combines an Iridium® Short Burst Data (SBD) modem for global communications, GPS and a Bluetooth link to the EVERYWHERE Smartphone App to enable communications among personnel and teams in the field.

Integrated with the EVERYWHERE Hub, the EC-100 enables end users to communicate with the Hub, as well as with other Communicators and Smartphone App users. In addition, the EC-100 tracks the user’s location, and supports a two-step SOS activation. The device can operate in standalone mode or paired via Bluetooth to the EVERYWHERE Smartphone App. The device also supports both predefined and freeform text messages. The EC-100 also features a programmable hotkey, enabling the user to perform a customer-defined operation using a single step.

Key Features

  • Small, Lightweight Handheld Form Factor
  • Intuitive Menu-based User Interface
  • Iridium® for Global Satellite Communications
  • GPS for location and tracking
  • Integrated, Multi-color, LCD User Interface
  • Bluetooth / BLE Connectivity
  • Pairs with Optional Android and IOS Smartphone App
  • Ability to Transmit / Receive Data and Messages Between Other Teamed Devices and the EVERYWHERE Hub
  • Initiate SOS Alerts or Receive Alerts from Other Team Devices
  • Secure Communications



Technical Specifications

Specification Result
Manufacturer Everywhere Communications
Part Number EC-100
Country of Origin USA
Modem Manufacturer Iridium
Modem Part Number 9603N
Height (w/o Antenna) 11.5 cm / 4.53 in
Weight (w/ Antenna) 15.1 cm / 5.94 in
Width 6.8 cm / 2.68 in
Thickness 3.5 cm / 1.38 in
Weight 192 g / 6.75 oz
Temperature –40°C to +85°C (–40°F to +185°F)
Operating Humidity < 75% RH
Battery Life 25 Hours / 10 Minute Track Points
Drop MIL-STD 810
Display Size 457.2 cm / 1.8 in
Display Specs 128 x 160 Full Color TFT
Battery Type (internal/removable) 2000 mAH Internal Rechargeable Li-ion Battery
Removable Antenna Yes
Interfaces (USB) Mini USB
Interfaces (Bluetooth) Bluetooth 4.0 and Bluetooth Low Energy (BLE)
Interfaces (Satellite) Iridium Short Burst Data (SBD)
Companion Mobile App Android and iOS
