Blue Sky Network - HawkEye Personal Tracker Plus (HEPT+)

Overview

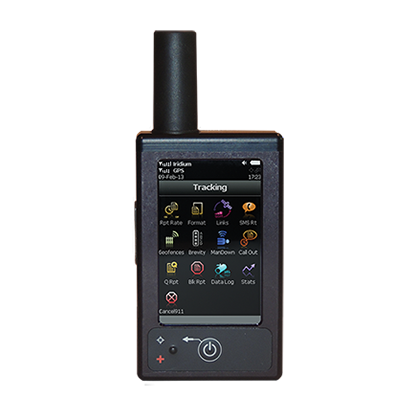

Blue Sky Network’s HawkEye Portable Tracker Plus (HEPT+) is a GPS Tracking device that provides dual-mode connectivity and harnesses the power of the Iridium Satellite network and GSM satellite tracking to ensure the safety and constant communication of fleets or persons dispersed in remote locations while providing cost-efficient data service. When used in combination with SkyRouter, the HawkEye PT Plus offers portable tracking and fleet management of any aviation, land and marine asset – in real-time from anywhere in the world with pole-to-pole coverage.

The HawkEye Portable Tracker Plus (HEPT+) utilizes GPS tracking to locate the exact position of fleets and two-way SMS and free form messaging to allow users to remain in constant contact with command centers. Device control is now made easy with the integration of a new touchscreen interface.

Technical Specifications & Features

  • Iridium Satellite and GSM Cellular (Dual-mode)
  • Utilizes New SkyRouter Cloud-based Web Portal
  • Touchscreen LCD user Interface
  • Supports Two-way SMS and Free-form Messaging
  • Guarded Quick Position (QPOS) Button
  • USB Interface for Charging
  • Supports Bluetooth for device Configuration
  • Rechargeable Lithium-Ion Battery
  • Lightweight 7.8 Ounces
  • Small Form-factor: 4.1” x 2.3” x 0.9”
  • 1-Year Warranty



  • Dimensions: 4.1″ x 2.3″ x 0.9″ (104 mm x 58 mm x 23 mm)
  • Weight: ~7.8 Ounces (221 g)
  • Data/Power Interface: USB and Bluetooth
  • Display: Resistive Touchscreen (Can be used with gloves)
  • Guarded QPOS Push Button
  • Enclosure: Hard-anodized Aluminum (EMI/EMC Shielded)
  • Input Voltage Range: 2.7VDC to 5.5VDC (Standard USB)
  • Battery: 1.95 A-Hr Rechargeable Lithium-Ion
  • Sleep Mode: < 35uA in Between Reports
  • Transmission Mode: 1.12mA-Hr per Report
  • Operating Temperature: 22°F to +158°F (30°C to +70°C)
  • Operating Humidity: < 75% RH
