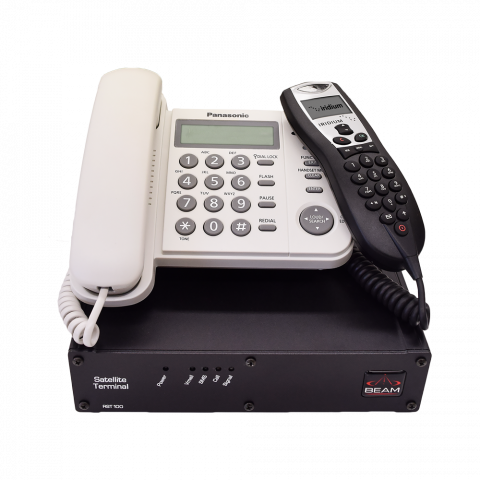

Beam - RemoteSAT RST100B Terminal

Overview

RemoteSAT has been designed to be used in fixed site, maritime and emergency service applications where permanently installed reliable communications services are required. The RemoteSAT device enables a Beam TrackALERT RST030 alert tracking interface to be connected directly to the terminal and there is also a purpose built back-up battery available that can provide up to 24 hours standby time for mission critical applications.

The terminal is capable of presenting dial, busy and ring tones to suit country-specific requirements as well as auto-dial or restricted dial functionality. The terminal also supports access to the complete range of data services provided by Iridium including Short Burst Data, Circuit Switched Data and Direct Internet as well as SMS.

The RST100 – Remote Satellite Terminal:

  • Provides a reliable and cost-effective telephone or data service connection when a wired connection is not available, via the Iridium network—a satellite-based, wireless communications network.
  • Allows the connection of standard telephone handsets and other telecommunications devices.
  • Emulates the functionality of the Public Switched Telephone Network (PSTN).
  • Includes two wire voice connections and a Hayes compatible modem, providing a serial socket for a computer, a socket for the connection of a plug-pack type mains power supply and a connection to an external antenna.
  • Provides a serial control interface and audio input and outputs by way of the transceiver’s control and connection interface.

How it Works

RemoteSAT has been designed to be used in fixed site, maritime and emergency service applications where permanently installed reliable communications services are required. The RemoteSAT device enables a Beam TrackALERT RST030 alert tracking interface to be connected directly to the terminal and there is also a purpose built back-up battery available that can provide up to 24 hours standby time for mission critical applications.

Sea

  • Crew calling
  • Captain and crew calling from one unit
  • Connect to ship’s PBX
  • Reduced cost shore to ship communications
  • Installed as part of an SSAS system
  • Installed as part of a tracking system

Land

  • Connection to PBX system
  • Inbuilt satellite communications
  • Emergency back-up
  • Remote work site
  • Roadhouse
  • Interim Phone Service
  • Transport application where cordless handset required

Air

  • Aircraft in which cordless or standard telephone handsets are required for specific installations

Technical Specifications & Features

  • Supports standard phone equipment
  • Connect to PABX
  • Compact intelligent handset
  • Uses intelligent handset
  • SMS/SMSMO from terminal
  • Supports SMS over POTS
  • SSAS compatible
  • Tracking and monitoring capable
  • Intelligent processor and interface
  • Phone number processing
  • Line reversal for payphone use
  • Auto-dial and speed dial options
  • Secure SIM card enclosure
  • Local and remote configuration
  • External ringer available
  • Supports back-up battery
  • Incorporates call logging
  • Fully certified against corrosion/vibration
  • Easy to install



Power Specifications

 Power input voltage11 – 32 V DC
Power consumption (AMPS)12 VDC24 VDC
Stand by0.350.16
Transmit0.510.25
Stand by – incl handset0.470.22
Transmit – incl handset0.590.29



Environmental Specifications

Degrees °CDegrees °F
Operating Range-15 to +55+5 to +131
Storage-30 to +70-22 to +158
Humidity93% non condensing
Humidity2Hz – 13.2Hz and 13.2Hz – 100Hz
Humidity40°C with 90%-95% relative humidity after 2h salt spray



Connectors / Interfaces / LEDs

  • Intelligent handset
  • RJ45 DPL BUS
  • Telephone/POTS
  • RJ-11 2-wire / TN12 or 600 ohm
  • Data port
  • RS232 serial interface
  • RS232 serial interface power
  • 2 Pin screw type



LED/Display

  • Power: Green
  • Signal: 3 Colour
  • Call: Yellow
  • Voicemail: Green



Physical Specifications

Unit onlyPacked
Dimensions – mm225 x 271 x 45400 x 325 x 90
Dimensions – inches8.8 x 10.6 x 1.215.7 x 12.8 x 3.5
Weight – kg2.253.25
Weight – lb4.97.1



Certifications

  • IEC60945
  • Germanischer Lloyd
  • American Bureau of Shipping
  • Electrical safety
  • EMC compliance
  • C tick
  • CE compliance



Kit Contents

  • RST100 Main terminal
  • Mounting brackets
  • AC 110/240V plug pack
  • DC 1.5m power cable
  • Data cable
  • User and installation manual
  • CD – Beam management system, AT commands, manuals
